SOLIS S5 Series User Manual

User Manual
3. LOTO the AC breaker disconnect to ensure it does not close unexpectedly.
4. Remove the 4 screws on the inverter junction box and remove the junction box
cover. (See figure 3.27)

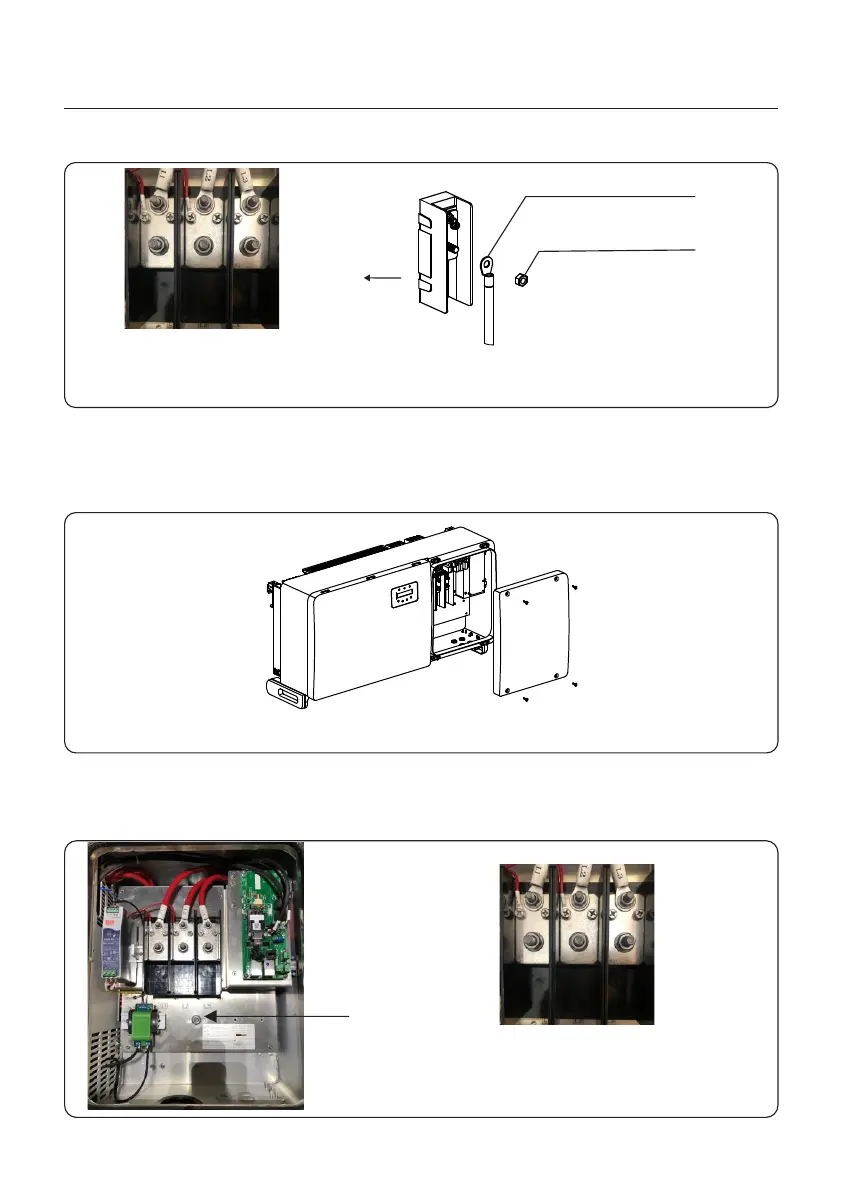

Figure 3.26 AC Terminal Connection
Figure 3.27 Remove the junction box cover
5. Insert the cable through the nut, sheath and AC terminal cover. If using conduit, remove
plastic nut to expose hole for conduit connection. Connect the cable to the terminal block.
Tighten the nuts on the terminal block to 17-21 ft-lbs. (See figure 3.28)
Figure 3.28 wiring
Copper terminal of cable
nut
3. Installation
28
L1 L2 L3
PE
L1 L2 L3

SOLIS S5 Series Specifications

General

Number of MPPTs	2
Output Voltage	230 V
Frequency	50/60 Hz
Max. AC Output Power	5000W
Operating Temperature Range	-25°C to +60°C
Rated AC Output Power	2.5 kW / 3 kW / 3.6 kW / 4 kW / 5 kW / 6 kW
Max. AC Output Current	21.7A
Cooling Method	Natural Convection
Humidity	0~100 %
Model	S5 Series
