User Manual

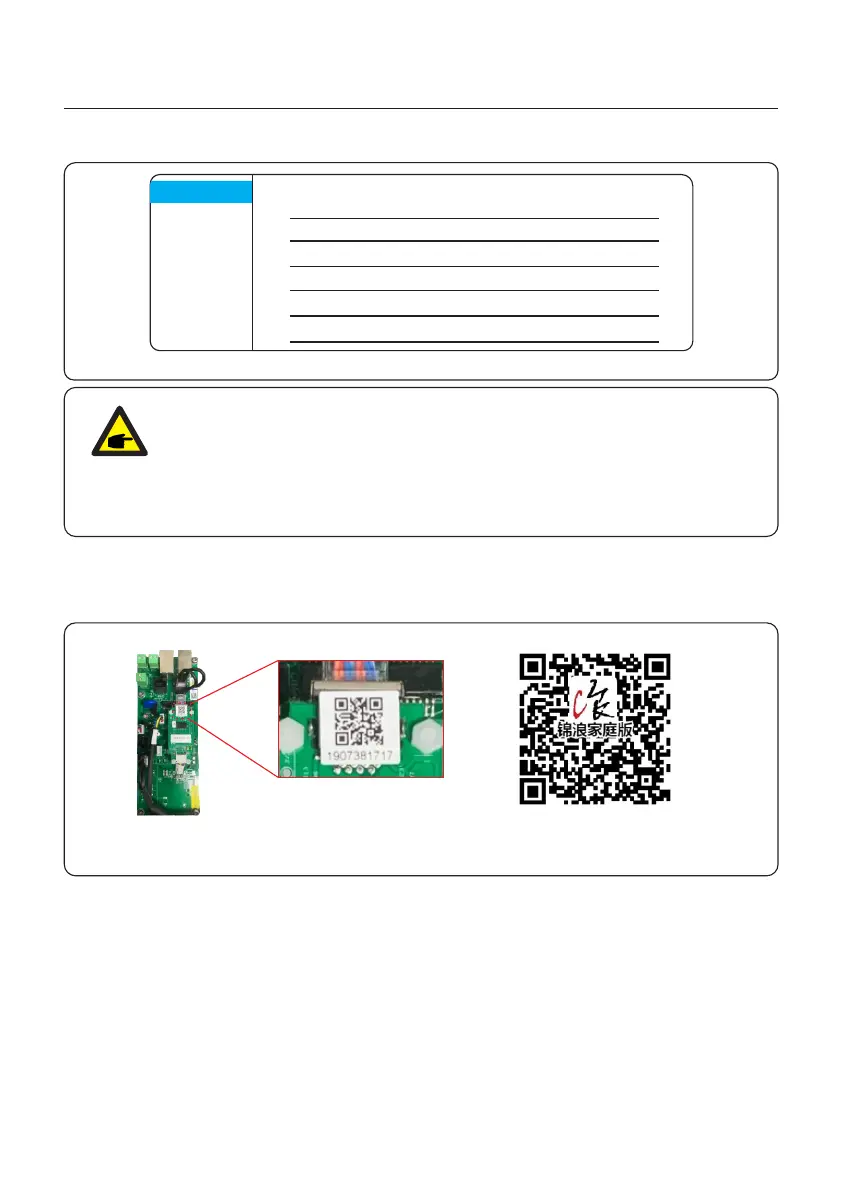

Figure 4.9
System
Work mode
Network
Manual
Restart
Reset
Upgrade
Device information
Type
SN
Firmware version
Current tiom (Time zone)
Embedded Ethernet
1909583738
ME-121001-V1.0.6(20200612800)
Fri Nov 06 2020 16:14:31 GMT+0800
Working time 116 Second
0
Error
NOTE Laptop IP Configuration
The laptop must be manually configured to set internal IP address to
one in scope of the LAN module in the inverter.
The process will vary depending on your operating system.
Consult the documentation for your operating system to configure a static
IP address for the laptop. Suggested IP address is 10.10.100.253.
Figure 4.10
1. Monitoring Platform Solis monitoring only(DHCP)
Connect in daisy chain configuration see Figure 4.8. Use the SN/QR code on the board to
register the system on Solis monitoring website or APP. See APP for details.
2. Monitoring Platform Solis monitoring only(Static IP)
1. Connect laptop directly to Ethernet module with Ethernet cable.
2. Configure laptop IP address and navigate to 10.10.100.254 via web browser.
Enter username and password (admin,admin).
3. Select Network from left menu.
4. Select Use IP address below radio button.
Enter IP address, subnet mask and default gateway. Click Save.
5. Confirm by changing laptop to new IP address in range of inverter IP address and
navigate to new inverter IP address.
4. Comm. & Monitoring
33
