SOLIS S5 Series User Manual

User Manual
Default Settings for Rule21 Standards:
Rated 480V Grid
V1:less than Vstart
V2 (Vstart): (221-304V) Default 293V
V3 (Vstop): (277-332V) Default 304V
V4: larger than Vstop
P1:100% P2:100% P3: 0% P4:0%
3. Volt-Var
Description: Inverter will change the reactive output power based on voltage change.
Q1,cap
Q2=Q3=0
Q4,ind
V1 V2 Vnom V3 V4

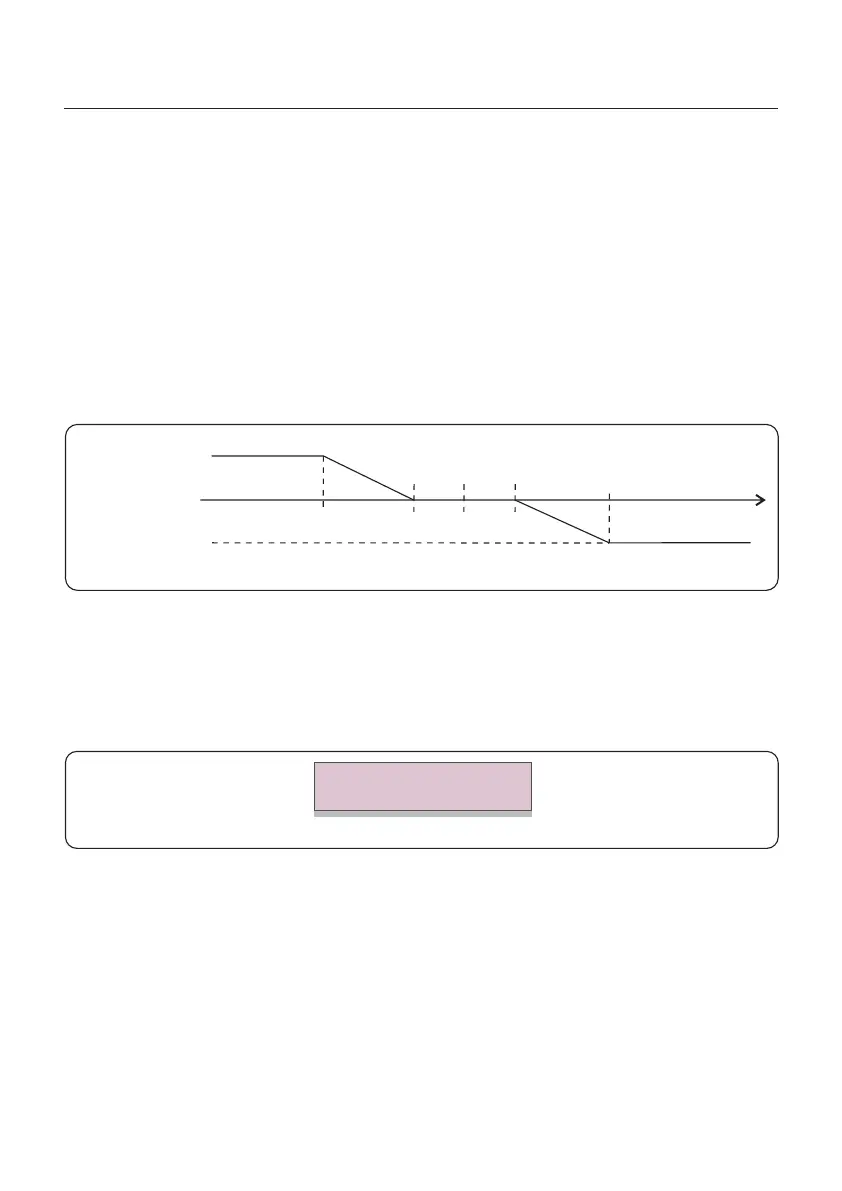

Figure 6.28 Volt-VAR curve for Q(V)
Default Settings for Rule21 Standard:
Q1: (0-60%) Default +30% Q4: (-60%-0%) Default -30%
Rated 480V Grid
V1:(221-277V) Default 254V V2: (221-304V) Default 268V
V3:(277-332V) Default 286V V4: (277-332V) Default 296V
Figure 6.29 Volt-VAR
Voltage1: 254V
Voltage2: 268V
4.Fixed-PF
Description: Inverter will output power with fixed power factor.
Setting Range: -0.8 to +0.8
Default value is PF = 1
6. Normal operation
56

SOLIS S5 Series Specifications

General

Number of MPPTs	2
Output Voltage	230 V
Frequency	50/60 Hz
Max. AC Output Power	5000W
Operating Temperature Range	-25°C to +60°C
Rated AC Output Power	2.5 kW / 3 kW / 3.6 kW / 4 kW / 5 kW / 6 kW
Max. AC Output Current	21.7A
Cooling Method	Natural Convection
Humidity	0~100 %
Model	S5 Series
