32

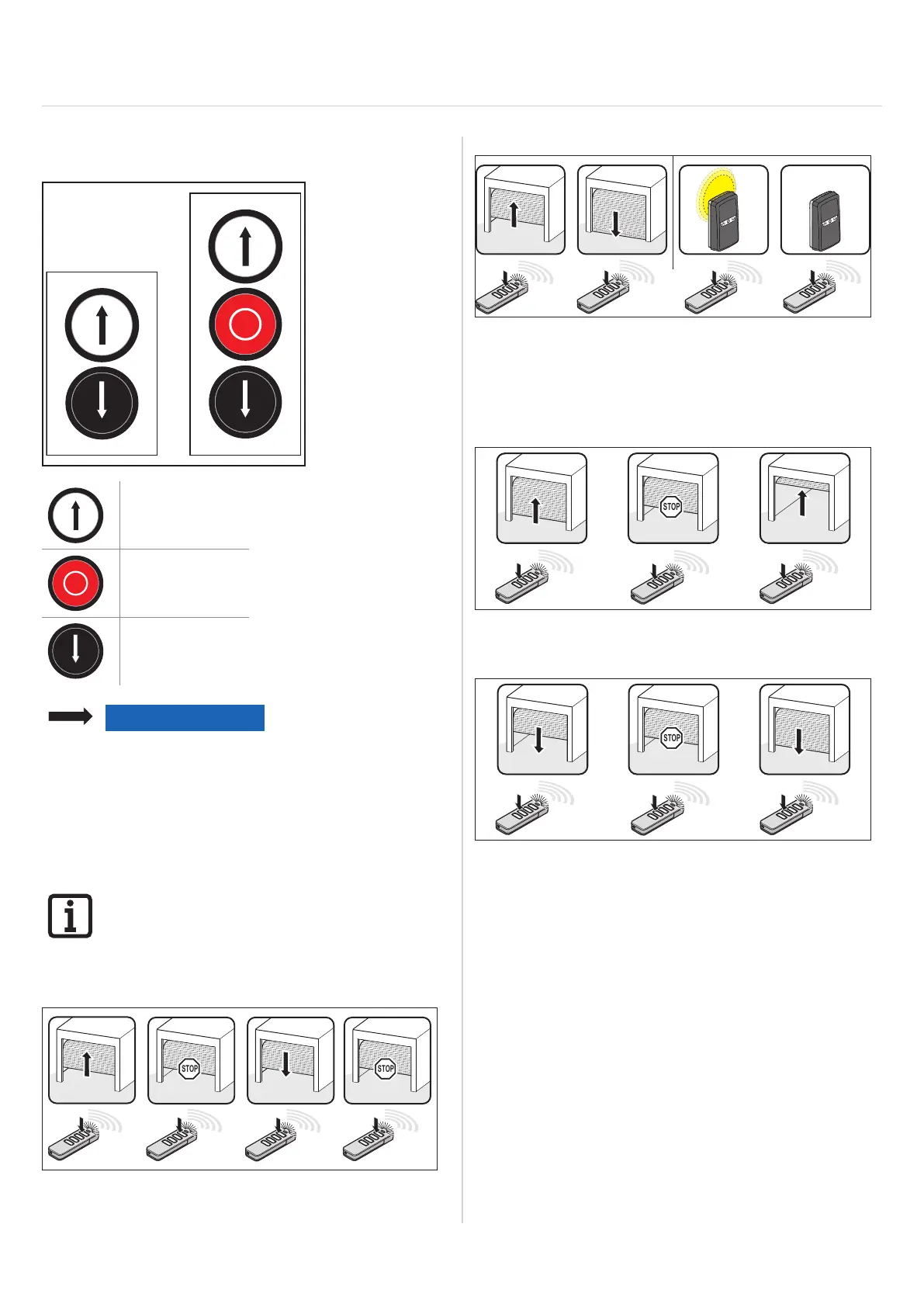

10.3 Operation with external button
(2-way/3-way)
OPEN button
Stop button
CLOSE button
NOTE
The door is stopped immediately if any
button is pressed during door movement
(panic function)*
* Does not apply to automatic closing
10.4 Operation using handheld
transmitter
INFORMATION
All functions can be programmed for
all buttons, see “Programming the
transmitter” on page 26.
Button 1 (CH 1)
STOP STOP
Fig. Pulse sequence for pulse mode
10. Operation
Button 2 (CH 2)
Fig. Pulse sequence for partial opening or lighting
Partial opening: DIP switch 2 ON
Lighting function: DIP switch 2 OFF
Button 3 (CH 3)
STOP
Fig. Defined OPEN
Button 4 (CH 4)
STOP
Fig. Defined CLOSE
