SN8P2501D
8-Bit Micro-Controller
SONiX TECHNOLOGY CO., LTD Page 86 Version 1.5

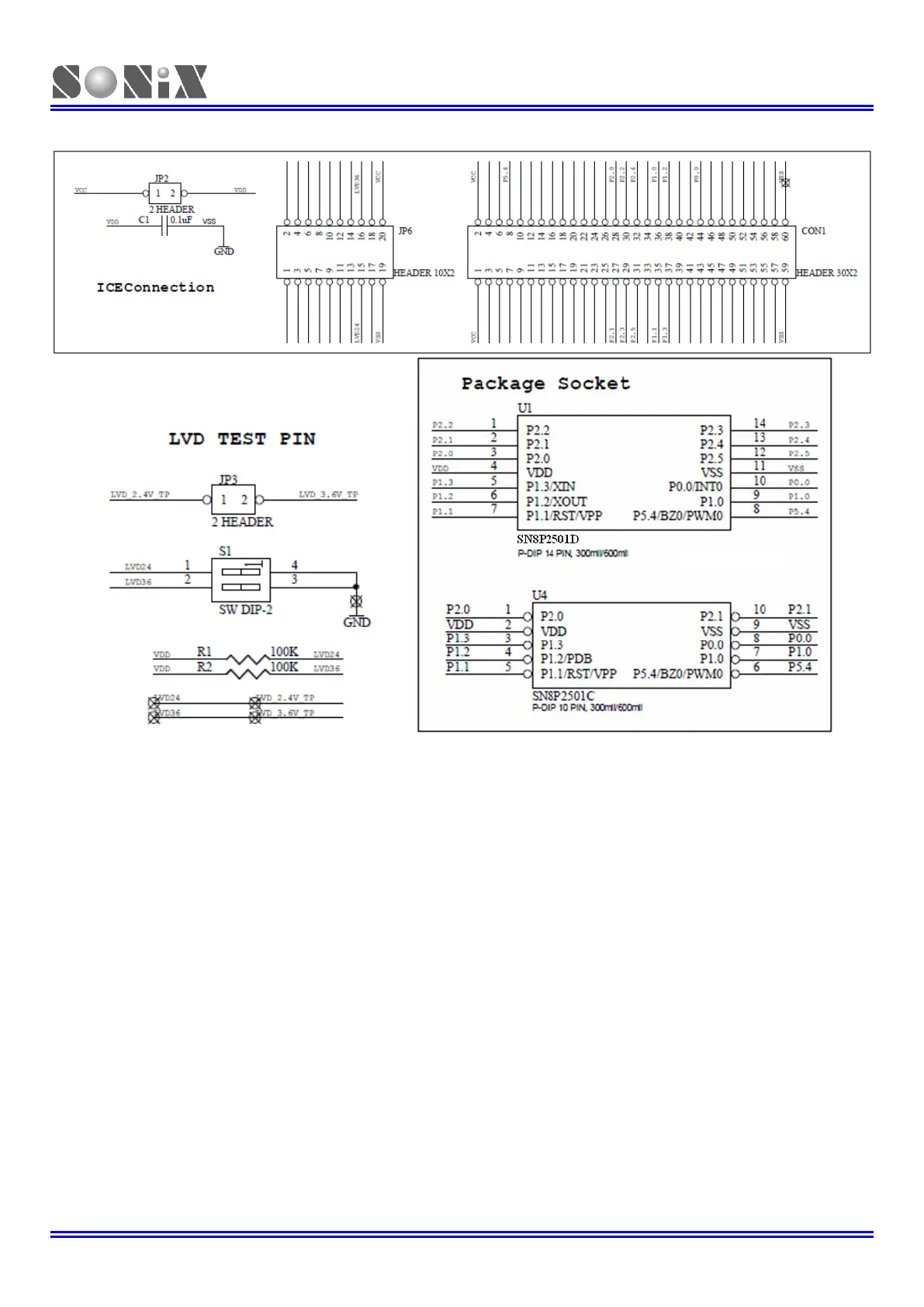

SN8P2501A/B/C EV-KIT schematic:
11.2 ICE AND EV-KIT APPLICATION NOTIC
1. SN8ICE2K Plus II power switch must be turned off before you connect the SN8P2501D/2501A/B/C EV-KIT to
SN8ICE2K Plus II.
2. Connect EV-KIT JP6/CON1 to ICE JP3/CON1.
3. Turn on SN8ICE2K Plus 2 power switch to start emulation.
4. It is necessary to connect 16MHz crystal in ICE for IHRC_16M mode emulation. SN8ICE2K Plus II doesn’t
support over 8-mips instruction cycle, but real chip does.
