SONIX SN8P2501D - Sop 8 Pin

SN8P2501D
8-Bit Micro-Controller
SONiX TECHNOLOGY CO., LTD Page 95 Version 1.5

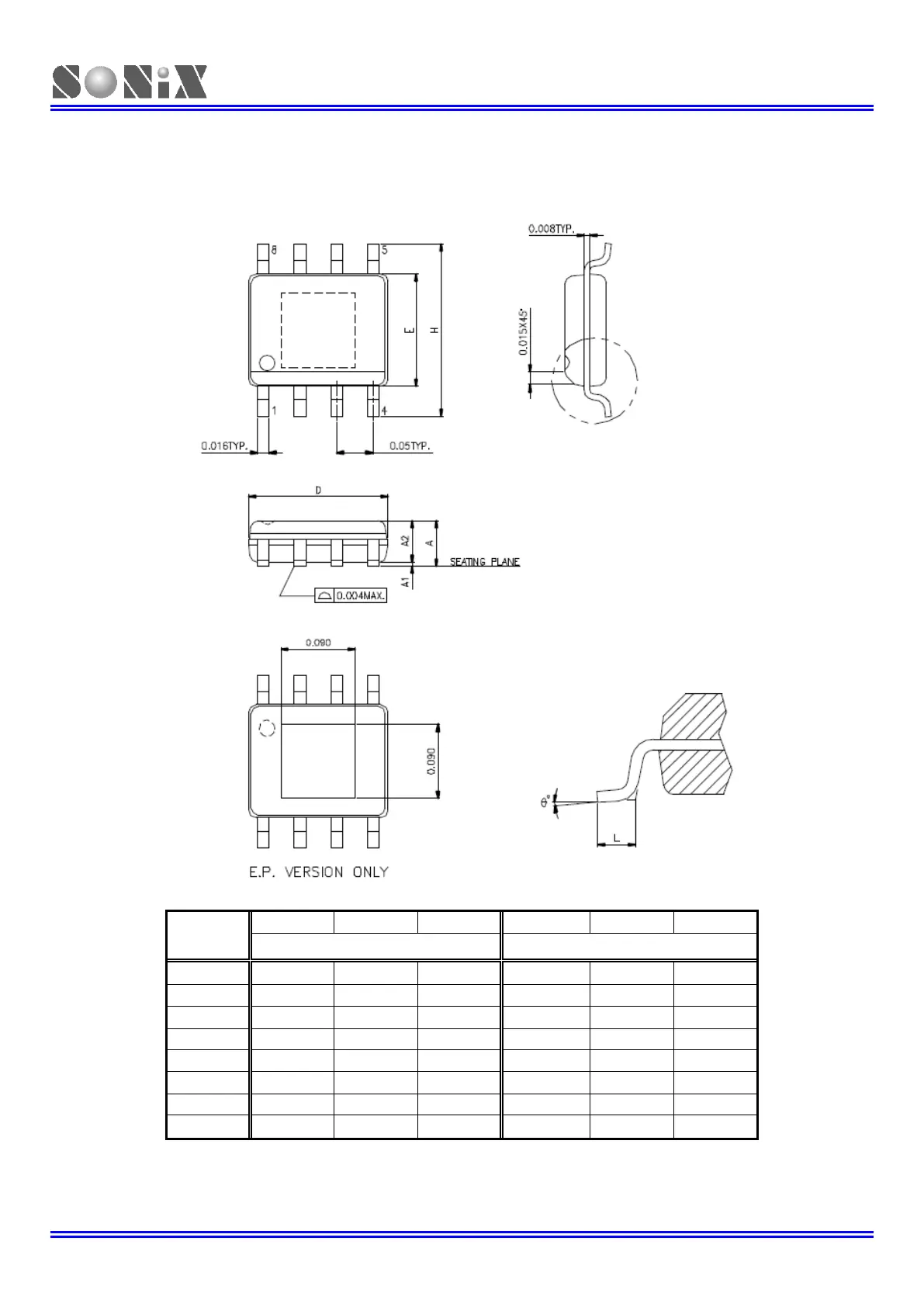

14.5 SOP 8 PIN
SYMBOLS
MIN
NOR
MAX
MIN
NOR
MAX
(inch)
(mm)
A
0.053
-
0.069
1.3462
1.7526
A1
0.004
-
0.010
0.1016
-
0.254
A2
-
-
0.059
-
-
1.4986
D
0.189
-
0.196
4.8006
-
4.9784
E
0.150
-
0.157
3.81
-
3.9878
H
0.228
-
0.244
5.7912
-
6.1976
L
0.016
-
0.050
0.4064
-
1.27
θ°
0°
-
8°
0°
-
8°
