6
Decoder Adaptor Priority
Overview
The table on the right shows which decoder adaptor
will be selected preferentially when more than one
decoder adaptor which can accept the NTSC or PAL
signal format have been installed in the monitor.
For example, when a BKM-24N and a BKM-27T are
installed and an NTSC signal is selected, the NTSC
signal connected to the BKM-24N’s input connectors
and the NTSC signal connected to the BKM-27T’s
input connectors are both processed by the decoder on
the BKM-24N.
Input signal type
and format
Decoder adaptor
BKM-
24N
BKM-
25P
BKM-
27T
BKM-
21D
Composite
signal
Y/C
signal

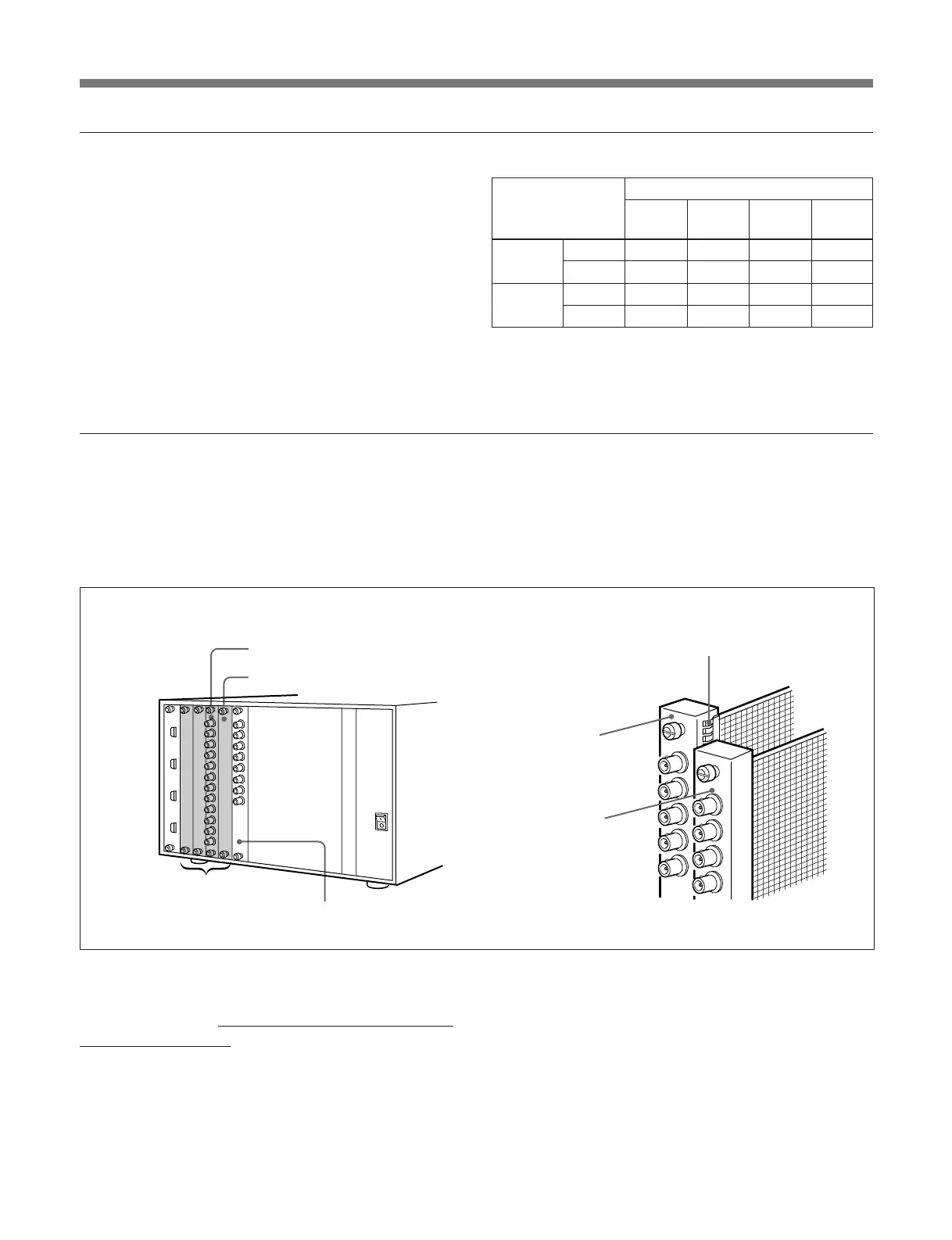

Fig.1
Input adaptor
Cover plate
Input option slots
Analog input connectors board
Fig. 2
Radiation shield
BKM-20D/21D
Input adaptor, etc
Note on using the BKM-20D/21D
When one of the input option slots on the rear of the
monitor has a BKM-20D/21D SDI Decoder Adaptor
(option) installed, if the slot to the right has another
adaptor or the analog input connectors board installed,
or a cover plate fitted (see Fig. 1), the radiation shield
(see Fig. 2) of the BKM-20D/21D may be damaged or
detached.
NTSC 1 3 2
PAL 1 3 2
NTSC 1 2
PAL 1 2
When installing adaptors, moving the analog input
connectors board, or fitting a cover plate over an
unused slot, always
fit the BKM-20D/21D as the last
step of the operation. If a BKM-20D/21D is already
installed, remove it temporarily while carrying out the
other operations, then reinstall it last.
Numbers in the table show priority.
