3. Before Replacement, Check or Adjustment
3-1. Phase Adjustment

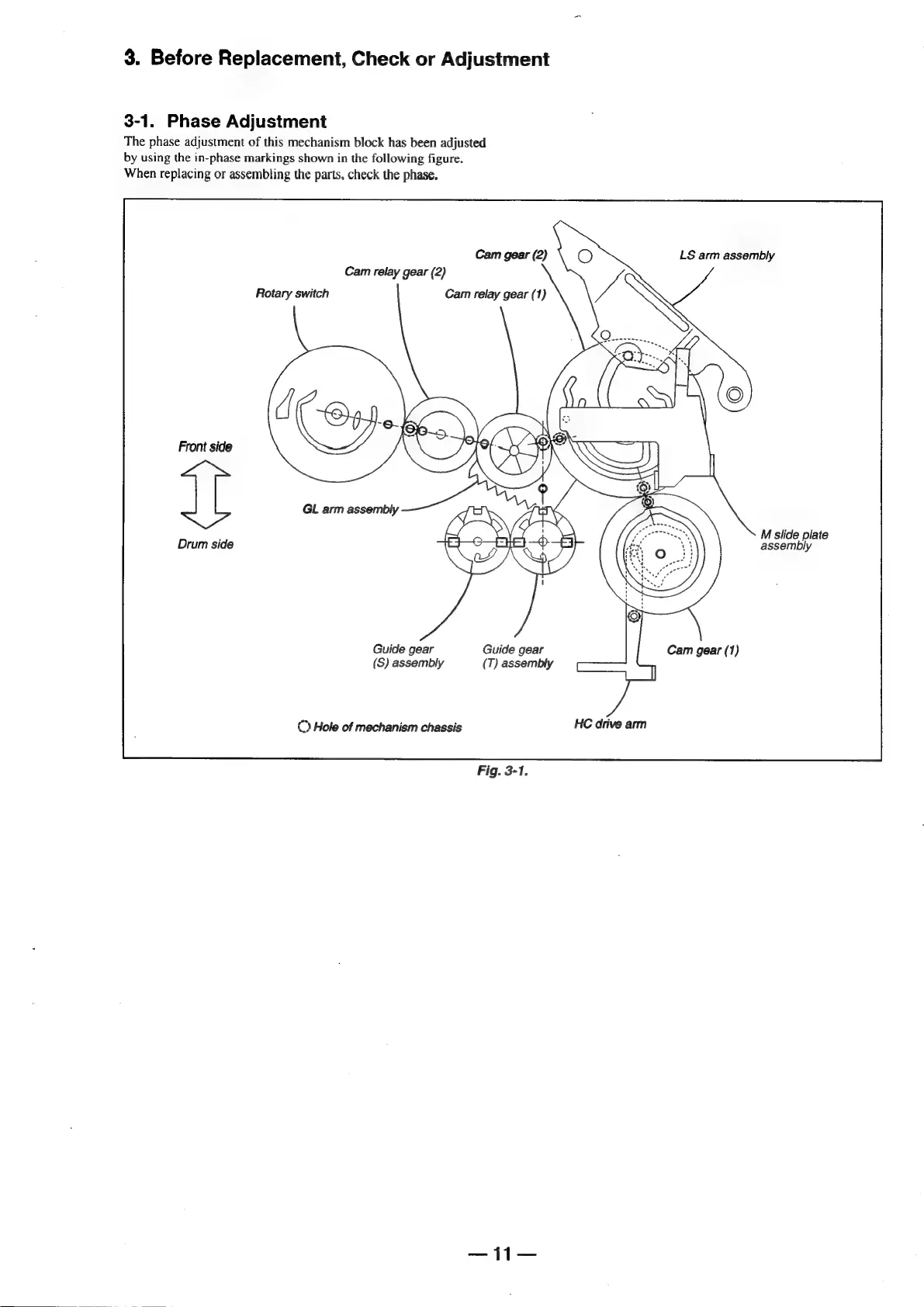

The phase adjustment of this mechanism block has been adjusted
by using the in-phase markings shown in the following figure.
When replacing or assembling the parts, check the phase.
Cam gear (2) LS arm assembly
Cam relay gear (2)
Rotary switch Cam relay gear (1)
Front side
GL arm assembly J nN
Drum
side
=e.
.
—
eles
al
Guide gear Guide gear Cam gear (1)
(S) assembly (T) assembly
©) Hole of mechanism chassis
Fig. 3-1.
