Sony Digital8 M2000 - Mechanical Chassis Block Assembly-]

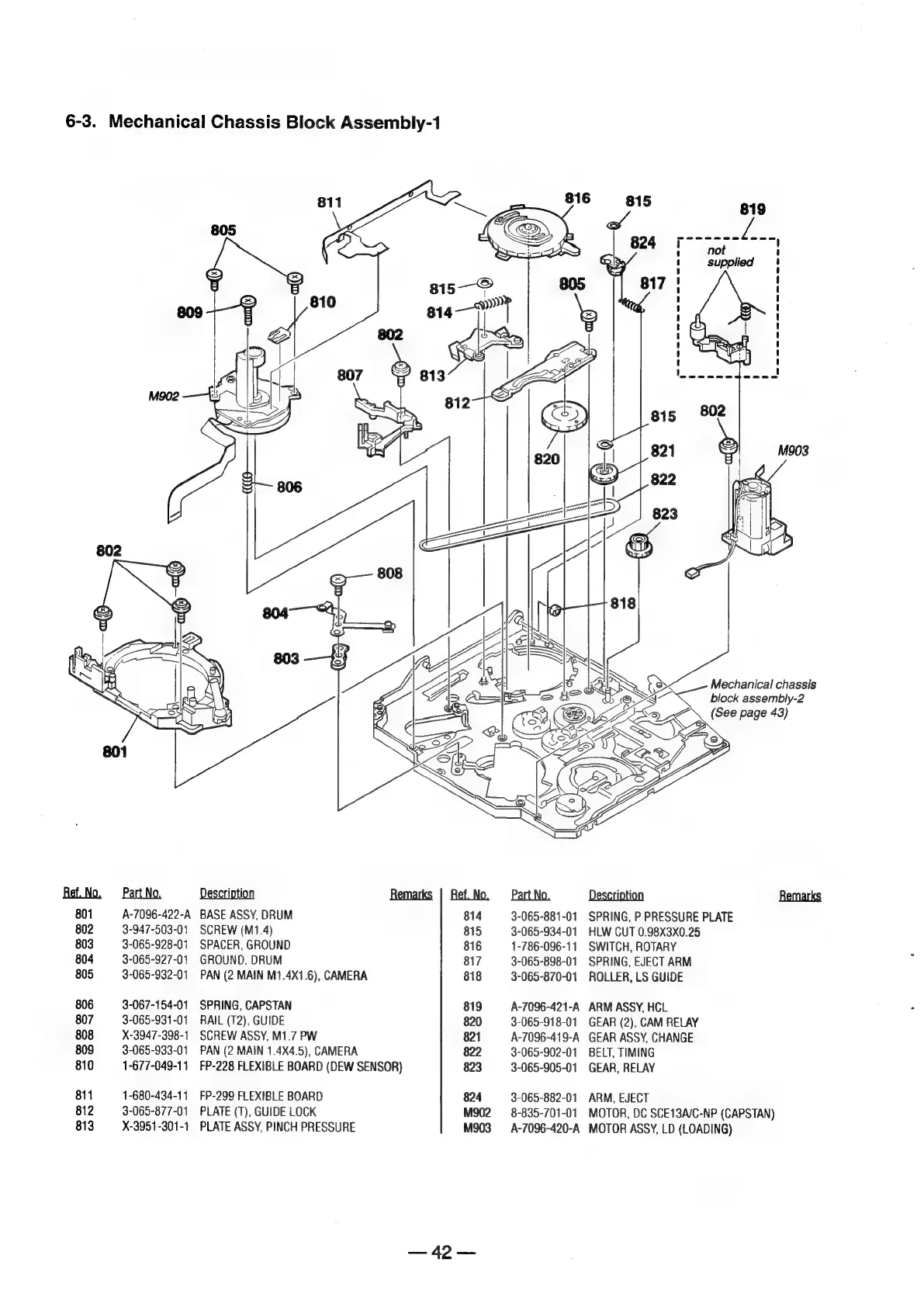

6-3. Mechanical Chassis Block Assembly-1
801
802
803
804
805
806
807
808
809
810
811
812
813
Part No.
A-7096-422-A
3-947-503-01
3-065-928-01
3-065-927-01
3-065-932-01
3-067-154-01
3-065-931-01
X-3947-398-1
3-065-933-01
1-677-049-1141
1-680-434-11
3-065-877-01
X-3951-301-1
Description Remarks | Ref. No,
BASE ASSY, DRUM 814
SCREW (M1.4) 815
SPACER, GROUND 816
GROUND, DRUM 817
PAN (2 MAIN M1.4X1.6), CAMERA 818
SPRING, CAPSTAN 819
RAIL (12), GUIDE 820
SCREW ASSY, M1.7 PW 821
PAN (2 MAIN 1.4X4.5), CAMERA 822
FP-228 FLEXIBLE BOARD (DEW SENSOR) 823
FP-299 FLEXIBLE BOARD 824
PLATE (T), GUIDE LOCK M902
PLATE ASSY, PINCH PRESSURE M903
— Ao
Part No.
3-065-881-01
3-065-934-01
1-786-096-11
3-065-898-01
3-065-870-01
A-7096-421-A
3-065-918-01
A-7096-419-A
3-065-902-01
3-065-905-01
3-065-882-01
8-835-701-01
A-7096-420-A
Mechanical chassis
block assembly-2
(See page 43)
Description
SPRING, P PRESSURE PLATE
HLW CUT 0.98X3X0.25
SWITCH, ROTARY
SPRING, EJECT ARM
ROLLER, LS GUIDE
ARM ASSY, HCL
GEAR (2), CAM RELAY
GEAR ASSY, CHANGE
BELT, TIMING
GEAR, RELAY
ARM, EJECT
MOTOR, DC SCE13A/C-NP (CAPSTAN)
MOTOR ASSY, LD (LOADING)
