Sony Digital8 M2000 - Exploded Views; Cassette Compartment Assy, Drum Assy

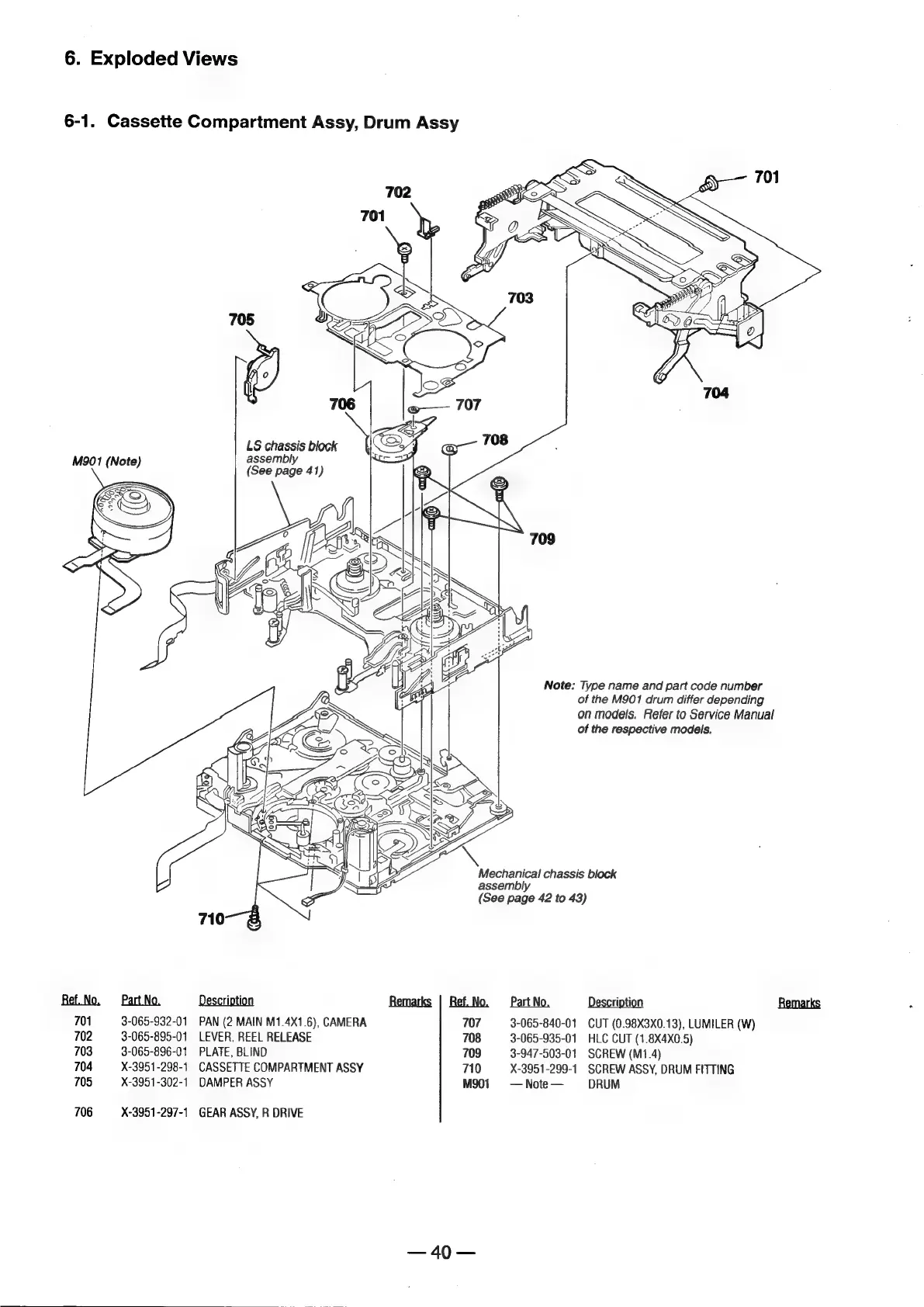

6. Exploded Views
6-1. Cassette Compartment Assy, Drum Assy
Ne
7
Ls Cieses block
assembly
M901
(Note)
(See
page
41)
SFO)
S
SAS
>
Note: Type name and part code number
of the M901 drum differ depending
on models. Refer to Service Manual
of the respective models.
Mechanical chassis block
assembly
(See page 42 to 43)
Ref.No, Part No. Description Remarks | Ref.No. PartNo. Description Remarks
701
3-065-932-01
PAN
(2
MAIN
M1.4X1.6),
CAMERA
707
3-065-840-01
CUT
(0.98X3X0.13),
LUMILER
(W)
702 3-065-895-01 LEVER, REEL RELEASE 708 3-065-935-01 HLC CUT (1.8X4X0.5)
703 3-065-896-01 PLATE, BLIND 709 3-947-503-01 SCREW (M1.4)
704
X-3951-298-1
CASSETTE
COMPARTMENT
ASSY
710
X-3951-299-1
SCREW
ASSY,
DRUM
FITTING
705
X-3951-302-1
DAMPER ASSY
M901
—Note—
DRUM
706 X-3951-297-1 GEAR ASSY, R DRIVE
—49—
