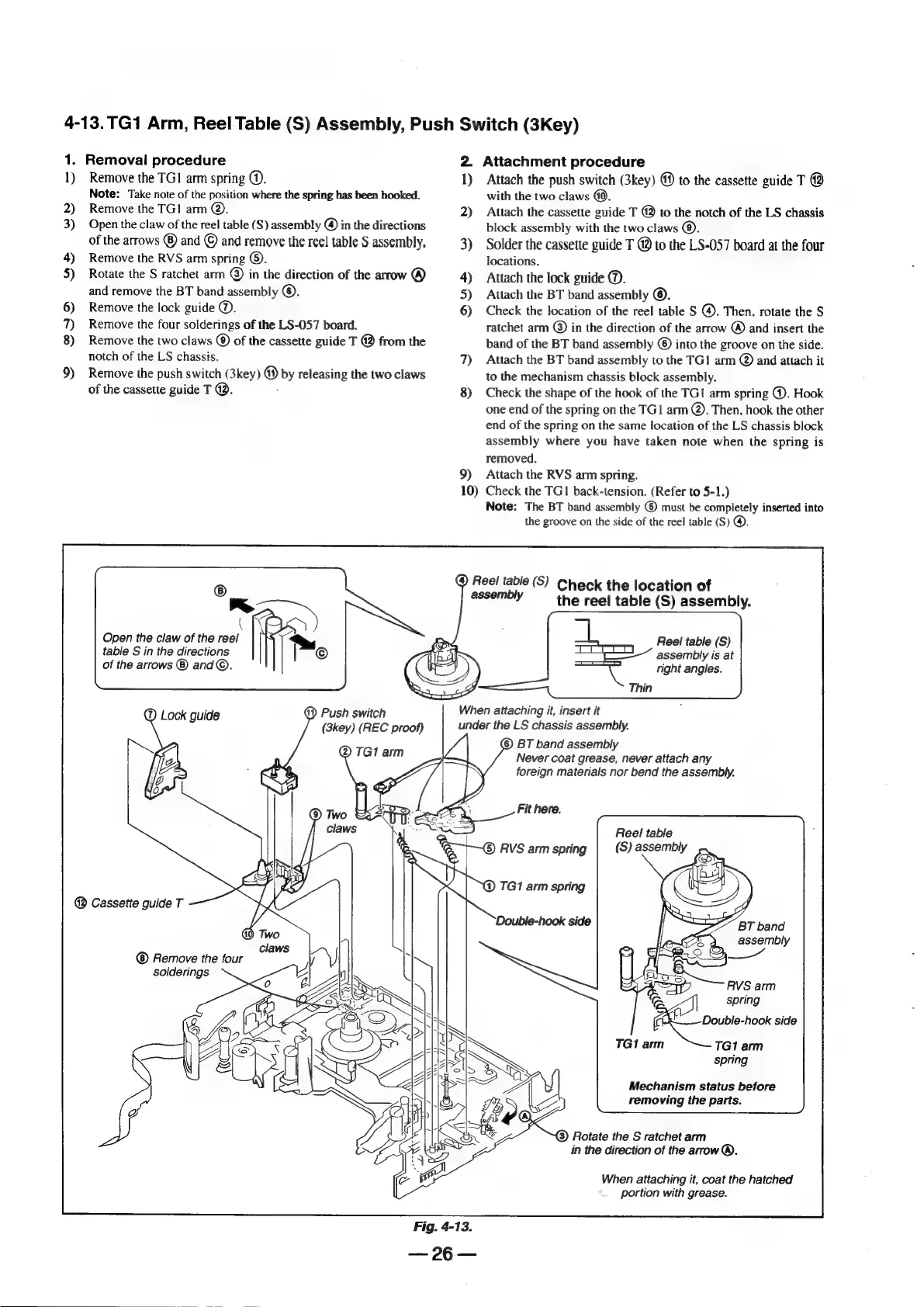

4-13.TG1
Arm,
Reel
Table
(S)
Assembly,
Push
Switch
(3Key)
1.
1)
2)
3)
4)
5)
6)
)
8)
9)
Removal
procedure
Remove
the
TG!
arm
spring
@.
Note:
Take
note
of
the
position
where
the
spring
has
been
hooked.
Remove
the
TG1
arm
@.
Open
the
claw
of
the
reel
table
(S)
assembly
@
in
the
directions
of
the
arrows
®
and
©
and
remove
the
reel
table
S
assembly,
Remove
the
RVS
arm
spring
©.
Rotate
the
S
ratchet
arm
@
in
the
direction
of
the
arrow
®
and
remove
the
BT
band
assembly
©.
Remove
the
lock
guide
@.
Remove
the
four
solderings
of
the
LS-057
board.
Remove
the
two
claws
®
of
the
cassette
guide
T
@
from
the
notch
of
the
LS
chassis.
Remove
the
push
switch
(3key)
@®
by
releasing
the
two
claws
of
the
cassette
guide
T
@.
:
Open
the
claw
of
the
reel
table
S
in
the
directions
of
the
arrows
®
and
©.
@
Cassette
guide
T
Remove
the
four
solderings
2.
Attachment
procedure
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
Attach
the
push
switch
(3key)
@
to
the
cassette
guide
T
@
with
the
two
claws
(0.
Attach
the
cassette
guide
T
@
to
the
notch
of
the
LS
chassis
block
assembly
with
the
two
claws
©.
Solder
the
cassette
guide
T
(2
to
the
LS-057
board
at
the
four
locations.
Attach
the
lock
guide
@).
Attach
the
BT
band
assembly
©.
Check
the
location
of
the
reel
table
S
@.
Then,
rotate
the
S
ratchet
arm
@
in
the
direction
of
the
arrow
®
and
insert
the
band
of
the
BT
band
assembly
©
into
the
groove
on
the
side.
Attach
the
BT
band
assembly
to
the
TG1
arm
@
and
attach
it
to
the
mechanism
chassis
block
assembly.
Check
the
shape
of
the
hook
of
the
TG1
arm
spring
@.
Hook
one
end
of
the
spring
on
the
TG1
arm
@).
Then,
hook
the
other
end
of
the
spring
on
the
same
location
of
the
LS
chassis
block
assembly
where
you
have
taken
note
when
the
spring
is
removed.
Attach
the
RVS
arm
spring.
Check
the
TG1
back-tension.
(Refer
to
5-1.)
Note:
The
BT
band
assembly
©
must
be
completely
inserted
into
the
groove
on
the
side
of
the
reel
table
(S)
@.
®
Reel
cy
(S)
Check
the
location
of
core
the
reel
table
(S)
assembly.
Reel
table
(S)
assembly
is
at
right
angles.
Thin
When
attaching
it,
insert
it
under
the
LS
chassis
assembly.
(6)
BT
band
assembly
Never
coat
grease,
never
attach
any
foreign
materials
nor
bend
the
assembly.
Fit
here.
Ree!
table
RVS
arm
spring
|
(S)
assembly
TG1
arm
spring
‘Double-hook
side
assembly
TY
RVS
arm
C
spring
Double-hook
side
Mechanism
status
before
removing
the
parts.
in
the
direction
of
the
arrow®.
When
attaching
it,
coat
the
hatched
portion
with
grease.
