Sony Digital8 M2000 - Mechanical Chassis Block Assembly-2

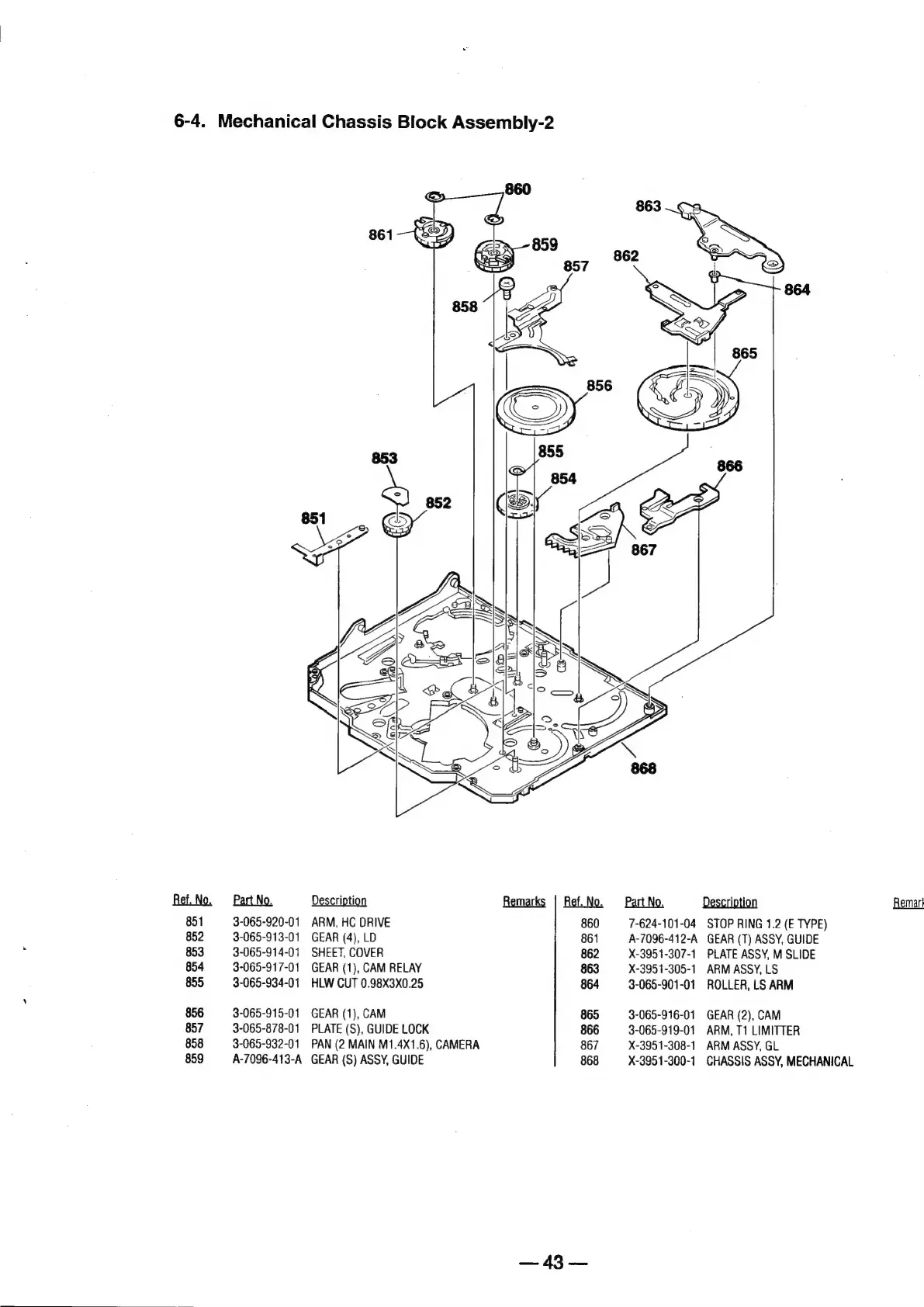

6-4. Mechanical Chassis Block Assembly-2
Ref. No. Part No.
851 —-3-065-920-01
852 —3-065-913-01
853 3-065-914-01
854 = 3-065-917-01
855 3-065-934-01
856 = -3-065-915-01
857 = 3-065-878-01
858 —3-065-932-01
859 A-7096-413-A
Description
ARM, HC DRIVE
GEAR (4), LD
SHEET, COVER
GEAR (1), CAM RELAY
HLW CUT 0.98X3X0.25
GEAR (1), CAM
PLATE (S), GUIDE LOCK
PAN (2 MAIN M1.4X1.6), CAMERA
GEAR (S) ASSY, GUIDE
marks | Ref.No. PartNo, Description Remart
860 7-624-101-04 STOP RING 1.2 (E TYPE)
861 A-7096-412-A GEAR (T) ASSY, GUIDE
862 X-3951-307-1 PLATE ASSY, M SLIDE
863 X-3951-305-1 ARM ASSY, LS
864 3-065-901-01 ROLLER, LS ARM
865 3-065-916-01 GEAR (2), CAM
866 3-065-919-01 ARM, T1 LIMITTER
867 X-3951-308-1 ARM ASSY, GL
868 X-3951-300-1 CHASSIS ASSY, MECHANICAL
—43—
