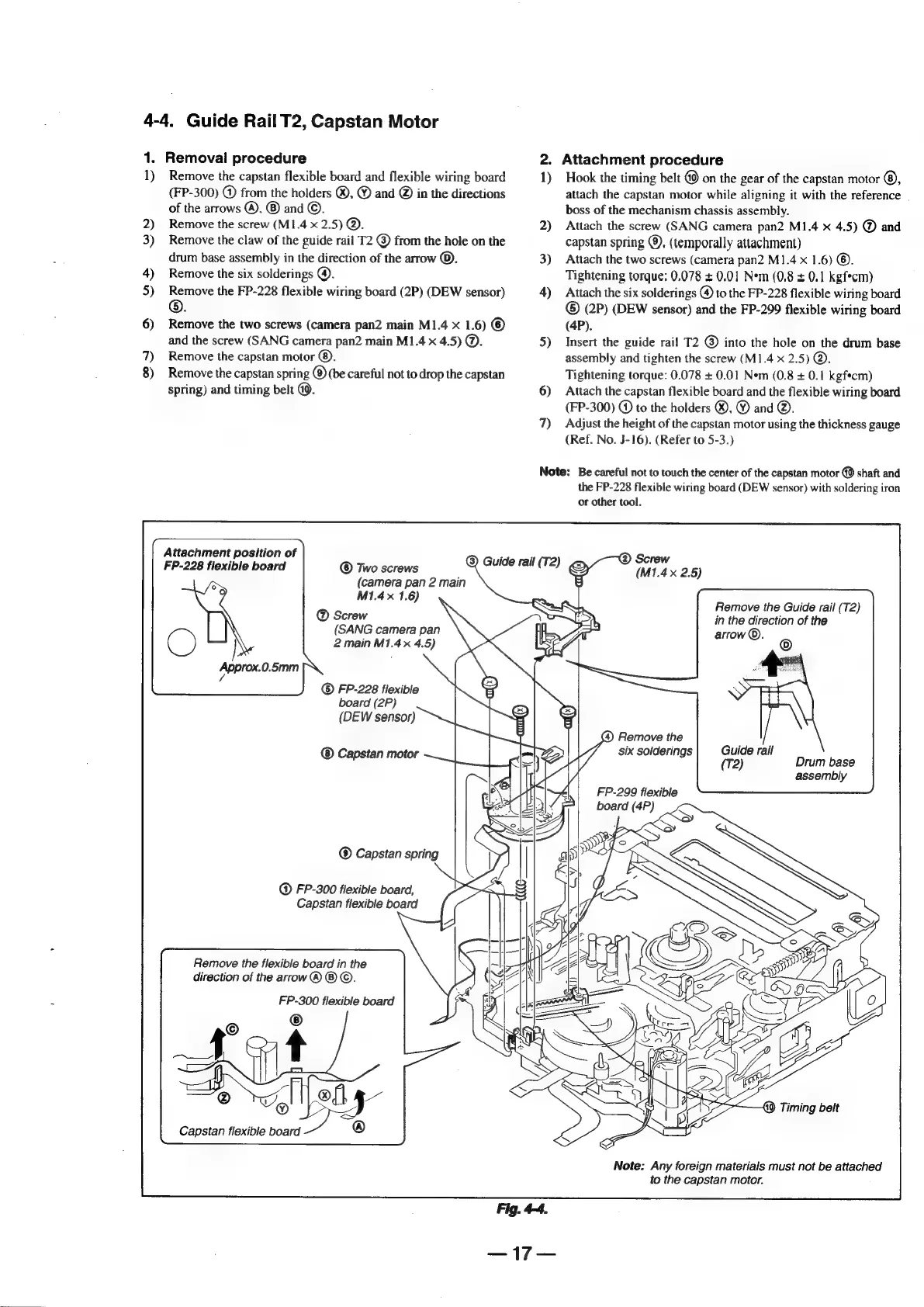

4-4.
Guide
Rail
T2,
Capstan
Motor
1.
1)
2)
3)
4)
5)
6)
7)
8)
Removal
procedure
Remove
the
capstan
flexible
board
and
flexible
wiring
board
(FP-300)
@
from
the
holders
®,
©
and
@
in
the
directions
of
the
arrows
@,
®
and
©.
Remove
the
screw
(M1.4
x
2.5)
@.
Remove
the
claw
of
the
guide
rail
T2
@
from
the
hole
on
the
drum
base
assembly
in
the
direction
of
the
arrow
©).
Remove
the
six
solderings
®.
Remove
the
FP-228
flexible
wiring
board
(2P)
(DEW
sensor)
©.
Remove
the
two
screws
(camera
pan2
main
M1.4
x
1.6)
©
and
the
screw
(SANG
camera
pan2
main
M1.4
x
4.5)
@.
Remove
the
capstan
motor
©.
Remove
the
capstan
spring
()
(be
careful
not
to
drop
the
capstan
spring)
and
timing
belt
@.
Attachment
position
of
FP-228
flexible
board
©
Two
screws
(camera
pan
2
main
M1.4x
1.6)
®
Screw
ia
(SANG
camera
pan
C)
2
main
M1.4
x
4.5)
Approx.
0.5mm
,
®
FP-228
flexible
board
(2P)
(DEW
sensor)
Capstan
motor
Capstan
spring
@
FP-300
flexible
board,
Capstan
flexible
board
Remove
the
flexible
board
in
the
direction
of
the
arrow
®
®
©.
FP-300
flexible
board
Capstan
flexible
board
14:
2.
Attachment
procedure
1)
2)
3)
4)
5)
6)
7)
Hook
the
timing
belt
@
on
the
gear
of
the
capstan
motor
®,
attach
the
capstan
motor
while
aligning
it
with
the
reference
boss
of
the
mechanism
chassis
assembly.
Attach
the
screw
(SANG
camera
pan2
M1.4
x
4.5)
@
and
capstan
spring
®),
(temporally
attachment)
Attach
the
two
screws
(camera
pan2
M1.4
x
1.6)
©.
Tightening
torque:
0,078
+
0.01
Nem
(0.8
+
0.1
kgf*cm)
Attach
the
six
solderings
®
to
the
FP-228
flexible
wiring
board
©
(2P)
(DEW
sensor)
and
the
FP-299
flexible
wiring
board
(4P).
Insert
the
guide
rail
T2
®
into
the
hole
on
the
drum
base
assembly
and
tighten
the
screw
(M1.4
x
2.5)
@).
Tightening
torque:
0.078
+
0.01
Nem
(0.8
+
0.1
kgfecm)
Attach
the
capstan
flexible
board
and
the
flexible
wiring
board
(FP-300)
@
to
the
holders
®),
®
and
@.
Adjust
the
height
of
the
capstan
motor
using
the
thickness
gauge
(Ref.
No.
J-16).
(Refer
to
5-3.)
Note:
Be
careful
not
to
touch
the
center
of
the
capstan
motor
@©
shaft
and
@
Guide
rail
(T2)
ee
=a)
(I:
3)
the
FP-228
flexible
wiring
board
(DEW
sensor)
with
soldering
iron
or
other
tool.
@)
Screw
(M1.4
x
2.5)
Remove
the
Guide
rail
(T2)
in
the
direction
of
the
arrow
©).
a
(4)
Remove
the
six
solderings
Guide
rail
(T2)
Drum
base
assembly
FP-299
flexible
board
(4P)
CW
WQS
(
Note:
Any
foreign
materials
must
not
be
attached
to
the
capstan
motor.
