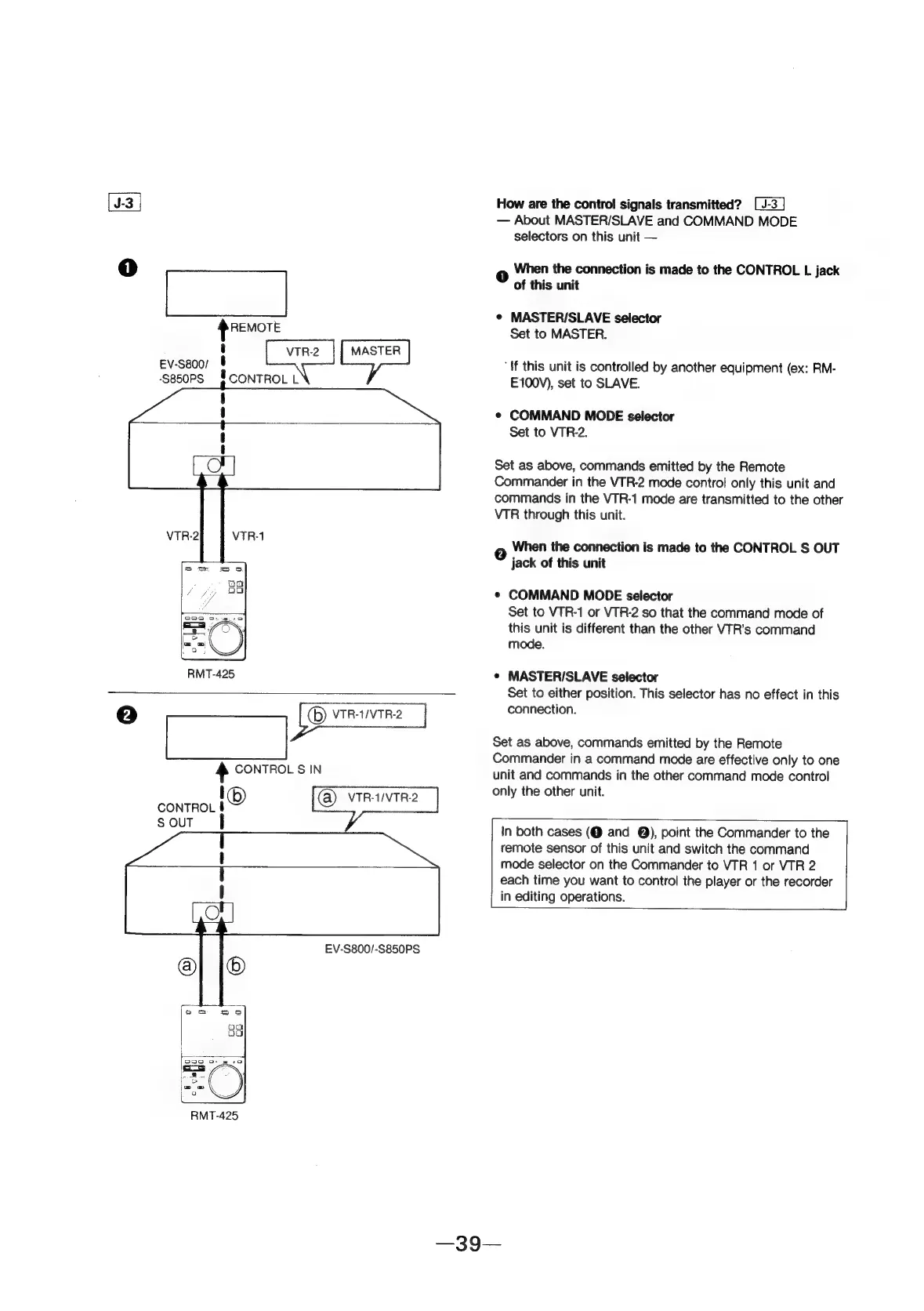

How are the control signals transmitted?
— About MASTER/SLAVE and COMMAND MODE
selectors on this unit —
° When the connection is made to the CONTROL L jack
of this unit
¢ MASTER/SLAVE selector
Set to MASTER.
“If this unit is controlled by another equipment (ex: RM-
E100V), set to SLAVE.
¢ COMMAND MODE selector
Set to VTR-2.
Set as above, commands emitted by the Remote
Commander in the VTR-2 mode control only this unit and
commands in the VTR-1 mode are transmitted to the other
VTR through this unit.
e When the connection is made to the CONTROL S OUT
jack of this unit
¢ COMMAND MODE selector
Set to VTR-1 or VTR-2 so that the command mode of
this unit is different than the other VTR’s command
mode.
© MASTER/SLAVE selector
Set to either position. This selector has no effect in this
connection.
Set as above, commands emitted by the Remote
Commander in a command mode are effective only to one
unit and commands in the other command mode control
only the other unit.
In both cases (@ and @), point the Commander to the
remote sensor of this unit and switch the command
mode selector on the Commander to VTR 1 or VIR 2
each time you want to control the player or the recorder
in editing operations.
