3636
HCD-BC150/BC250
HCD-BC150/BC250
H/P board
PANEL board
FL board
POWER SW board
TUNER board
IO board
LF board
SENSOR board
RF board
MOTOR board
SW(1) board
SW(2) board
TRANSLATION board
SPK board
MAIN board
AMP board
DMB07 board
SWITCHING REGULATOR
ENCODER board

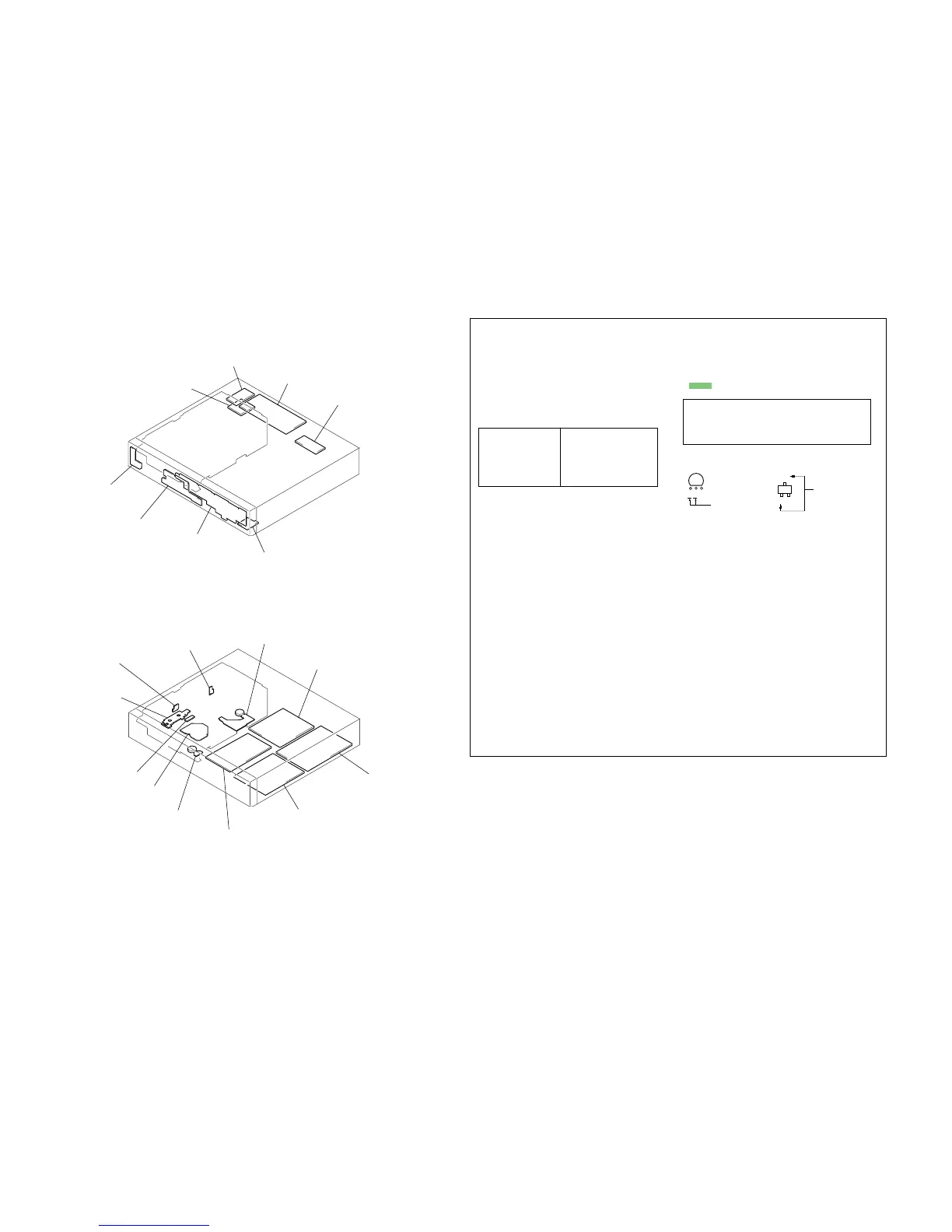

Circuit Boards Location
For Schematic Diagrams.
Note:
All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics and
tantalums.
All resistors are in and
1
/
4
W or less unless otherwise
specified.
f : internal component.
C : panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
A : B+ Line.
•Voltages and waveforms are dc with respect to ground un-
der no-signal (detuned) conditions.
RF board, DMB07 board
no mark : DVD STOP
Other board
no mark : FM
•Voltages are taken with a VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
Circled numbers refer to waveforms.
Signal path.
F : AUDIO
J : CD PLAY
c : DVD PLAY
d : TUNER
L : VIDEO
E : Y
a : CHROMA
r : COMPONENT VIDEO
q : R, G, B
•Abbreviation
AUS: Australian model.
CND : Canadian model.
E41 : 230 V AC Area in E model.
EA : Saudi Arabia model.
KR : Korea model.
MX : Mexican model.
TW : Taiwan model.
For Printed Wiring Boards.
Note:
X : parts extracted from the component side.
a : Through hole.
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Indication of transistor.
Caution:
Pattern face side: Parts on the pattern face side seen from
(SIDE A) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(SIDE B) the parts face are indicated.
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
C
B
These are omitted.
E
Q
CEB
These are omitte
d
Ver 1.3
