Sony HCD-C450 - 2-10. CLAMP MOTOR Board, Motor Assembly Disassembly; 2-11. Fitting Base (Guide) Assembly, Bracket Disassembly

12
HCD-C450

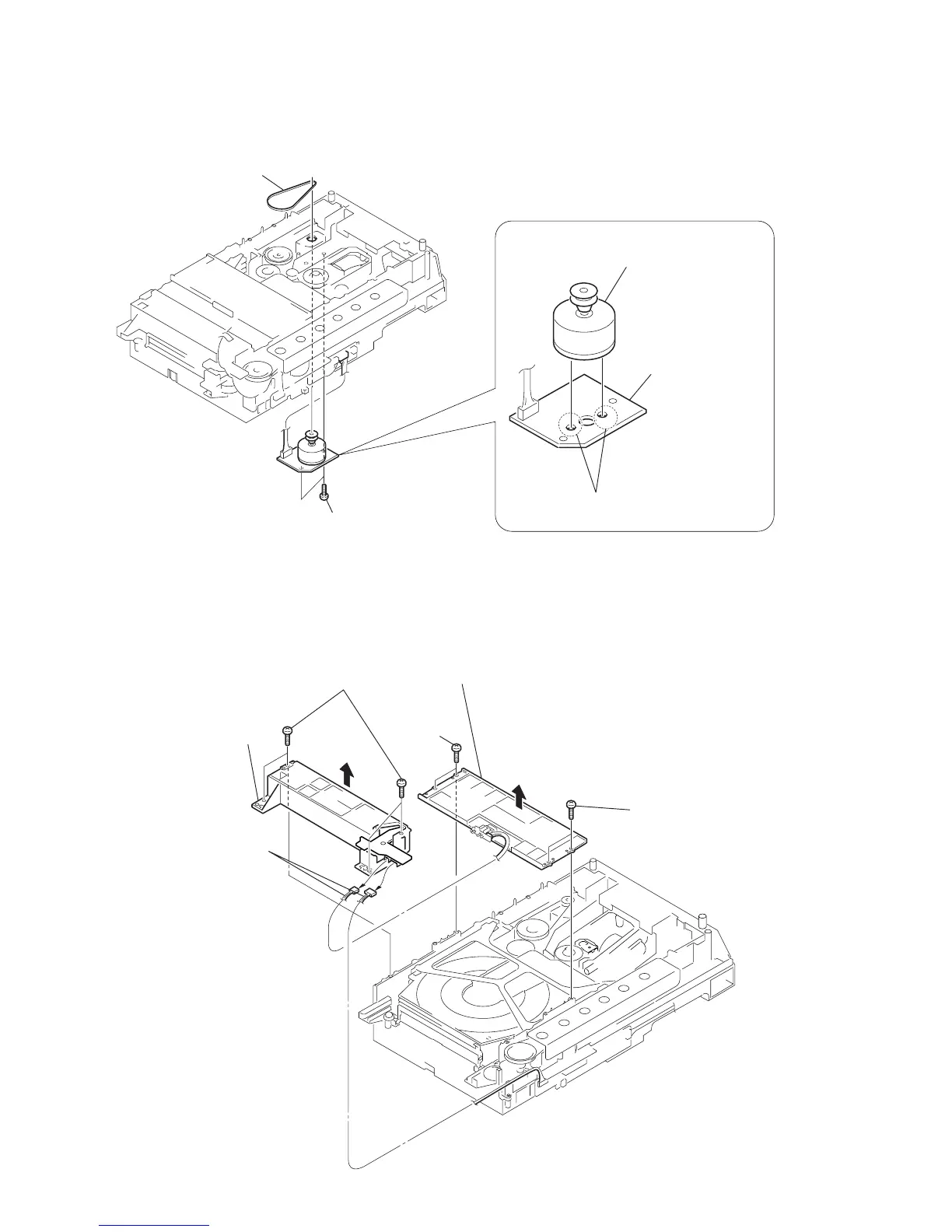

2-10. CLAMP MOTOR Board, Motor (Clamp) Assembly
2-11. Fitting Base (Guide) Assembly, Bracket (Chassis)
2 two screws
+BVTP
(2.6 × 8)
1 belt (mode)
3 Remove the two solderings.
5 motor (clamp)
assembly (M701)
4 CLAMP MOTOR
board
1 two connectors
(CN709, 715)
4 two screws
+BVTP
(2.6
× 8)
6 bracket
(chassis)
5 three screws
+BVTP
(2.6
× 8)
3 fitting base
(guide) assembly
2 four screws
+BVTP
(2.6 × 8)
