HCD-C450

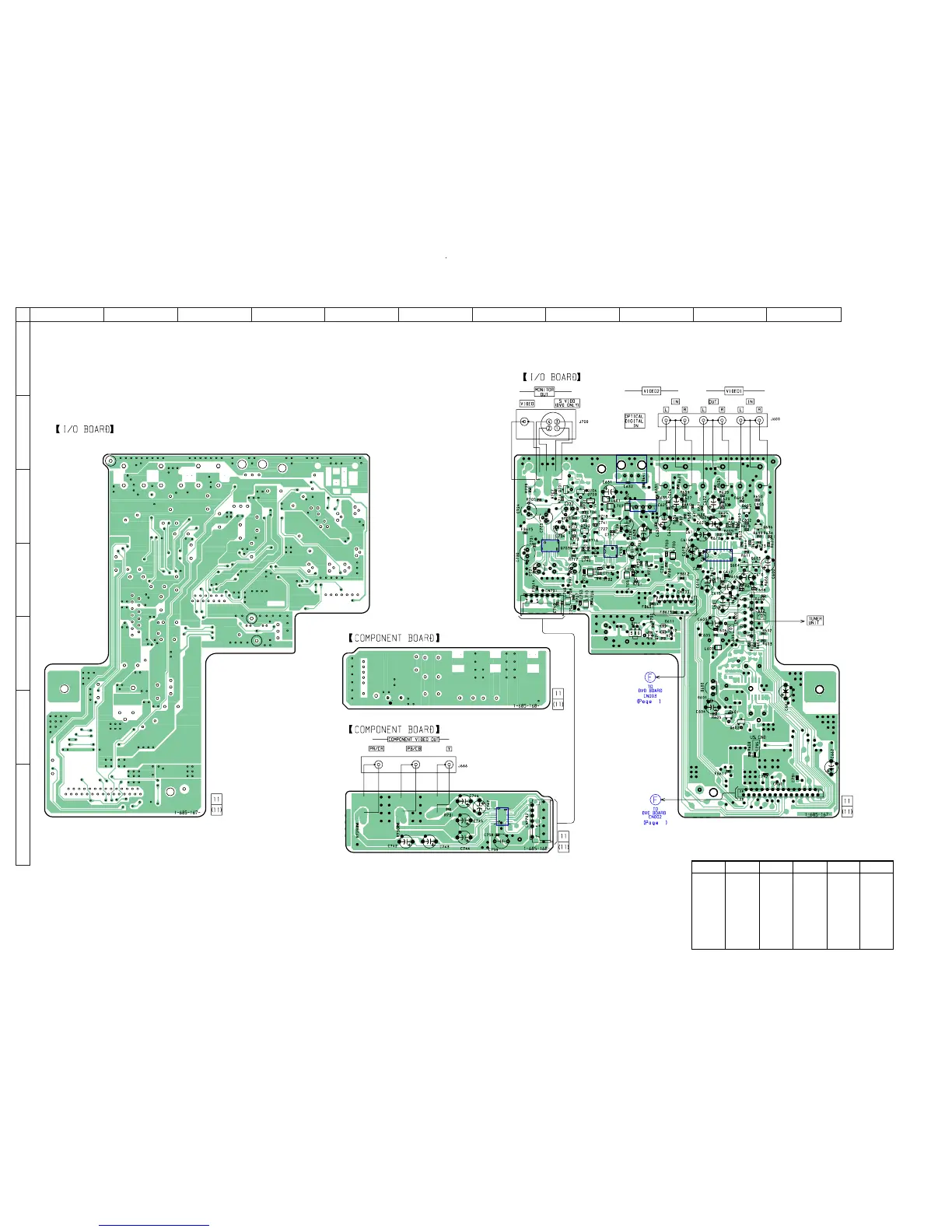

5-19. Printed Wiring Board – I/O Section – • See page 30 for Circuit Boards Location.
IC600
IC702
IC701
IC703
IC601
IC602
37
37
(SIDE B)
(SIDE B)
(SIDE A)
(SIDE A)
12
A
B
C
D
E
F
G
34567891011
Ref. No. Location
• Semiconductor Location
Ref. No. Location Ref. No. Location
D601 F-10
D611 E-9
D612 E-9
IC600 D-10
IC601 C-9
IC602 B-9
IC701 D-8
IC702 D-8
IC703 G-7
Q600 E-10
Q601 F-10
Q602 F-10
Q603 D-10
Q604 D-10
Q605 C-10
Q606 C-10
Q700 C-8
Q701 C-8
Q702 C-8
Q703 D-8
Q704 C-8
Q711 E-9
Q714 E-9
