Sony HCD-C450 - 2-2. Tuner Unit Disassembly; 2-3. Front Panel Section Disassembly

8
HCD-C450

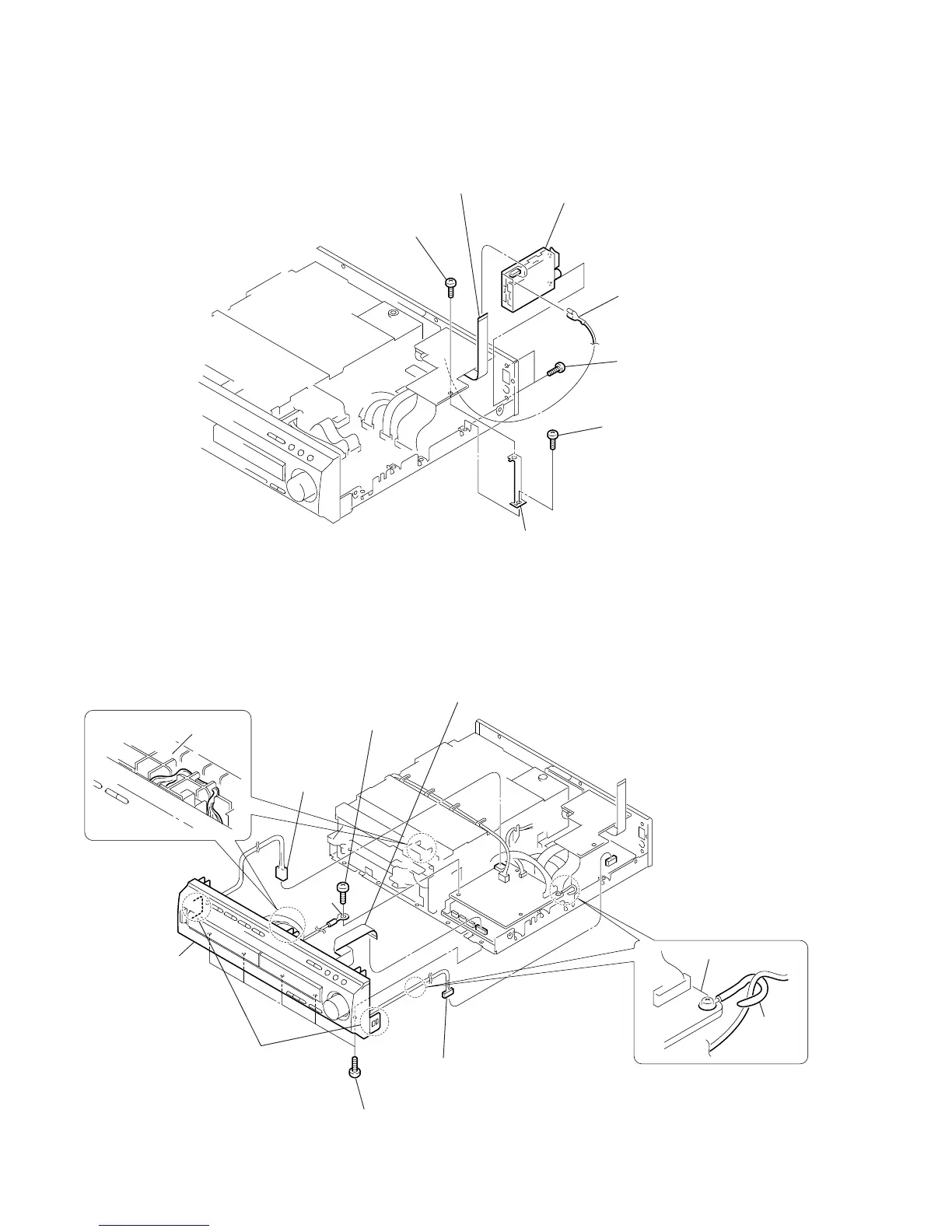

2-2. Tuner Unit
2-3. Front Panel Section
1 screw,
+BVTP
(3
× 8)
2 screw,
+BVTP
(3 × 8)
3 chassis
6 two screws,
+BVTP
(3 × 8)
5 earth wire
7 tuner unit
4 flexible flat cable
(13core)
3 screw,
+BVTP
(3 × 8)
5 five Screws,
+BVTP
(3 × 8)
wiring
stopper
4 wire
POWER board
2 connector
(CN902)
8 front panel
section
1 connector
(CN309)
7 flexible flat cable (17core)
(CN005)
6 two claws
HARNESS PROCESSING
HARNESS PROCESSING
MD cover
