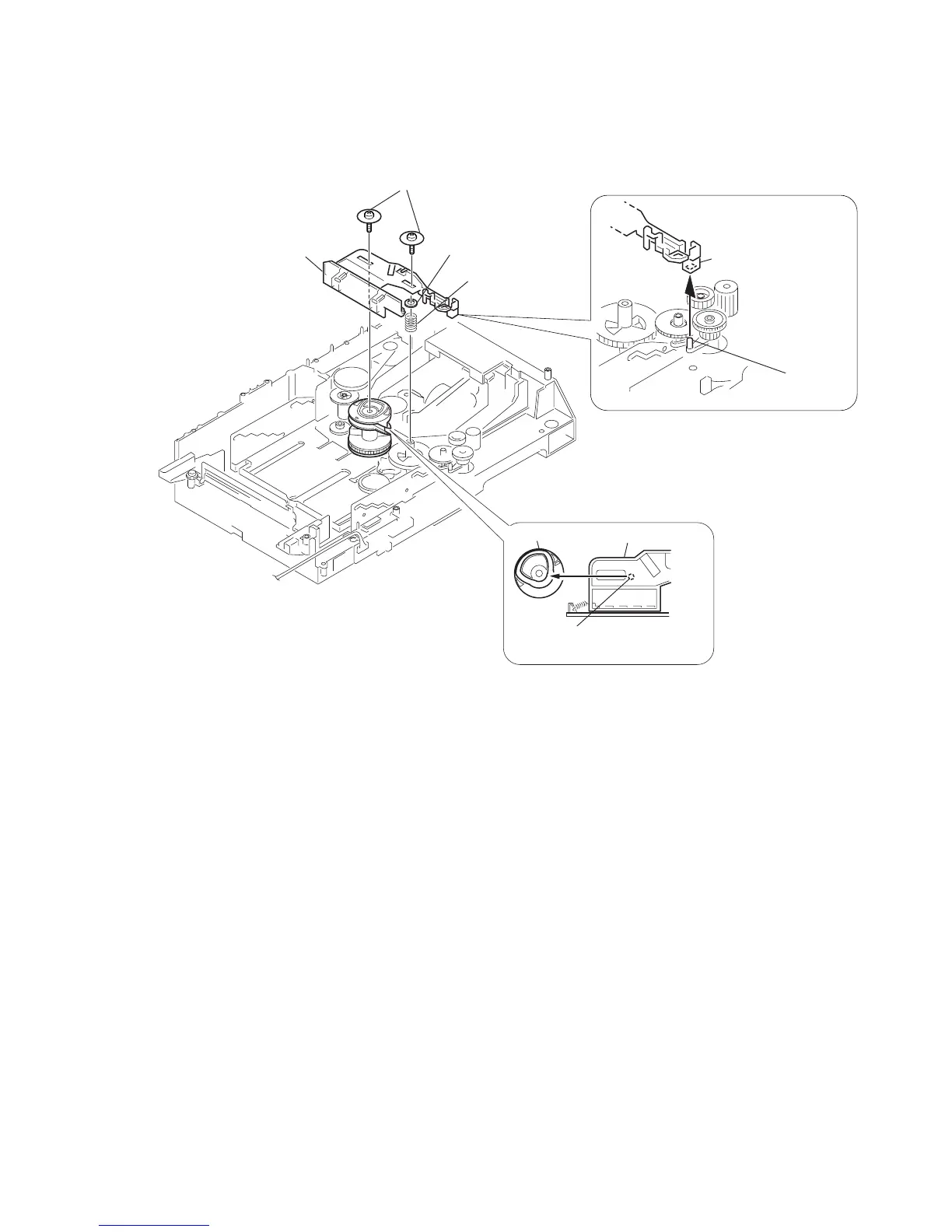

2-16. Slider (Selection), Tension Spring (Shutter), Slider (Shutter)
PRECAUTION DURING SLIDER
(SELECTION) INSTALLATION (1)
PRECAUTION DURING SLIDER
(SELECTION) INSTALLATION (2)
1 two floating screws
+PTPWHM,
(2.6 x 6)
2 washer, 8
3 compression
spring (gear A)
4 slider (selection),
tension spring (shutter),
slider (shutter)
slider (selection)
gear (choking)
Insert a convex portion into
the groove of gear (chucking).
Insert the slider (selection)
into the portion A.
portion A
