Sony HCD-C450 - Printed Wiring Board - DVD Board (Side A)

3737
HCD-C450

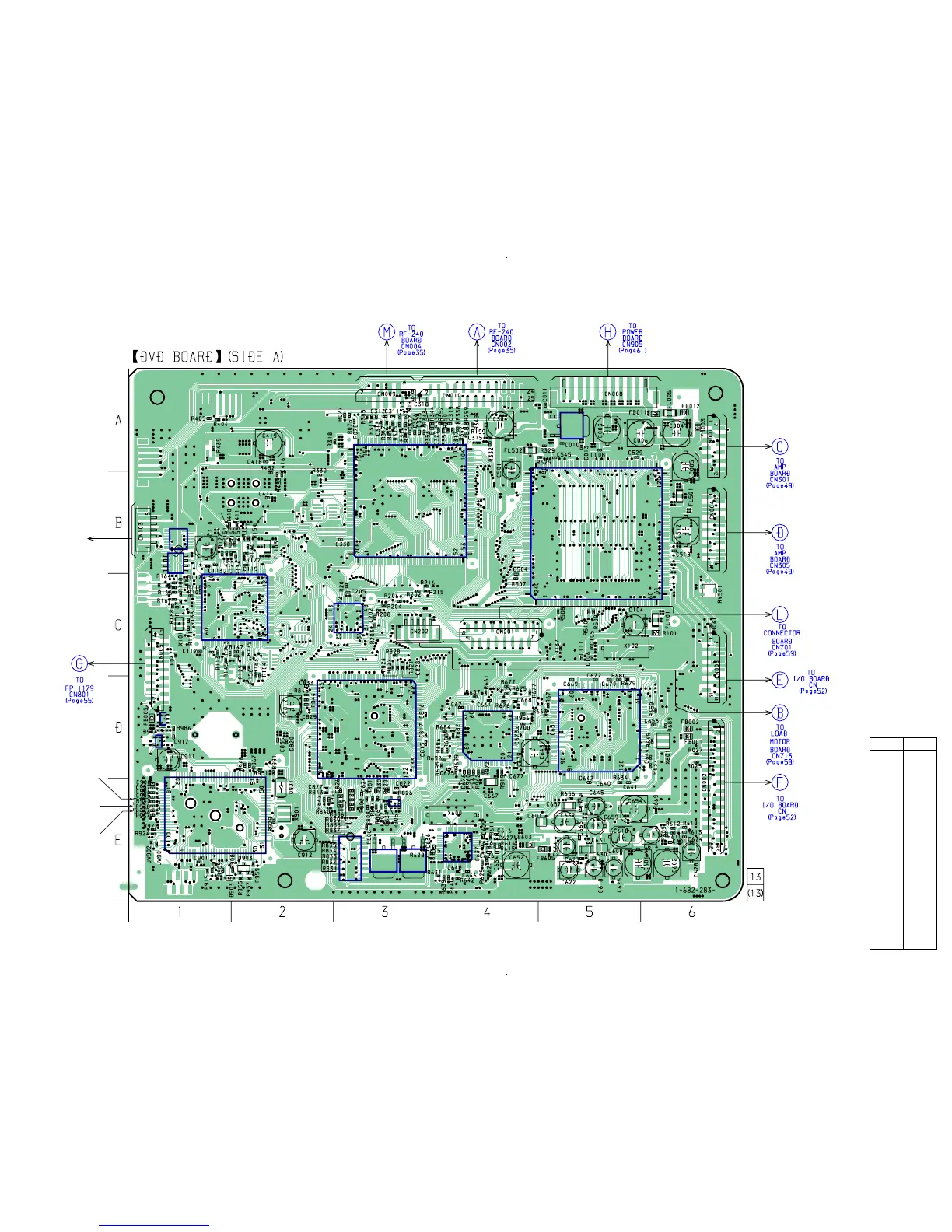

5-4. Printed Wiring Board – DVD Board (Side A) – • See page 30 for Circuit Boards Location.
Ref. No. Location
D901 E-2
D903 E-1
D904 D-1
IC002 A-5
IC004 E-3
IC005 E-3
IC101 B-1
IC103 C-2
IC106 B-1
IC201 C-3
IC302 B-3
IC503 B-5
IC606 E-4
IC607 D-5
IC612 D-4
IC801 D-3
IC802 E-3
IC900 E-3
IC901 E-2
IC903 D-1
IC904 D-1
Q903 E-2
• Semiconductor
Location
IC106
IC103
IC302
IC503
IC607
IC612
IC801
IC901
IC904
IC900
IC005
IC004
IC606
IC802
IC002
IC201
IC101
IC903
601
700
EXCEPT
US,CND
EXCEPT
US,CND
US,CND,
AUS,EA
US,CND,AUS,
E12,SP
US,CND,
E32,MX
5
5
8
14
7
1
1
1
5
12
24
23
36
4
4
8
1
1
1
7
8
14
1
N.C.
