Sony HCD-C450 - 2-17. Gear Assemblies Disassembly

16
HCD-C450

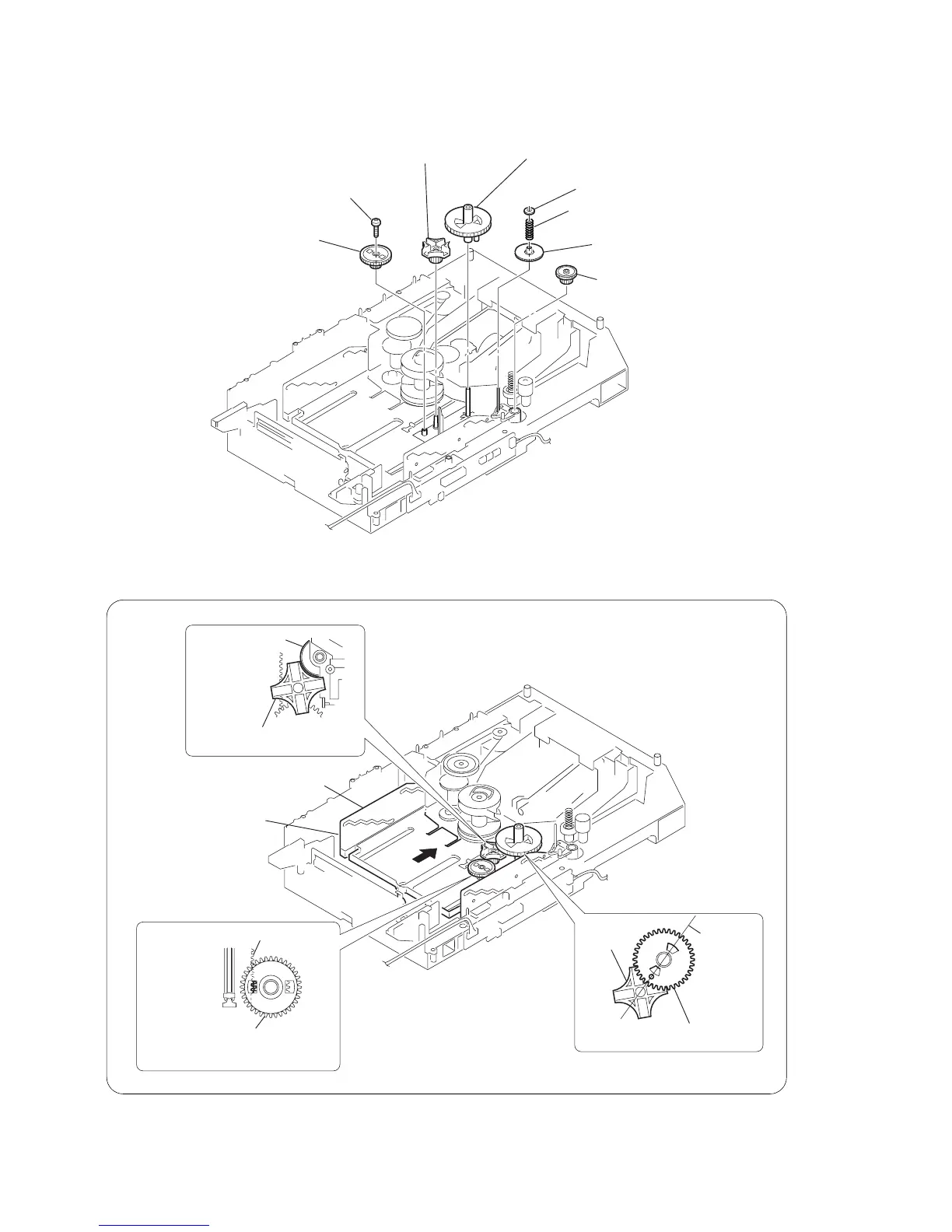

2-17. Gear (Gear A), Gear (Gear B), Gear (U/D Slider)
PRECAUTION DURING GEAR (GEAR U/D SLIDER), GEAR (GEAR B), GEAR (GEAR A) INSTALLATION
1 Slide the slider (U/D)
fully in the arrow
direction.
slider (U/D)
3 gear (gear B)
2 gear (U/D slider)
4 gear (gear A)
portion A
Adjust the gear (gear B) with the
portion A as shown.
slider (U/D) gear
Adjust the gear so that it meshes with
the bottom tooth of slider (U/D) gear,
as shown.
gear
(gear B)
linearly
Adjust so as to be aligned with
gear B linearly, as shown.
7 screw
+BVTP
(2.6
× 8)
6 gear (gear B)
8 gear (U/D slider)
5 gear (gear A)
2 washer
3 compression spring
4 gear (selection
)
1 gear (relay)
