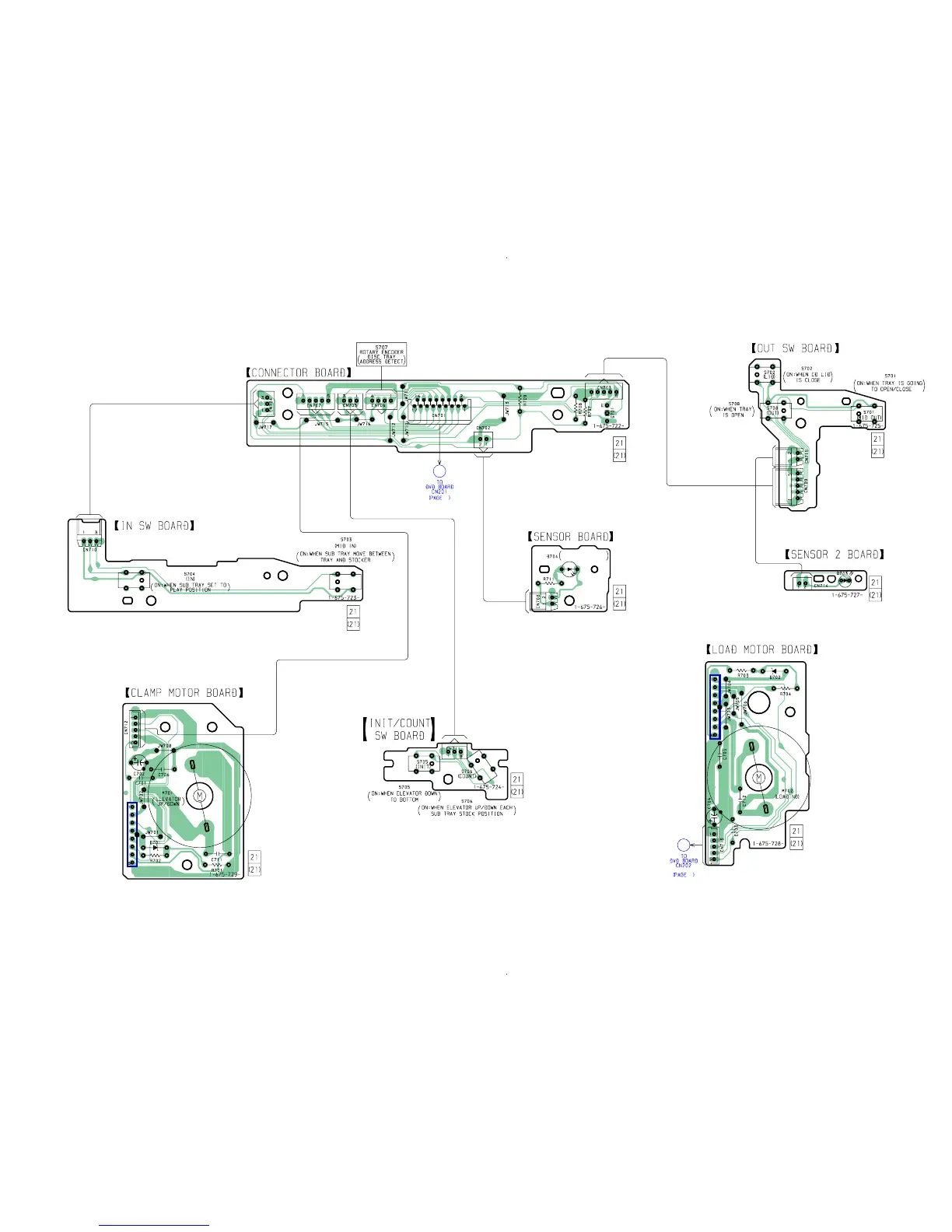

5-26. Printed Wiring Board – CDM Section – • See page 30 for Circuit Boards Location.
IC 701
IC 702
L
37
DISC IN
DETECT SENSOR
B
37
