NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
AUS: Australian model.
CND : Canadian model.
E12 : 220V-240V AC in E model.
E32 : 110V-240V AC (without VS) in E model.
EA : Saudi Arabia model.
MX : Mexican model.
SP : Singapore model.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
76
HCD-C450
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

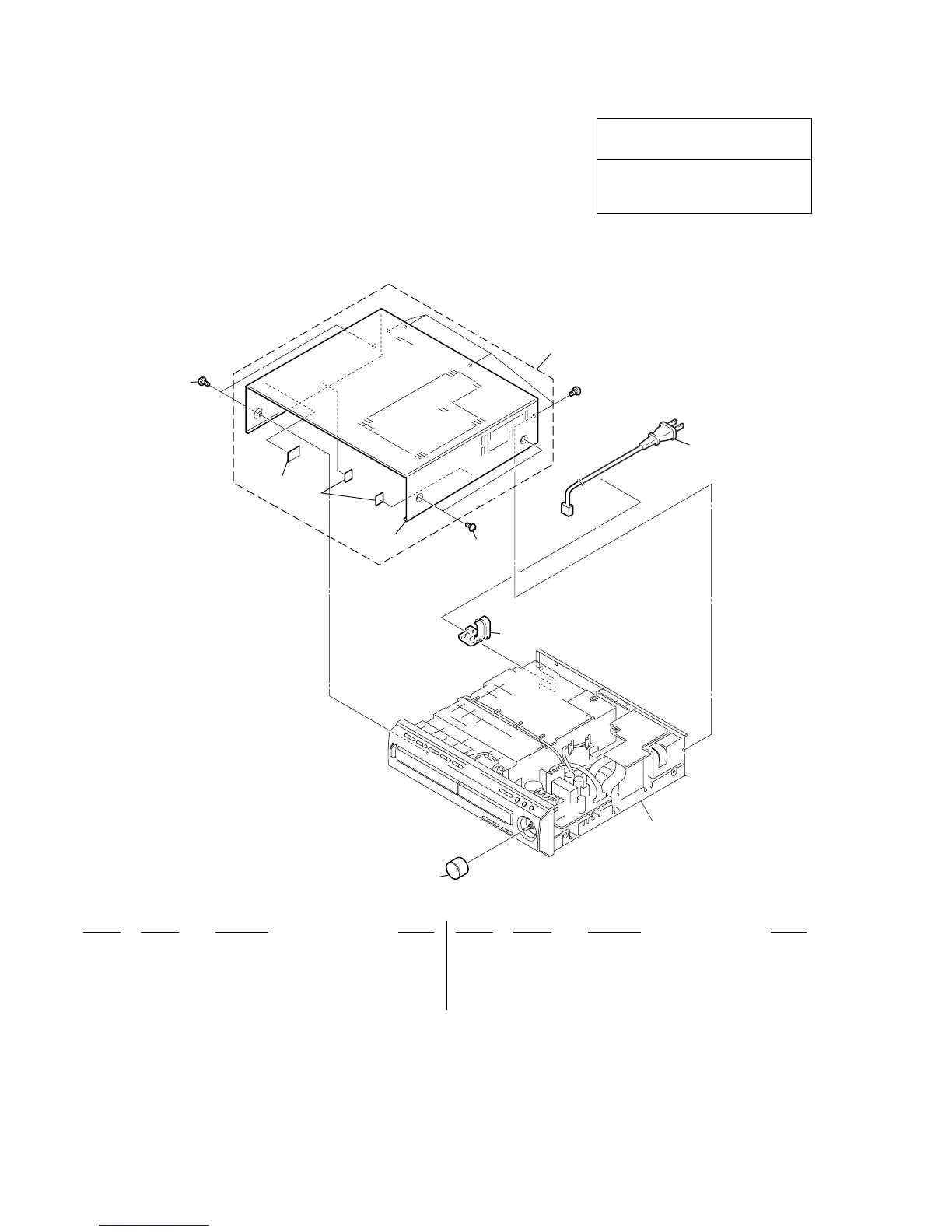

6-1. Case (Top) Section
SECTION 6
EXPLODED VIEWS
3
5
6
3
2
1
#1
Chassis section
not
supplied
not
supplied
1 4-240-024-01 KNOB VOLUME
2 4-217-350-11 STOPPER, CORD
3 4-221-580-01 SCREW, CASE
05 1-696-169-11 CORD, POWER (EXCEPT US,CND,AUS,MX)
05 1-696-848-41 CORD, POWER (AUS)
05 1-783-531-72 CORD, POWER (US, CND)
05 1-824-090-11 POWER CORD (MX)
6 X-4954-321-1 CASE SUB ASSY
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
