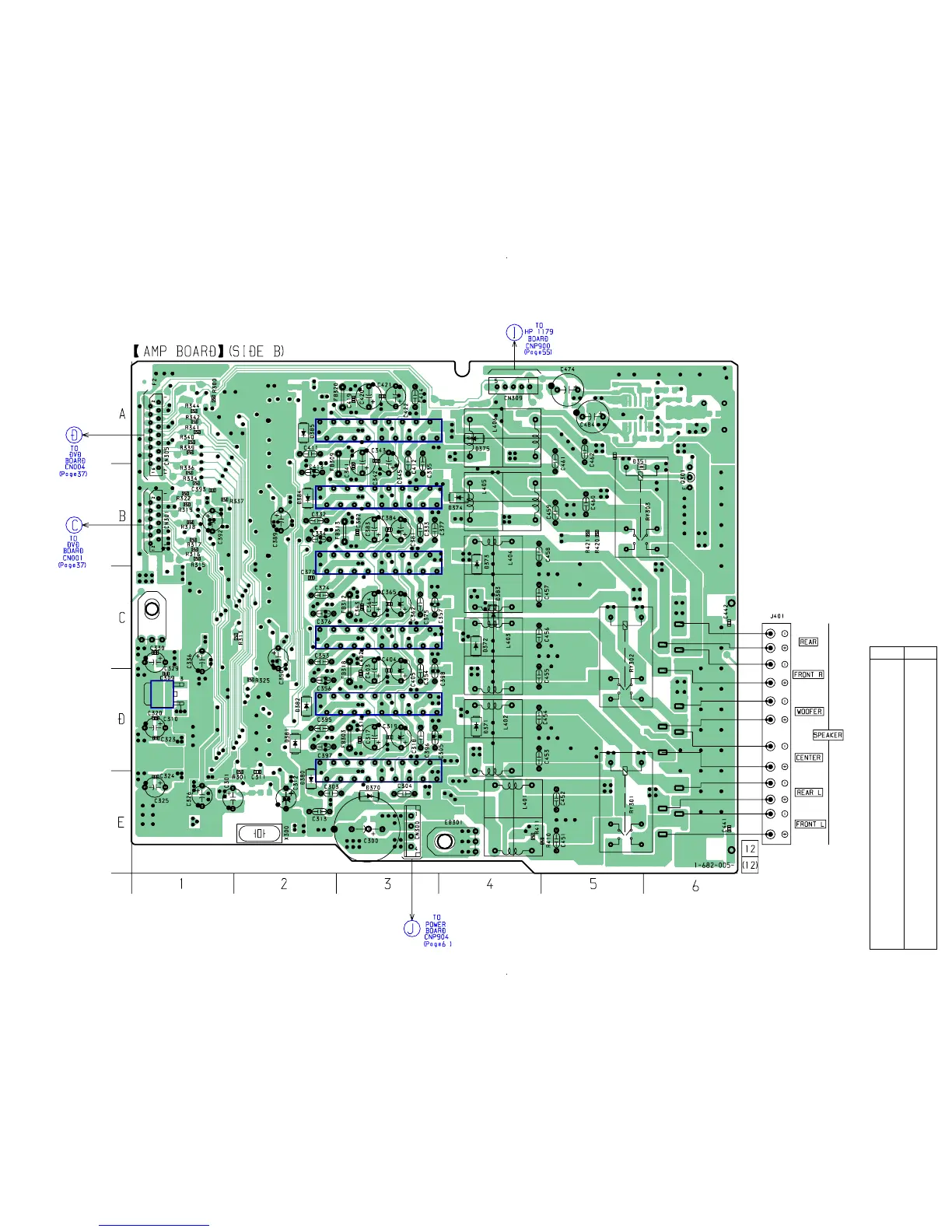

5-16. Printed Wiring Board – AMP Board (Side B) – • See page 30 for Circuit Boards Location.
IC301
IC302
IC309
IC306
IC307
IC304
IC311
1
Ref. No. Location
D310 D-4
D311 B-4
D312 C-4
D313 B-4
D314 D-4
D315 A-4
D320 E-4
D321 B-4
D322 C-4
D323 C-4
D324 D-4
D325 A-4
D351 B-5
D370 E-3
D371 D-4
D372 C-4
D373 B-4
D374 B-4
D375 A-4
D380 E-2
D381 D-2
D382 D-2
D383 C-4
D384 B-2
D385 A-2
IC301 E-3
IC302 D-1
IC304 B-3
IC306 C-3
IC307 B-3
IC309 D-3
IC311 A-3
Q301 B-6
• Semiconductor
Location
