Sony HCD-C450 - Chassis Section

77
HCD-C450
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

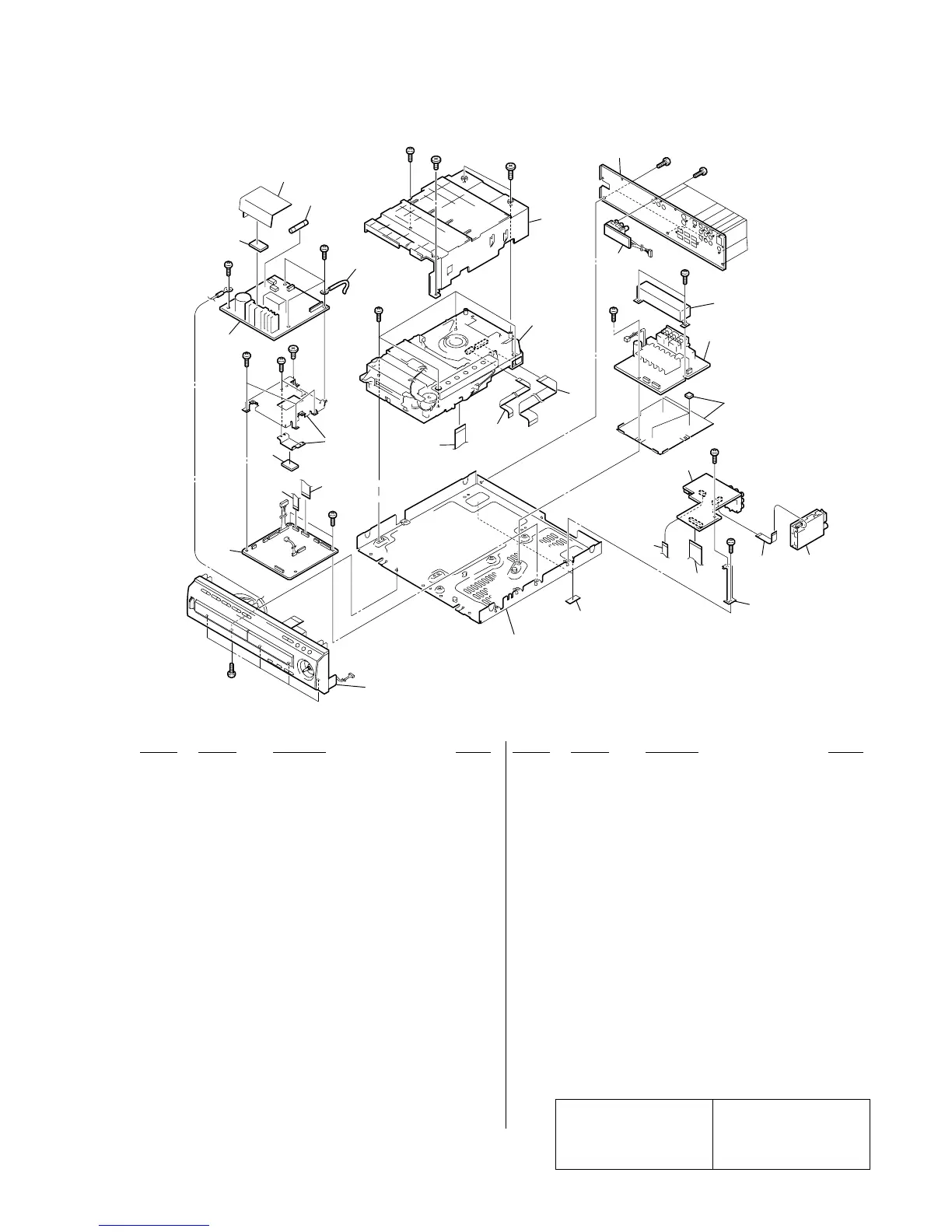

6-2. Chassis Section
not
supplied
not
supplied
not
supplied
not
supplied
F901
not
supplied
52
51
53
57
58
64
#3
#3
#1
#2
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
56
54
55
60
68
69
61
65
66
70
67
Front panel section
Overall section
(CDM53K
-DVBU7)
not
supplied
not
supplied
63
62
51 A-4726-404-A TUNER UNIT (US, CND)
51 A-4726-588-A TUNER UNIT (AUS)
51 A-4726-905-A TUNER UNIT (EXCEPT US,CND,AUS)
52 1-823-082-11 CABLE, FLEXIBLE FLAT (13 CORE)
53 A-4676-746-A I/O BOARD, COMPLETE (US,CND)
53 A-4729-822-A I/O BOARD, COMPLETE (E12,SP,EA)
53 A-4729-830-A I/O BOARD, COMPLETE (AUS)
53 A-4729-845-A I/O BOARD, COMPLETE (E32,MX)
54 1-823-124-11 CABLE, FLEXIBLE FLAT (29 CORE)
55 1-823-355-11 CABLE, FLEXIBLE FLAT (13 CORE)
56 4-234-924-01 FOOT
57 A-4729-819-A AMP BOARD, COMPLETE (EXCEPT US,CND,MX)
57 A-4676-743-A AMP BOARD, COMPLETE (US,CND,MX)
58 1-685-168-11 COMPONENT BOARDA
60 4-234-933-01 COVER, MD
61 A-4676-738-A POWER BOARD, COMPLETE (US,CND)
61 A-4729-814-A POWER BOARD, COMPLETE
(EXCEPT US,CND,E32,MX)
61 A-4729-838-A POWER BOARD, COMPLETE (MX)
61 A-4729-840-A POWER BOARD, COMPLETE (E32)
62 1-823-080-11 CABLE, FLEXIBLE FLAT (25 CORE)
63 1-823-083-11 CABLE, FLEXIBLE FLAT (9 CORE)
64 1-823-084-21 CABLE, FLEXIBLE FLAT (17 CORE)
65 1-823-125-21 CABLE, FLEXIBLE FLAT (12 CORE)
66 1-823-084-11 CABLE, FLEXIBLE FLAT (17 CORE)
67 A-4676-740-A DVD BOARD, COMPLETE (US,CND)
67 A-4729-816-A DVD BOARD, COMPLETE (E12)
67 A-4729-827-A DVD BOARD, COMPLETE (AUS)
67 A-4729-832-A DVD BOARD, COMPLETE (EA)
67 A-4729-835-A DVD BOARD, COMPLETE (SP)
67 A-4729-842-A DVD BOARD, COMPLETE (E32,MX)
68 4-237-471-01 COVER (HEAT)
69 4-237-472-01 COVER, FOOT
70 4-226-340-01 SHEET, RADIATION
0F901 1-533-453-11 FUSE, GLASS TUBE (DIA. 5) (5A/125V)
(US,CND,MX)
0F901 1-533-470-11 FUSE, GLASS TUBE (DIA. 5) (T3.15AL/25OV)
(EXCEPT US,CND,MX)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-548-14 SCREW +BTP 3X12 TYPE2 N-S
#3 7-685-545-14 SCREW +BTP 3X6 TYPE2 N-S
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
