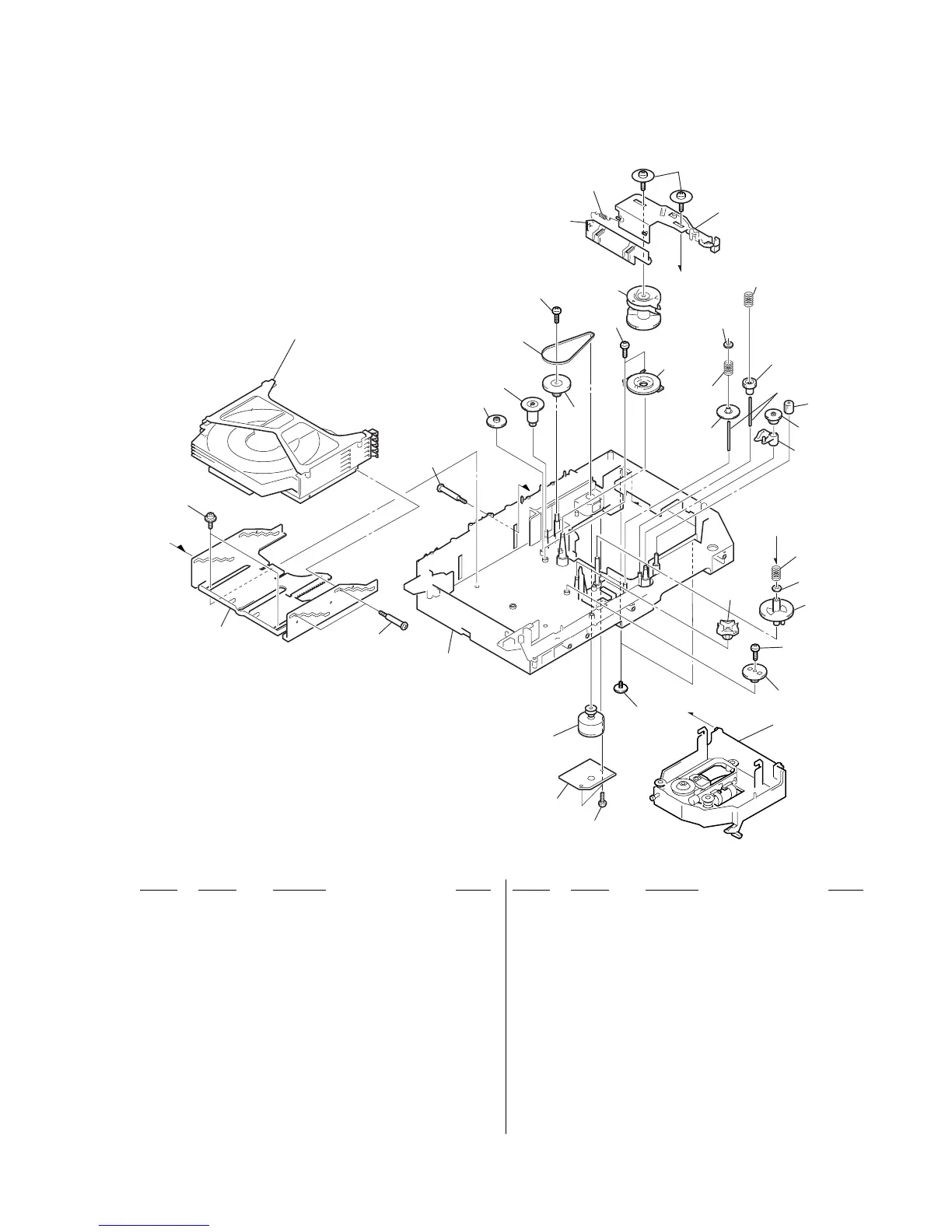

6-6. Chassis Section (CDM53K-DVBU7)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not
supplied
Stocker (240) overall section
Optical pick-up
section
(DVBU7)
M701
S707
not
supplied
502
A
C
C
B
B
503
502
505
506
508
507
501
509
510
511
512
513
501
514
514
515
517
516
518
519
520
521
522
523
501
524
525
511
526
501
504
A
501 4-951-620-41 SCREW (2.6), +BVTP
502 4-230-548-11 SCREW (J), STEP
503 4-211-223-01 SLIDER (U/D)
504 4-933-134-01 SCREW (+PTPWH M2.6X6)
506 4-211-232-01 GEAR (MODE DECELERATION)
507 4-211-214-01 PULLEY (LD)
508 4-211-237-01 BELT (MODE)
509 4-212-677-01 SLIDER (SHUTTER)
510 4-212-678-01 SPRING (SHUTTER), TENSION
511 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
512 4-211-233-01 SLIDER (SELECTION)
513 4-211-230-01 GEAR (CHUCKING)
514 4-211-245-01 SPRING, COMPRESSION
515 4-211-221-01 GEAR (LD MOVABLE)
516 4-211-217-02 GEAR (SELECTION)
517 4-211-242-01 SHAFT (SELECTION GEAR)
518 4-211-240-01 GEAR (LD DECELERATION B)
519 4-211-216-01 GEAR (RELAY)
520 4-211-241-01 LEVER (SELECTION)
521 4-216-879-01 SPRING (GEAR A), COMPRESSION
522 3-701-446-21 WASHER, 8
523 4-211-218-01 GEAR (GEAR A)
524 4-211-220-01 GEAR (U/D SLIDER)
525 4-211-219-01 GEAR (GEAR B)
526 1-675-729-21 CLAMP MOTOR BOARD
M701 X-4950-341-1 MOTOR (CLAMP) ASSY (CLAMP)
S707 1-418-045-01 ENCODER, ROTARY
(DISC TRAY ADDRESS DETECT)
