Sony HCD-C450 - 2-12. Tray (240) Disassembly; 2-13. Chassis (Mold B) Section Disassembly

13
HCD-C450

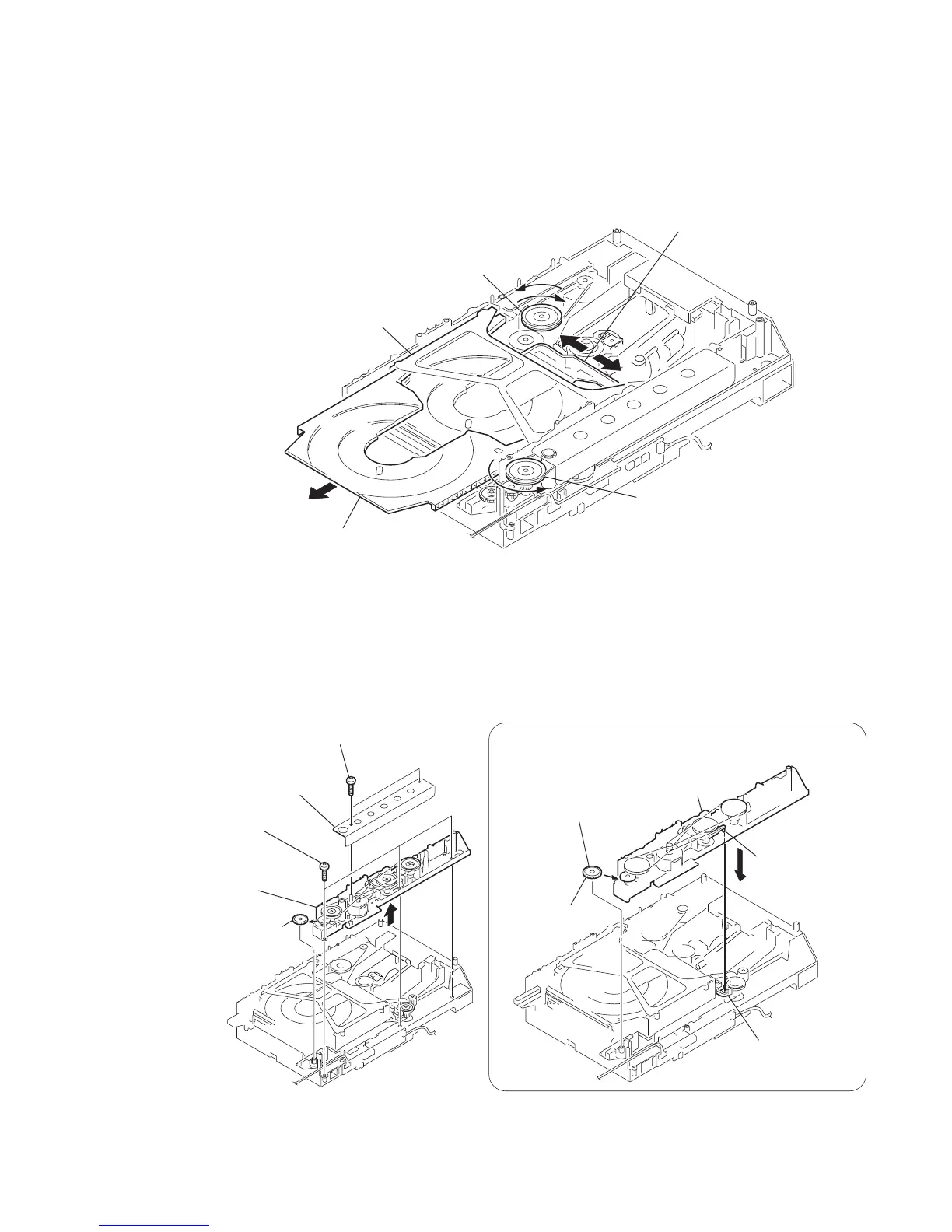

2-12. Tray (240)
2-13. Chassis (Mold B) Section
A
B
pulley (LD)-A
pulley (LD)-B
stocker section
tray (240)
slider (selection)
1 Rotating the pulley (LD)-A, shift the slider (selection) in the arrow A direction.
2 Rotating the pulley (LD)-B in the arrow direction, adjust the tray (240) to be removed.
3 Rotating the pulley (LD)-A, shift the slider (selection) in the arrow B direction.
4 Rotating the pulley (LD)-B in the arrow direction, remove the tray (240) to be removed.
3 three screws
+BVTP
(2.6 × 8)
2 cover
1 two screws
+BVTP
(2.6 × 8)
2 Insert the gear (eject)
under the gear (LD
deceleration).
1 Insert the portion A of
chassis (mold B) section
into the portion B of
slider (selection).
gear (eject)
portion A
portion B of
slider (selection)
5 g ear (eject)
4 c hassis (mold B)
section
chassis (mold B)
section
PRECAUTION DURING CHASSIS (MOLD B) SECTION INSTALLATION
