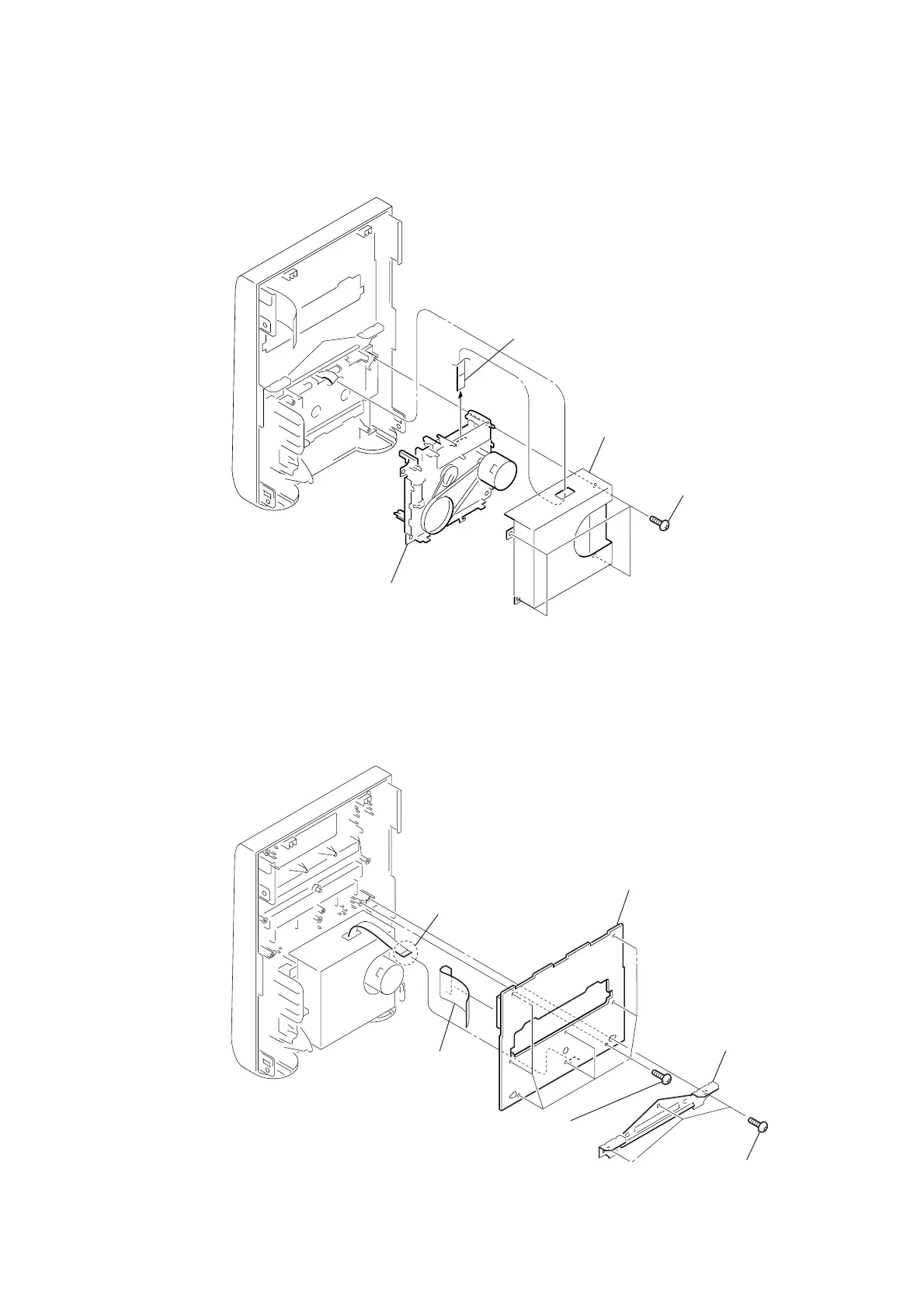

3-10. CASSETTE DECK MECHANISM (CMAL5Z220C)
4 cassette deck mechanism
(CMAL5Z220C)
2 four screws
(+BVTP 3
× 10)
3 shield cover
1 wire (flat type)
(7core)
3-11. KEY BOARD
3 eight screws
(+BVTP 3
× 10)
1 three screws
(+BVTP 3
× 10)
5 w ire (flat type)
(21core) (CN601)
4 w ire (flat type)
(7core) (CN602)
6 KEY board
2 bracket
