Sony HCD-DV2D - Front Panel Section Exploded View

55
HCD-DV2D
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

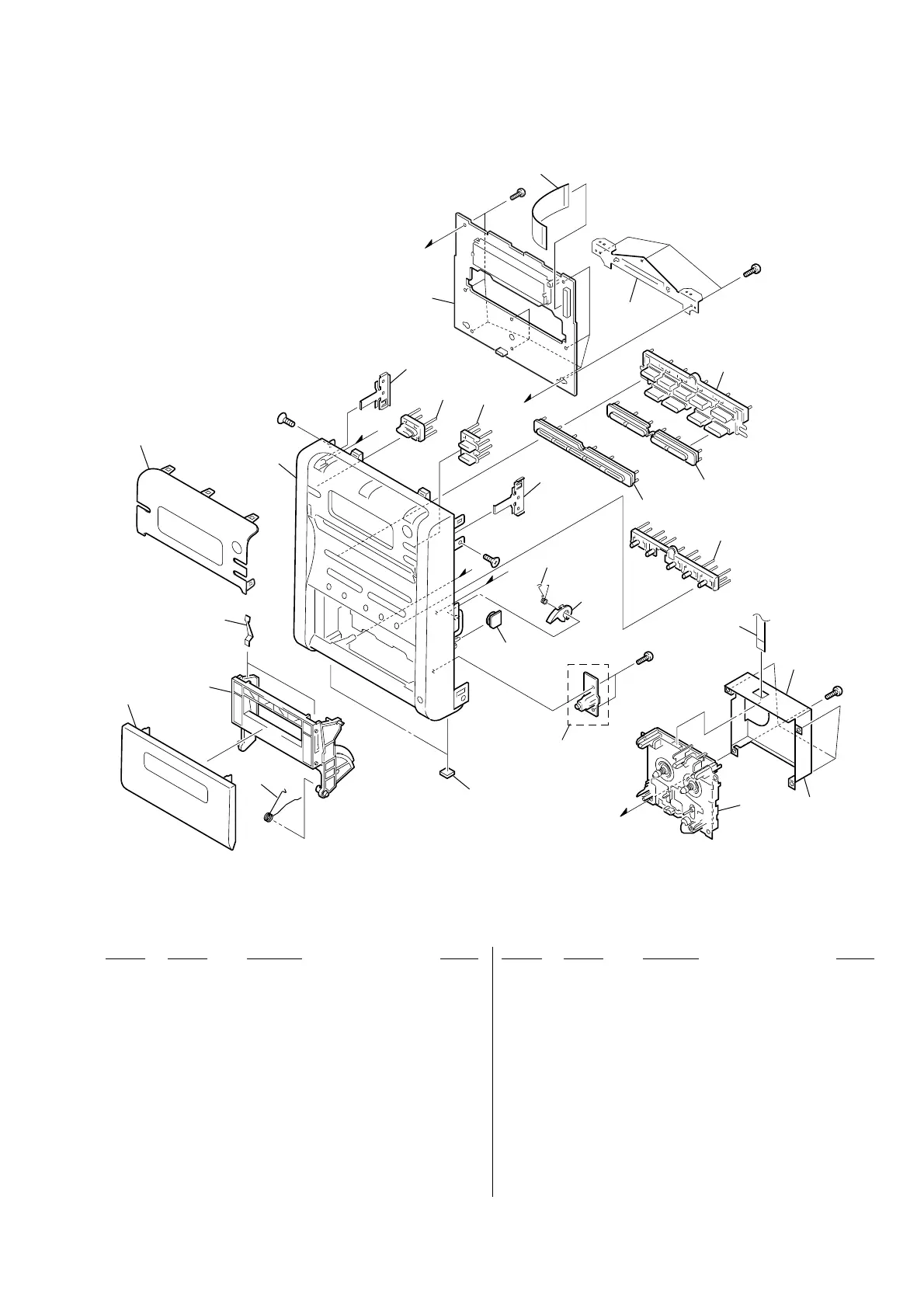

8-2. FRONT PANEL SECTION
51 9-885-077-21 PANEL CASS
52 4-247-757-01 SPR-T, CASS
53 9-885-077-20 HOLDER CASS
54 4-238-631-01 TAPE SPRING
55 9-885-077-22 WINDOW DISPLAY
56 9-885-077-18 CABI FRONT (US,CND)
56 9-885-080-63 CABI FRONT (EXCEPT US,CND)
58 9-885-077-24 KEY DISPLAY
59 9-885-077-23 KEY POWER
60 9-885-077-08 KEY BOARD, COMPLETE
(including HP BOARD)
62 9-885-059-38 WIRE (FLAT TYPE) (21 CORE)
63 9-885-077-19 KEY FUNCTION/VOL
64 9-885-077-30 RING VOLUME
65 9-885-077-29 RING FUNCTION
66 9-885-077-28 KEY REC
67 4-231-841-01 SPRING (HEART CAM-B)
68 4-231-825-01 CAM (B), HEART
69 4-242-318-01 OIL-DAMPER, 70
70 9-885-084-63 WIRE (FLAT TYPE) (7 CORE)
72 1-796-352-81 MECHANISM, SIGNAL CASSETTE
(CMAL5Z220C)
73 4-247-752-01 RUBBER FOOT
#1 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-246-19 SCREW +KTP 3X8 TYPE2 NON-SLIT
not
supplied
53
55
54
56
59
58
60
62
63
64
65
66
73
52
68
69
67
70
72
51
a
a
b
b
c
c
not
supplied
not
supplied
H/P boad
inclueding Ref. No. 60
not
supplied
not
supplied
#1
#1
#1
#1
#2
#2
Ver. 1.2
