Sony HCD-DV2D - Chassis Section Exploded View

56
HCD-DV2D
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

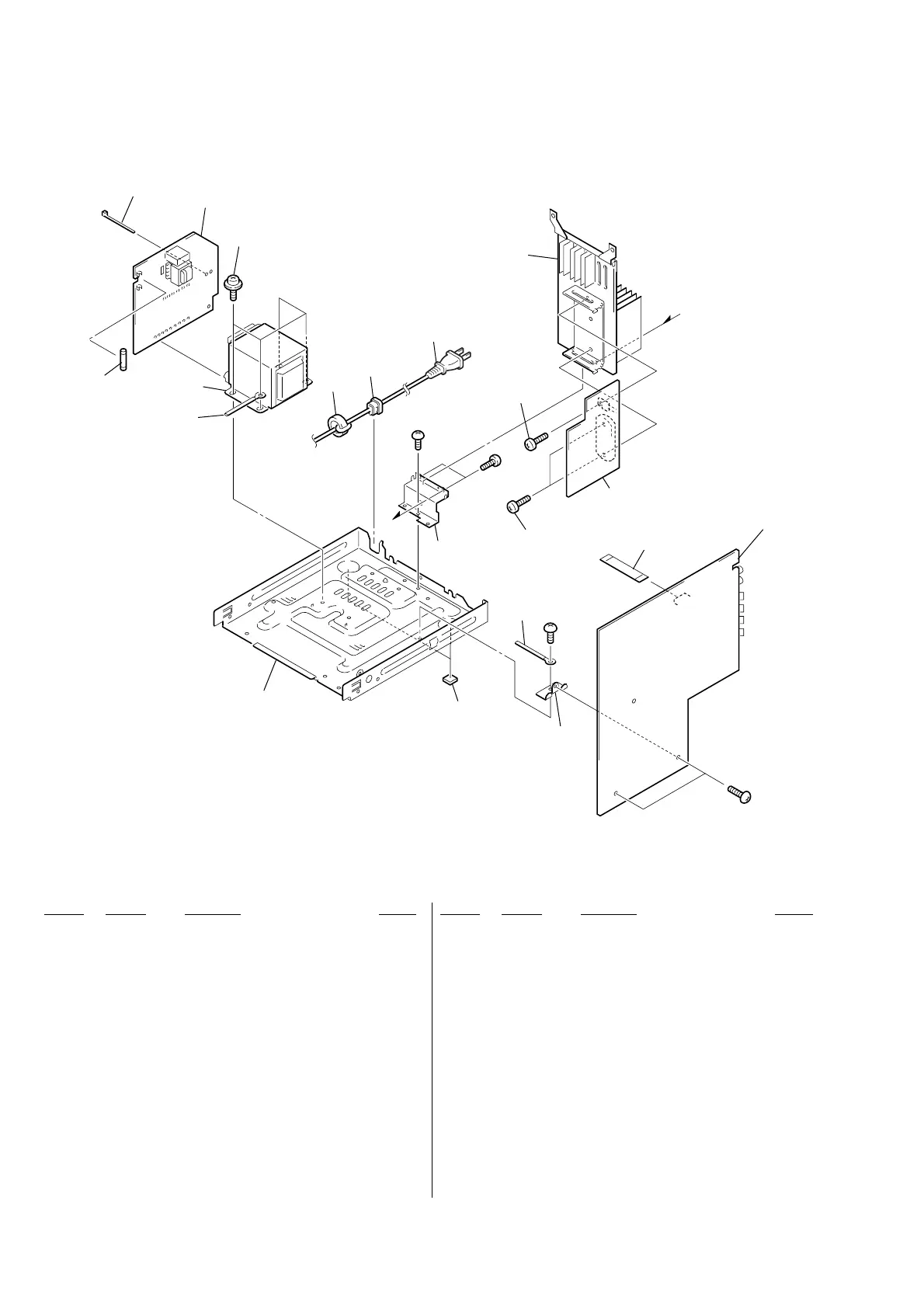

8-3. CHASSIS SECTION
101 9-885-079-67 POWER BOARD,COMPLETE (SP,E2,E3,E51,TW)
101 9-885-079-68 POWER BOARD,COMPLETE
(AEP,UK,RU,AUS,KR)
101 9-885-079-96 POWER BOARDC,COMPLETE (US,CND)
102 4-900-386-01 SCREW
0 103 1-696-848-12 CORD, POWER (AUS)
0 103 1-769-079-23 CORD, POWER (KR)
0 103 1-769-744-52 CORD, POWER (AEP,UK,RU,SP)
0 103 1-783-531-22 CORD, POWER (US,CND)
0 103 1-827-226-11 CORD, POWER (E2,E3,E51)
0 103 1-827-597-41 CORD, POWER (TW)
104 3-703-244-02 BUSHING (2104), CORD
107 9-885-080-00 AMP BOARD, COMPLETE
108 9-885-059-33 WIRE (FLAT TYPE) (9 CORE)
119 9-885-077-14 MAIN BOARD, COMPLETE (US,CND)
119 9-885-079-74 MAIN BOARD, COMPLETE (SP,KR,TW)
119 9-885-079-76 MAIN BOARD, COMPLETE (AEP,UK)
119 9-885-079-78 MAIN BOARD, COMPLETE (E2,E51)
119 9-885-079-79 MAIN BOARD, COMPLETE (AUS,E3)
119 9-885-079-80 MAIN BOARD, COMPLETE (RU)
121 4-247-752-01 RUBBER FOOT
122 9-885-068-71 FILTER CLAMP (AEP,UK,RU,KR)
0 F901 1-532-463-32 FUSE(TIME LUG),CYLINDRICAL (T1AL/250V)
(EXCEPT US,CND)
0 F901 1-532-503-32 FUSE,CYLINDRICAL (1.6A/250V) (US,CND)
0 PT901 9-885-077-11 TRANSFORMER, POWER (US,CND)
0 PT901 9-885-080-05 TRANSFORMER, POWER (SP,E2,E3,E51,TW)
0 PT901 9-885-080-06 TRANSFORMER, POWER (AEP,UK,RU,KR,AUS)
#1 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
101
102
PT901
F901
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
122
107
108
103
104
121
119
a
a
#1
#1
#1
#1
Ver. 1.4
