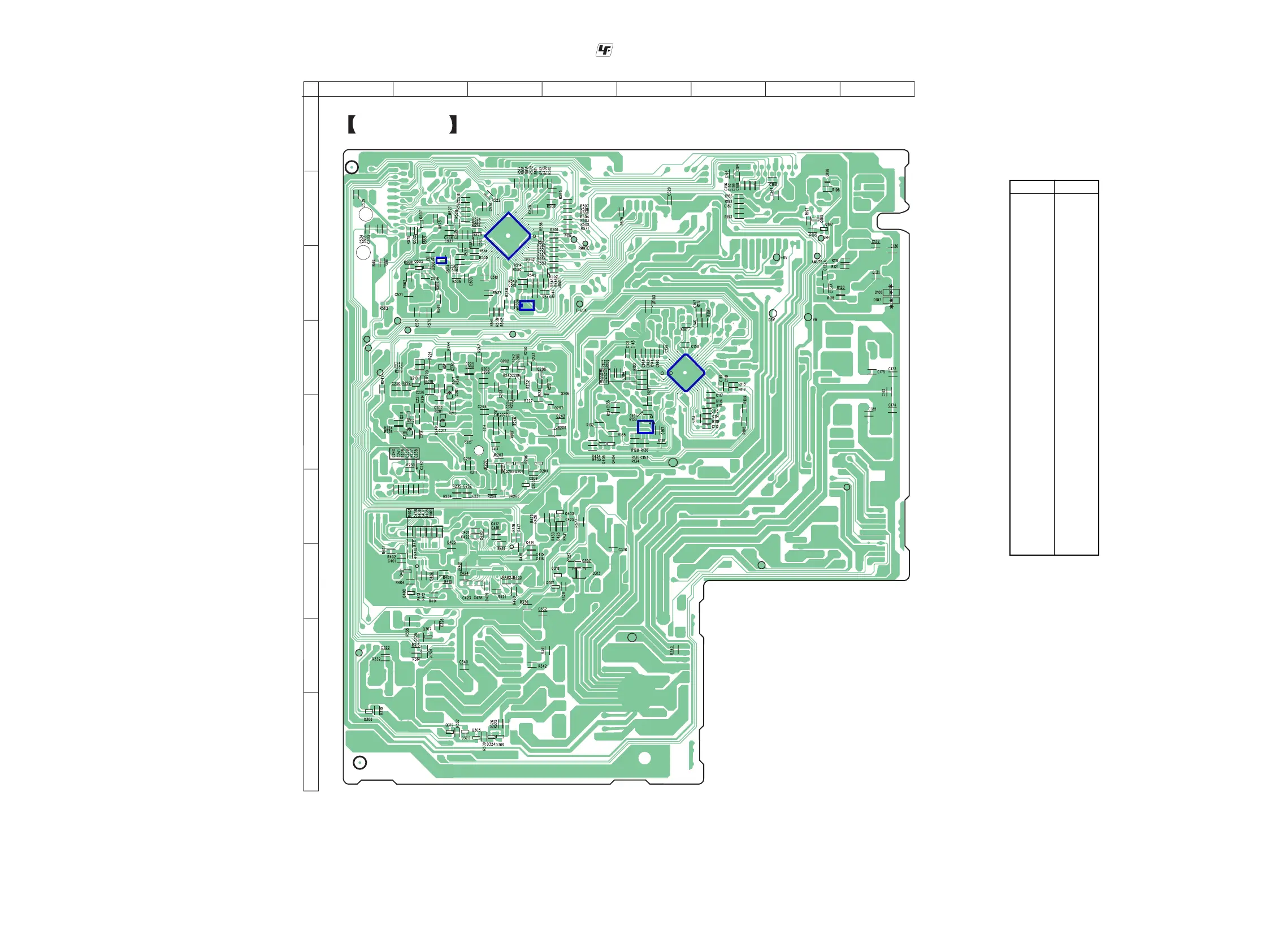

7-3. PRINTED WIRING BOARD — MAIN SECTION-2 —
• See page 21 for Circuit Boards Location. :Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D106 C-8
D107 C-8
D309 I-3
D313 G-4
IC101 D-5
IC102 E-5
IC501 B-3
IC502 C-2
IC503 C-3
Q196 B-7
Q197 B-7
Q199 B-7
Q201 F-3
Q202 D-3
Q203 F-3
Q204 F-3
Q205 F-3
Q206 E-4
Q207 E-4
Q208 D-3
Q209 D-3
Q210 D-2
Q211 E-2
Q305 I-3
Q306 I-1
Q307 H-2
Q317 G-4
Q318 G-4
Q319 I-2
Q502 B-2
Q505 C-2
Q506 C-2
Q507 B-2
IC501
IC503
IC502
IC101
IC102
MAIN BOARD
