Sony HCD-DV2D - Power Board

33
HCD-DV2D
HCD-DV2D
Ver. 1.2

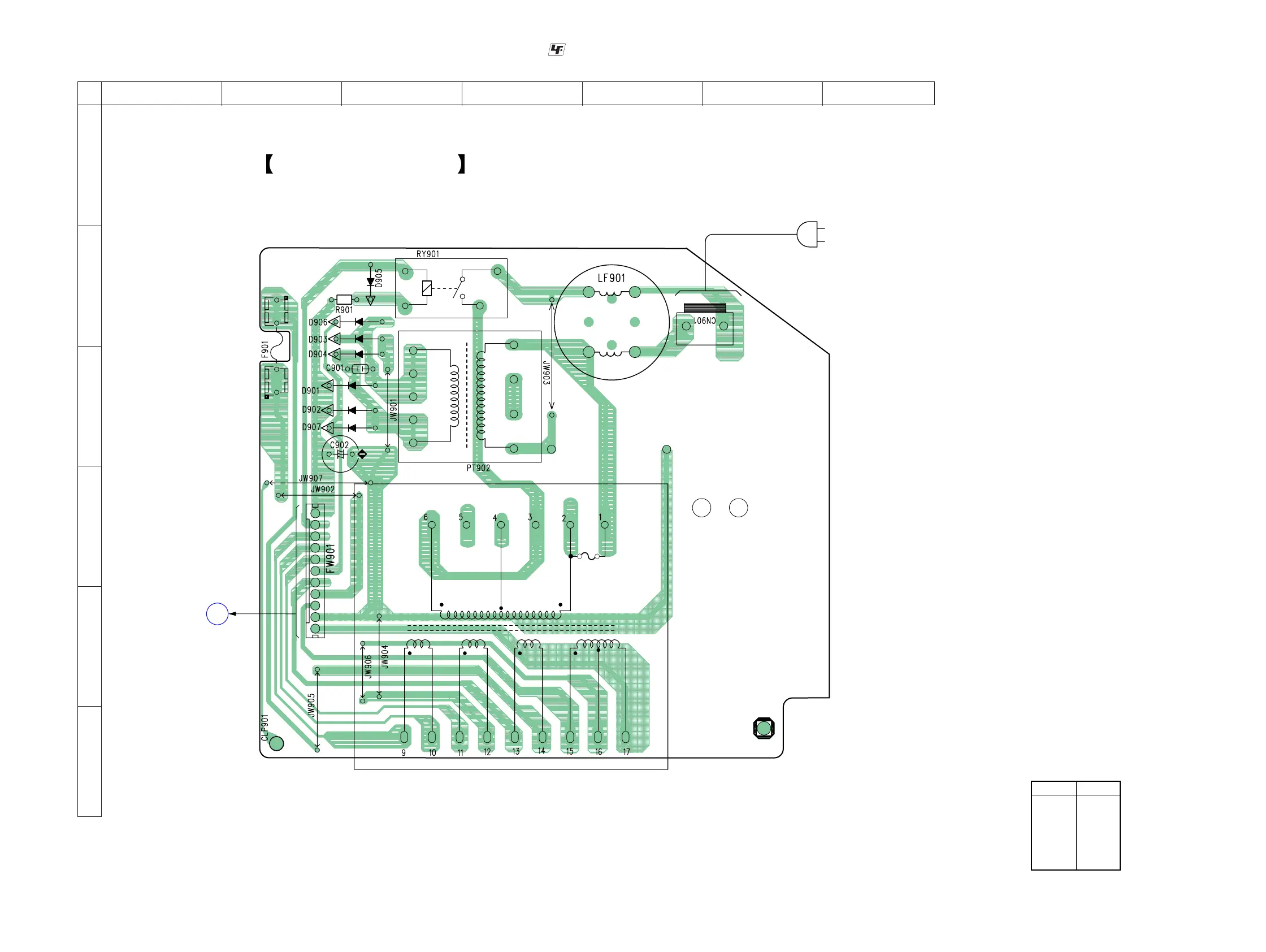

PRINTED WIRING BOARD — POWER SECTION (AEP, UK, RU, KR, AUS MODELS) —
:Uses unleaded solder.
(AEP,UK,RU,KR,AUS MODELS)
POWER BOARD
MAIN
BOARD
CN301
(Page 26)
D
PT901
AC IN
* Not replaceable
: Built in transformer
*
POWER TRANSFORMER(MAIN)
POWER TRANSFORMER(SUB)
1
11
4
1
9
5
2
1
12
A
B
C
D
E
F
34567
• Semiconductor
Location
Ref. No. Location
D901 C-2
D902 C-2
D903 B-2
D904 B-3
D905 F-8
D906 B-2
D907 C-2
