Sony HCD-DV2D - Printed Wiring Board - MPEG Section-2

3030
HCD-DV2D
HCD-DV2D

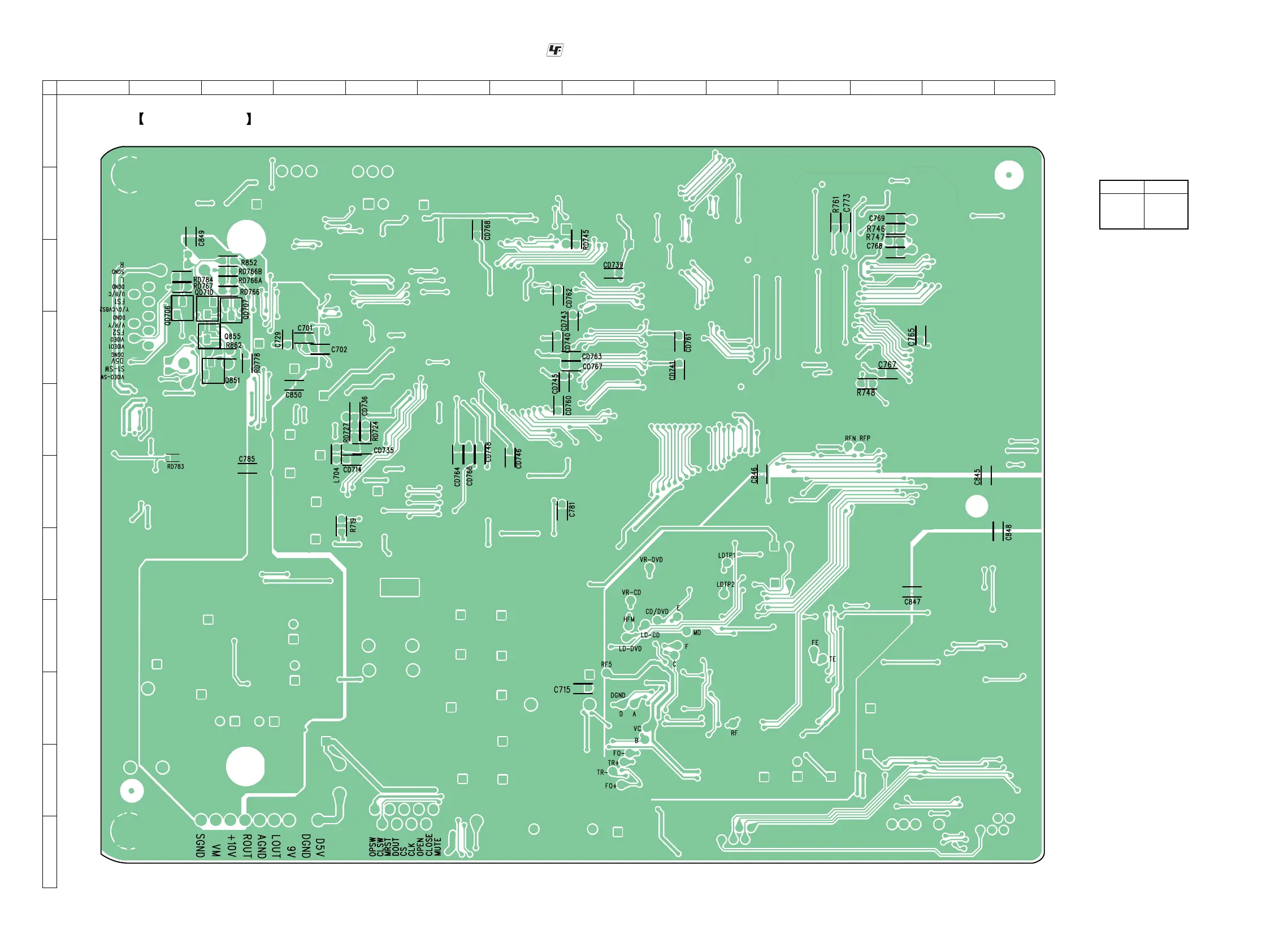

7-6. PRINTED WIRING BOARD — MPEG SECTION-2 —
• See page 21 for Circuit Boards Location. :Uses unleaded solder.
MPEG BOARD
12
A
B
C
D
E
F
G
H
I
J
K
34567891011121314
(SIDE B)
• Semiconductor
Location
Ref. No. Location
QD706 D-2
QD707 D-3
QD710 D-2
