Sony HCD-DV2D - Overall Section Exploded View

54
HCD-DV2D
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS:Australian model.
CND : Canadian model.
E2 : 120 V AC area in E model.
E3 : 240 V AC area in E model.
E51 : Chilean and Peruvian model.
KR : Korea model.
RU : Russian model.
SP : Singapore model.
TW : Taiwan model.
Ref. No. Part No. Description Remark

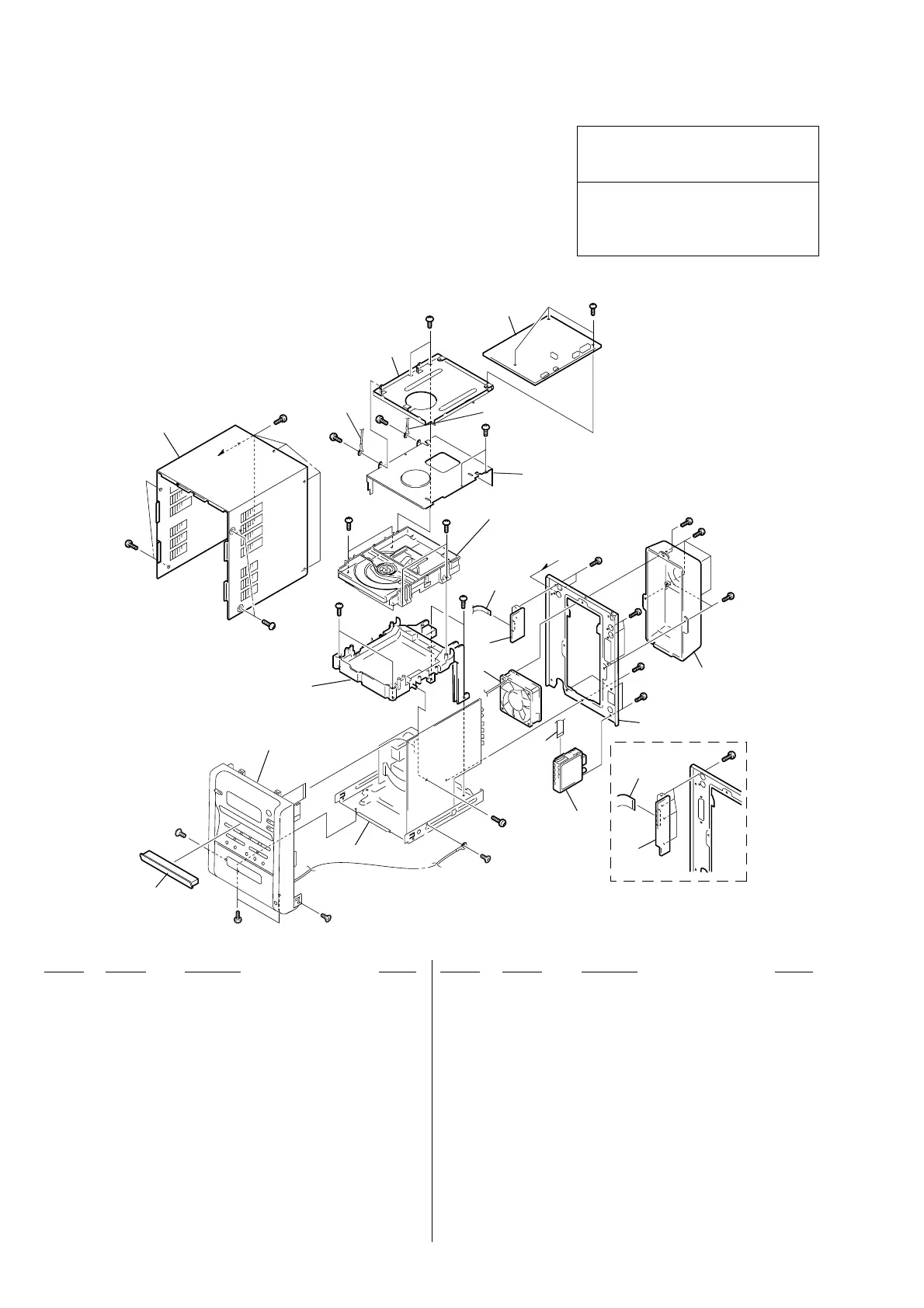

8-1. OVERALL SECTION
Ref. No. Part No. Description Remark
1 9-885-077-26 PANEL DVD TRAY
4 2-024-357-01 COVER TOP
7 9-885-077-15 MPEG BOARD, COMPLETE (US,CND)
7 9-885-079-69 MPEG BOARD, COMPLETE (SP,KR,TW)
7 9-885-079-70 MPEG BOARD, COMPLETE (AEP,UK)
7 9-885-079-71 MPEG BOARD, COMPLETE (AUS)
7 9-885-079-72 MPEG BOARD, COMPLETE (E2,E51)
7 9-885-079-73 MPEG BOARD, COMPLETE (E3)
7 9-885-079-99 MPEG BOARD, COMPLETE (RU)
9 9-885-080-48 WIRE (FLAT TYPE) (5 CORE)
(EXCEPT AEP,UK,RU)
9 9-885-080-49 WIRE (FLAT TYPE) (11 CORE)(AEP,UK,RU)
10 9-885-077-13 AV BOARD, COMPLETE (EXCEPT AEP,UK,RU)
10 9-885-079-98 AV BOARD, COMPLETE (AEP,UK,RU)
11 9-885-083-69 FAN, DC
14 9-885-059-35 WIRE (FLAT TYPE) (11 CORE)
(EXCEPT AEP,UK,RU)
14 9-885-068-68 WIRE (FLAT TYPE) (15 CORE)(AEP,UK,RU)
15 1-693-619-11 TUNER (FM/AM) (AEP,UK)
15 1-693-620-11 TUNER (FM/AM) (SP,E2,E3,E51,AUS,TW)
15 1-693-622-11 TUNER (FM/AM) (RU,KR)
15 1-693-624-11 TUNER (FM/AM) (US,CND)
16 9-885-080-49 WIRE (FLAT TYPE) (11 CORE)(AEP,UK,RU)
17 9-885-079-98 VIDEO OUT BOARD, COMPLETE (AEP,UK,RU)
#1 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-246-19 SCREW +KTP 3X8 TYPE2 NON-SLIT
#3 7-685-545-14 SCREW +BTP 3X8 TYPE2
#4 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
15
14
10
11
9
not
supplie
d
a
4
a
DVD mechanism deck section
chassis section
front panel section
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
1
7
9
10
#4
#4
#
4
#3
#3
#3
#3
#3
#3
#3
#3
#1
#1
#1
#2
#2
#2
#1
#1
#1
#1
#1
#1
#1
Ver. 1.2
