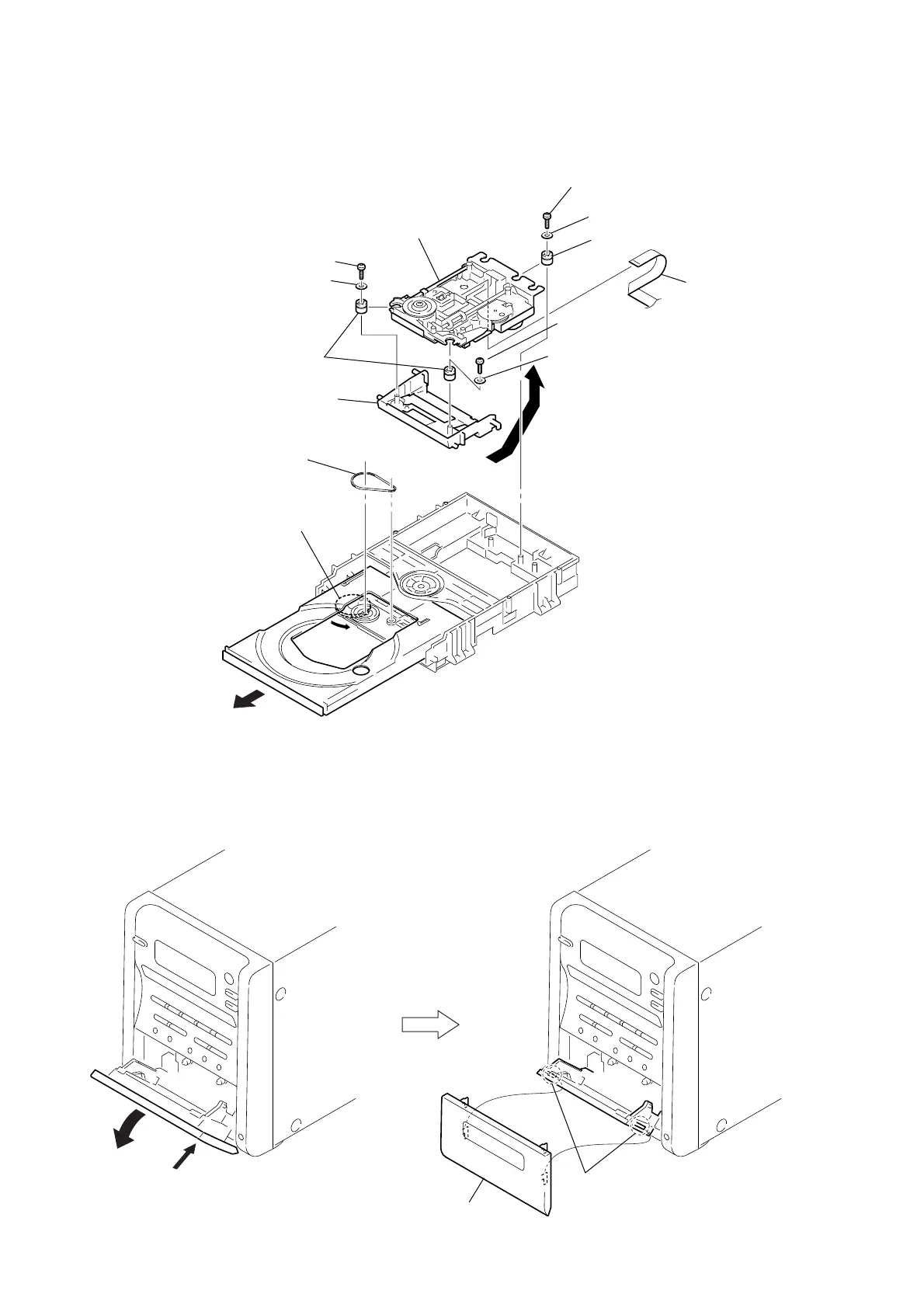

3-12. TRAVERSE MECH (1ADOMEZ0412)
2
1
Turn round the gear in the
direction of the arrow.
4 screw
7 screw
9 screw
5 washer
qd dumper (traverse mech)
qf w ire (flat type)
24core
qs two dumpers
(traverse mech)
qg traverse mech
(1ADOMEZ0412)
qa holder(traverse mech)
8 washer
q; washer
6
3 belt (pulley)
3-13. LID TC
4 lid TC
1
2
3
two claws
