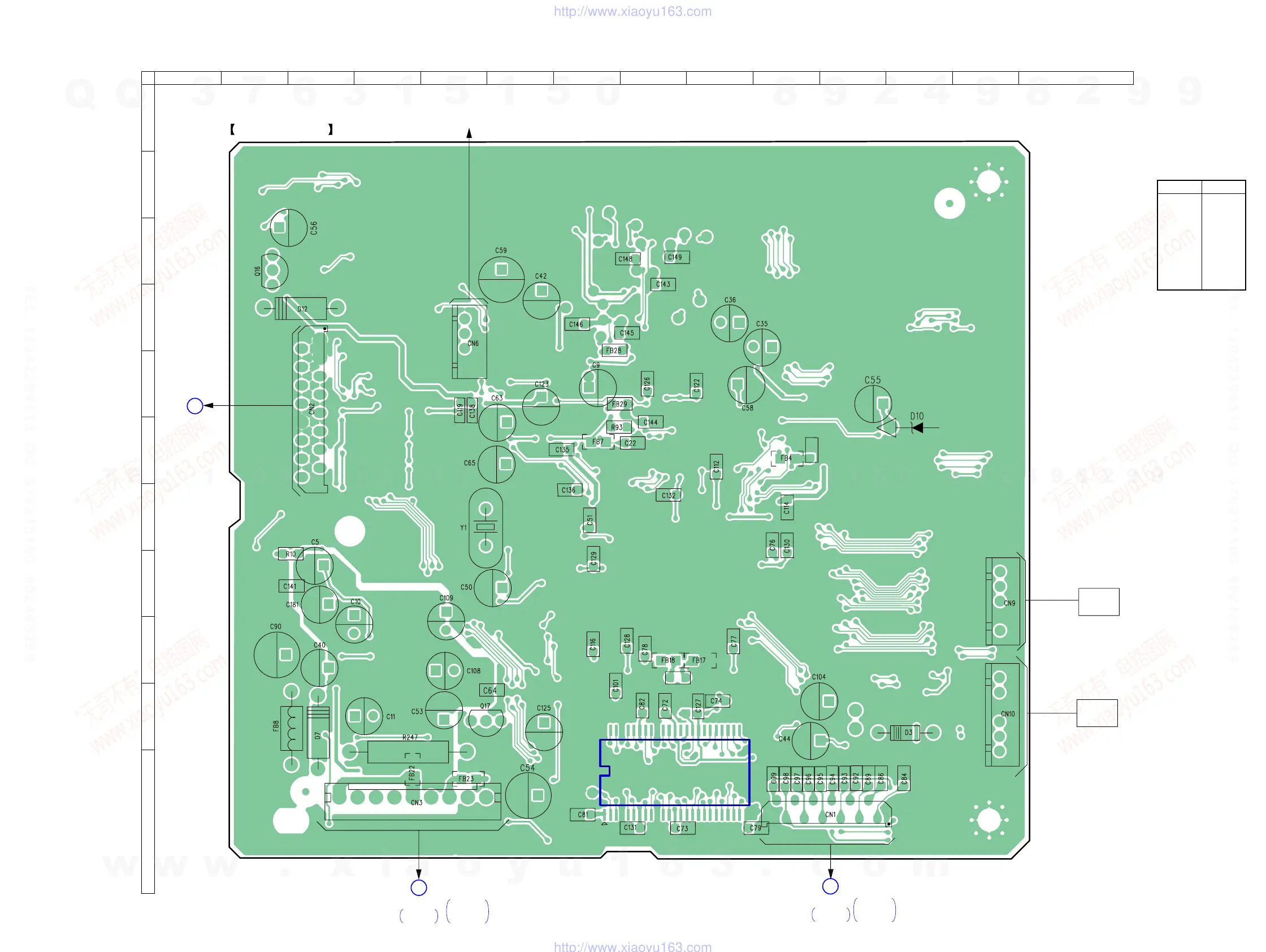

7-10. PRINTED WIRING BOARD — MPEG SECTION (SIDE B) —
• See page 21 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D3 J-12
D7 J-3
D10 F-12
D12 D-3
IC5 K-8
Q16 C-2
Q17 J-5
IC5
50
26
25
1
C67
C151
+
1
6
5
1
1
2
12
11
+
+
+
+
+
+
+
1
4
+
+
+
+
+
E
+
+
+
+
1
9
+
+
+
+
+
+
+
15
16
2
1
+
E
MPEG BOARD (SIDE B)
AV BOARD
(EXCEPT AEP,UK,RU)
CN801A
(Page 37)
AV BOARD
(AEP,UK,RU)
CN801
(Page 37)
F
MAIN BOARD
CN302
SUFFIX-G01V
Page 26
C
DVD
MECHANISM
DECK
for Down Load
MAIN BOARD
CN503
SUFFIX-G01V
Page 26
B
DVD
MECHANISM
DECK
SUFFIX-G02V
SUPPLEMENT-1
Page 3
SUFFIX-G02V
SUPPLEMENT-1
Page 3
