HCD-DX2D
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

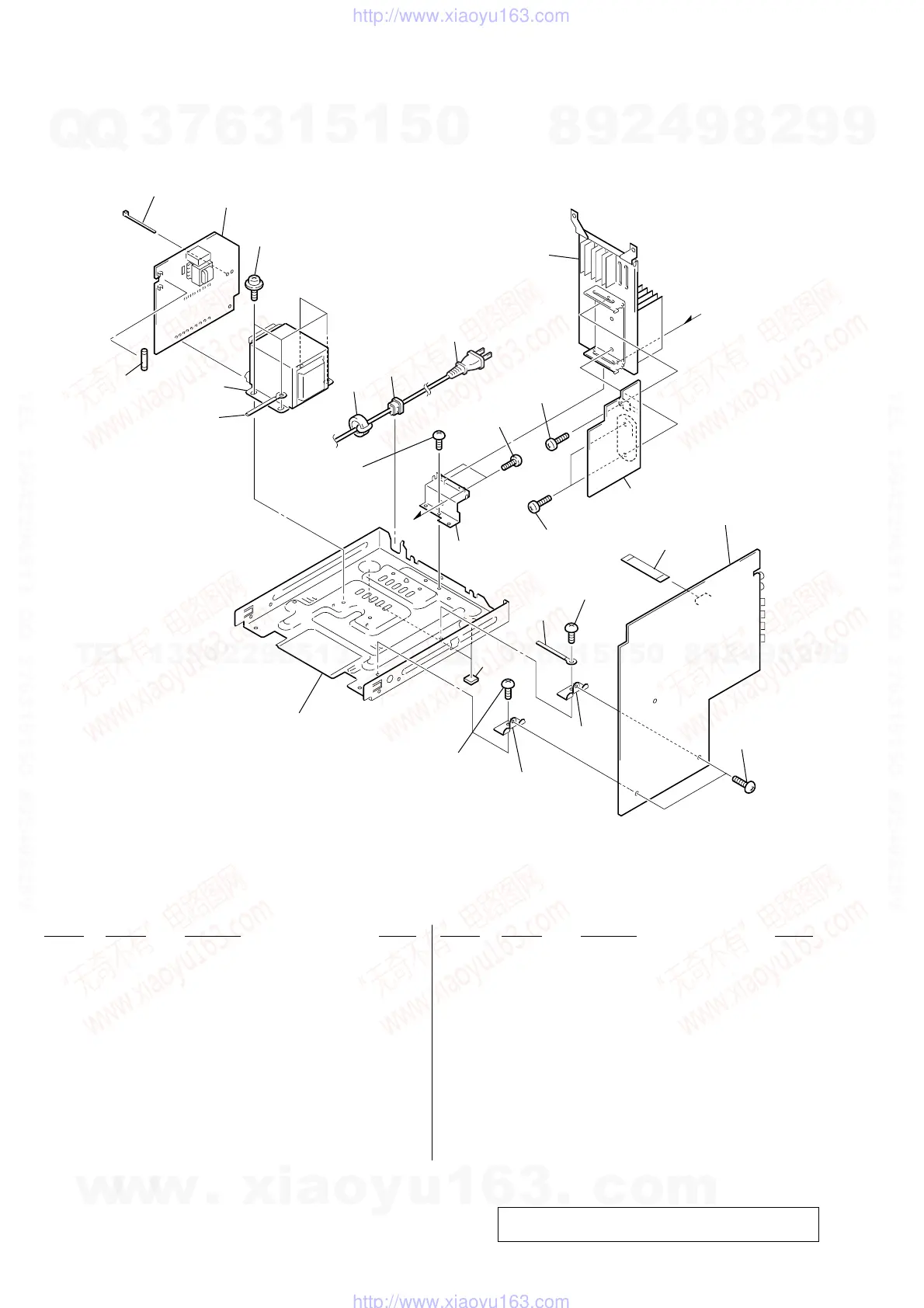

8-3. CHASSIS SECTION
101 9-885-100-99 POWER BOARD, COMPLETE (US, CND)
101 9-885-104-53 POWER BOARD, COMPLETE (AEP, UK, RU)
101 9-885-105-57 POWER BOARD, COMPLETE (SP, E3, E51)
101 9-885-105-58 POWER BOARD, COMPLETE (KR)
101 9-885-105-59 POWER BOARD, COMPLETE (TH)
101 9-885-105-60 POWER BOARD, COMPLETE (AUS)
0 102 1-696-848-11 CORD, POWER (AUS)
0 102 1-769-079-41 CORD, POWER (KR)
0 102 1-769-744-11 CORD, POWER (AEP, UK, RU, SP, E3, E51)
0 102 1-783-531-12 CORD, POWER (US, CND)
0 102 1-824-818-21 CORD, POWER (WITH CONNECTOR)(TH)
103 9-885-101-07 FF-CABLE 12P P=1.25MM L=1
101
PT901
F901
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
103
102
104
a
a
not
supplied
104 9-885-100-89 MAIN BOARD, COMPLETE (US, CND, E51)
104 9-885-104-51 MAIN BOARD, COMPLETE (AEP, UK)
104 9-885-107-87 MAIN BOARD, COMPLETE (KR)
104 9-885-107-89 MAIN BOARD, COMPLETE (E3, AUS)
104 9-885-107-90 MAIN BOARD, COMPLETE (SP, TH)
104 9-885-107-91 MAIN BOARD, COMPLETE (RU)
0 F901 1-532-463-31 FUSE (T1AL/250V) (EXCEPT US, CND)
0 F901 1-532-503-33 FUSE (T1.6AL/250V) (US, CND)
0 PT901 9-885-101-03 POWER TRANSFORMER (US, CND)
0 PT901 9-885-104-54 POWER TRANSFORMER
(AEP, UK, RU, KR, AUS)
0 PT901 9-885-105-28 POWER TRANSFORMER (SP, E3, E51, TH)
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
Ver. 1.3
