Sony HCD-GN660 - Main Board; Surround Board, PA Board

13
HCD-GN660/GN770/GX9000

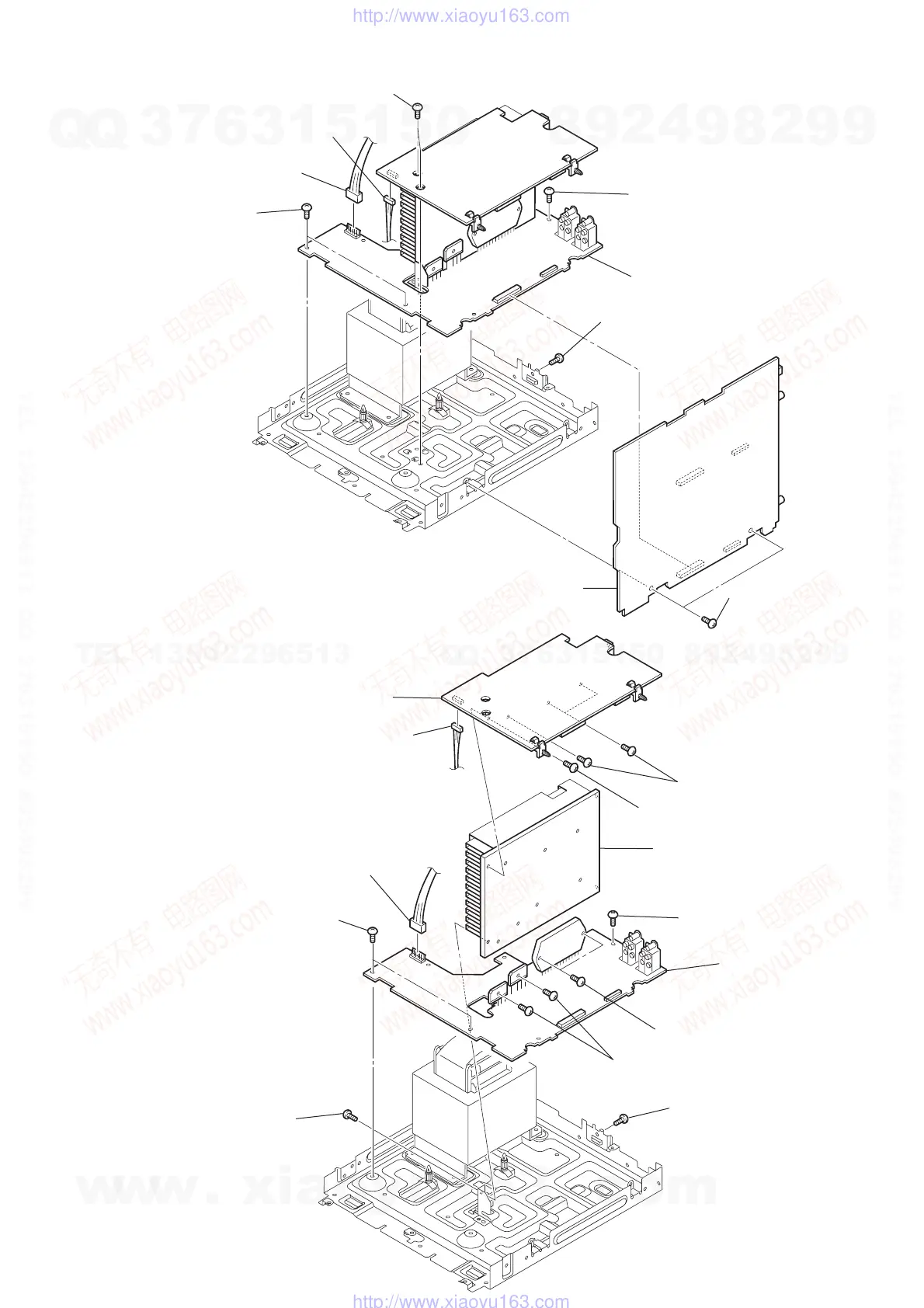

3-13. SURROUND BOARD, PA BOARD
3-12. MAIN BOARD
3 two screws
(+BVTP3 x 6)
4 two screws
(+BVTP3 x 6)
6 screw
(+BVTP3 x 10)
5 screw
(+BVTP3 x 6)
1 connector
6p (CN604)
2 connector
4p (CN703)
8 two screws
(+BVTP3 x 10)
9 MAIN board
7 POWER board assy
6 screw
(+BVTP3 x 10)
qs heat sink
7 screw
(+BVTP3 x 10)
8 two screws
(+BVTP3 x 16)
9 two screws
(+BVTP3 x 10)
0 two screws
(+BVTP3 x 6)
3 three screws
(+BVTP3 x 16)
4 screw
(+BVTP3 x 10)
qa screw
(+BVTP3 x 10)
qd PA board
5 SURROUND board
1 connector
6p (CN604)
2 connector
4p (CN703)
