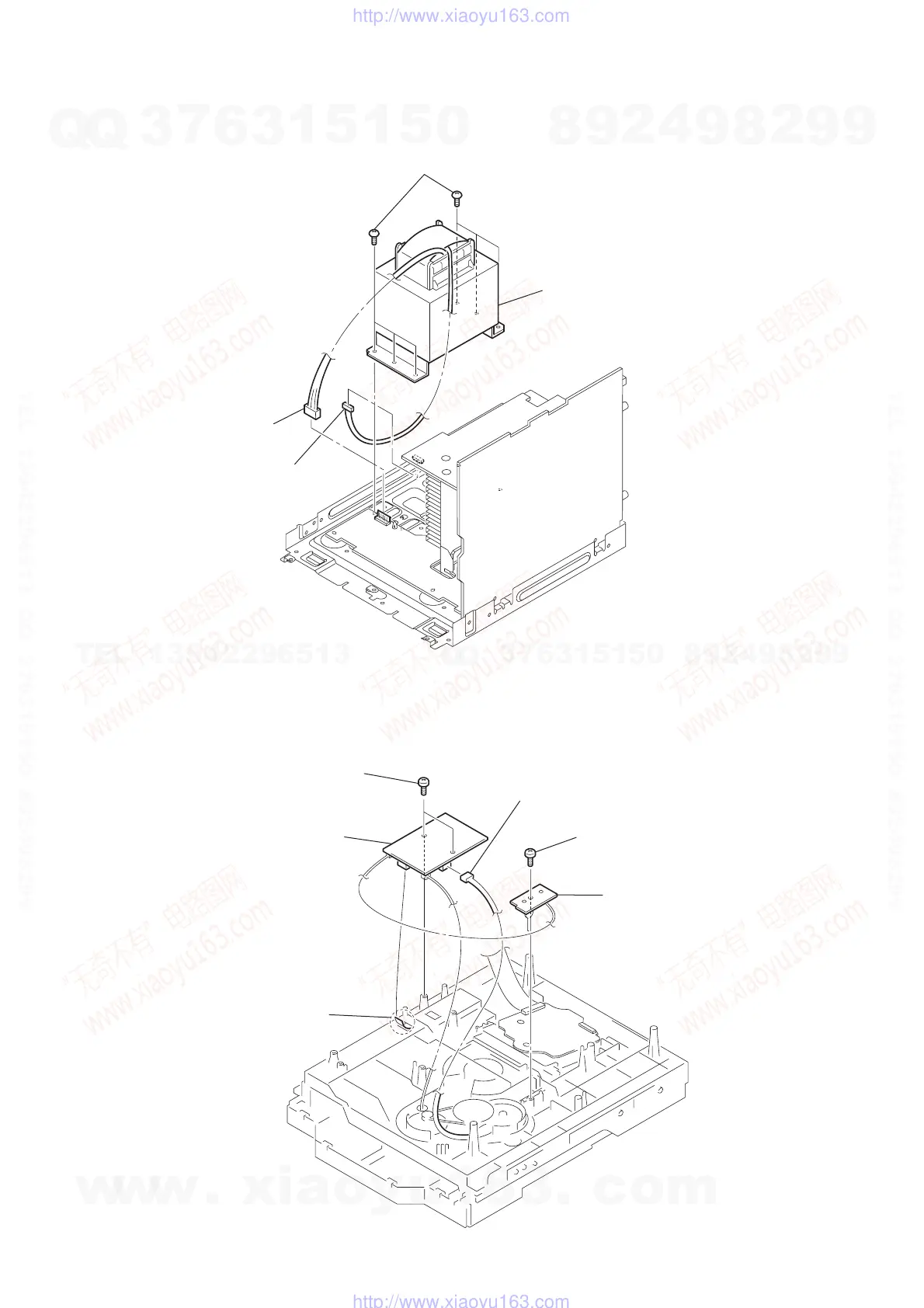

3-14. POWER TRANSFORMER
3-15. DRIVER BOARD, SW BOARD
1 connector
6p (CN604)
2 connector
4p (CN703)
3 six screws
(+BVTT 4
× 8 )
4 power transforme
r
3 connector
4p (CN703)
4 DRIVER board
6 SW board
2 wire (flat type) 5p (CN702)
1 two screws
(+BTTP (M2.6))
5 screw
(+BTTP (M2.6))
