59
HCD-GN660/GN770/GX9000

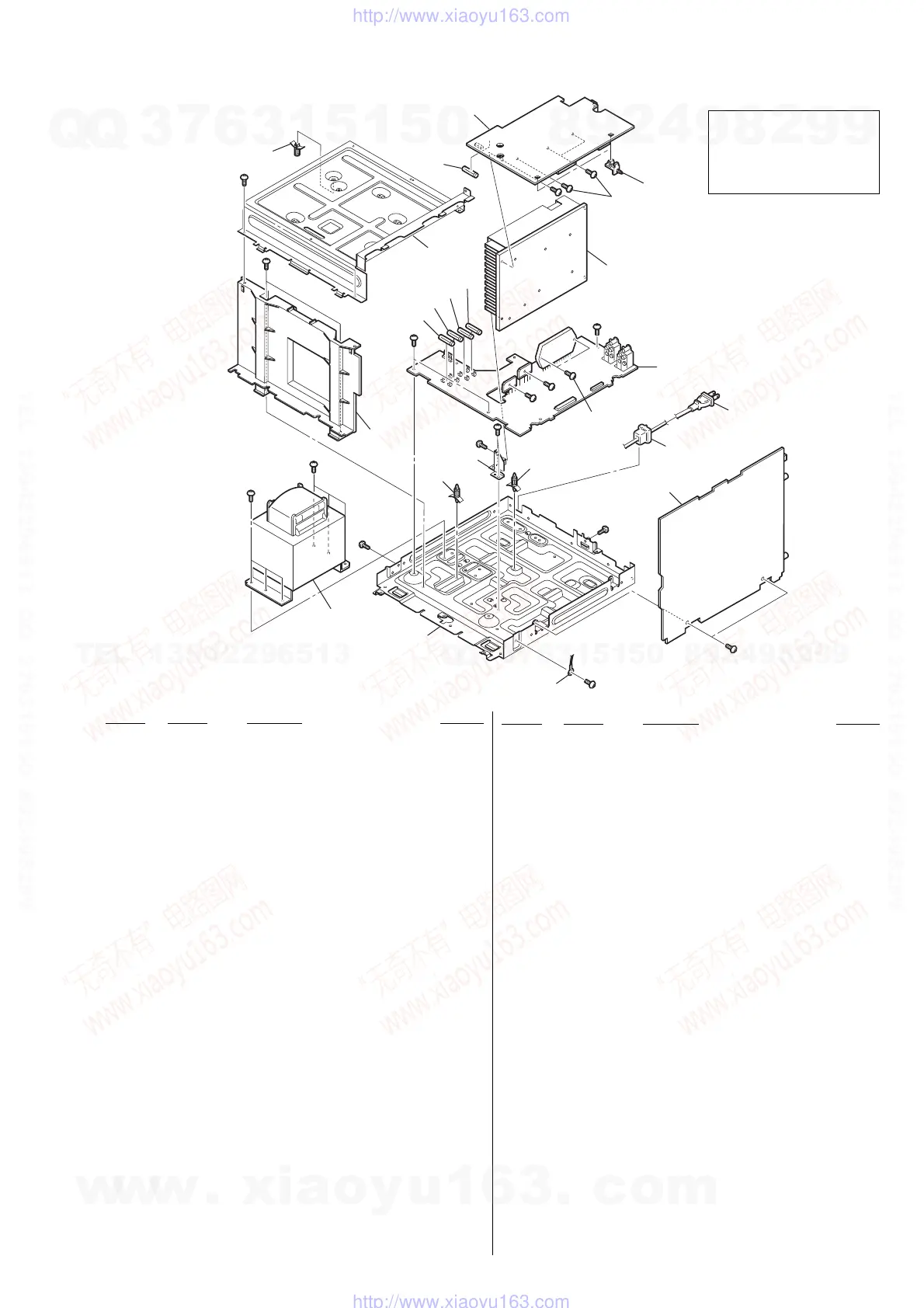

8-3. CHASSIS SECTION
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
102
102
107
107
#1
#1
103
104
105
106
101
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
F698
T601
F699
F697
F760
F696
#1
#1
#1
#3
#1
#2
#1
#2
#2
#3
#1
#1
not
supplied
#1
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
101 A-1053-545-A SURROUND BOARD, COMPLETE
(MX, AR, AUS, US)
101 A-4750-965-A SURROUND BOARD, COMPLETE (E2, E3, E51)
102 3-905-609-31 SCREW (TRANSISTOR)
103 A-1055-241-A PA BOARD, COMPLETE (GN660: E3)
103 A-1055-312-A PA BOARD, COMPLETE (GN770: E3/GX9000)
103 A-4750-963-A PA BOARD, COMPLETE
(GN660: E2, E51, MX, AR)
103 A-4750-994-A PA BOARD, COMPLETE (GN770: E2, E51, MX)
103 A-4753-166-A PA BOARD, COMPLETE (AUS)
0104 1-777-071-53 CORD, POWER (E51)
0104 1-783-820-11 CORD, POWER (GX9000)
0104 1-783-941-12 CORD, POWER (AR)
0104 1-827-226-11 CORD, POWER (E2, E3, MX)
0104 1-827-295-22 CORD, POWER (AUS)
* 105 3-703-244-00 BUSHING (2104), CORD (E51, AR, AUS, US)
105 3-703-571-11 BUSHING (S) (4516), CORD (E2, E3, MX)
106 A-4750-981-A MAIN BOARD, COMPLETE (GN660: E2)
106 A-4750-989-A MAIN BOARD, COMPLETE (GN770: E2)
106 A-4750-999-A MAIN BOARD, COMPLETE (GX9000)
106 A-4753-110-A MAIN BOARD, COMPLETE (GN660: E3)
106 A-4753-116-A MAIN BOARD, COMPLETE (GN660: E51)
106 A-4753-120-A MAIN BOARD, COMPLETE (GN660: MX)
106 A-4753-123-A MAIN BOARD, COMPLETE (GN660: AR)
106 A-4753-126-A MAIN BOARD, COMPLETE (GN770: E3)
106 A-4753-129-A MAIN BOARD, COMPLETE (GN770: AUS)
106 A-4753-133-A MAIN BOARD, COMPLETE (GN770: E51)
106 A-4753-139-A MAIN BOARD, COMPLETE (GN770: MX)
107 4-924-098-01 HOLDER, PC BOARD
0F696 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V)(GX9000)
0F696 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8.0AL/250V)
(GN660/GN770)
0F697 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (8A/125V)(GX9000)
0F697 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8.0AL/250V)
(GN660/GN770)
0F698 1-533-454-12 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V)
(GX9000)
0F698 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
(GN660/GN770)
0F699 1-533-454-12 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V)
(GX9000)
0F699 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
(GN660/GN770)
0F760 1-533-451-12 FUSE, GLASS TUBE (DIA. 5) (3.15A/125V)
(GX9000)
0F760 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15AL/250V)
(GN660/GN770)
0T601 1-443-200-11 POWER TRANSFORMER
(GN660: E2, E3, E51, AR)
0T601 1-443-200-21 POWER TRANSFORMER (GN660: MX)
0T601 1-443-201-11 POWER TRANSFORMER
(GN770: E2, E3, E51, AUS)
0T601 1-443-201-21 POWER TRANSFORMER (GN770: MX)
0T601 1-443-301-11 POWER TRANSFORMER (GX9000)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
