HCD-GN660/GN770/GX9000
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 8
EXPLODED VIEWS

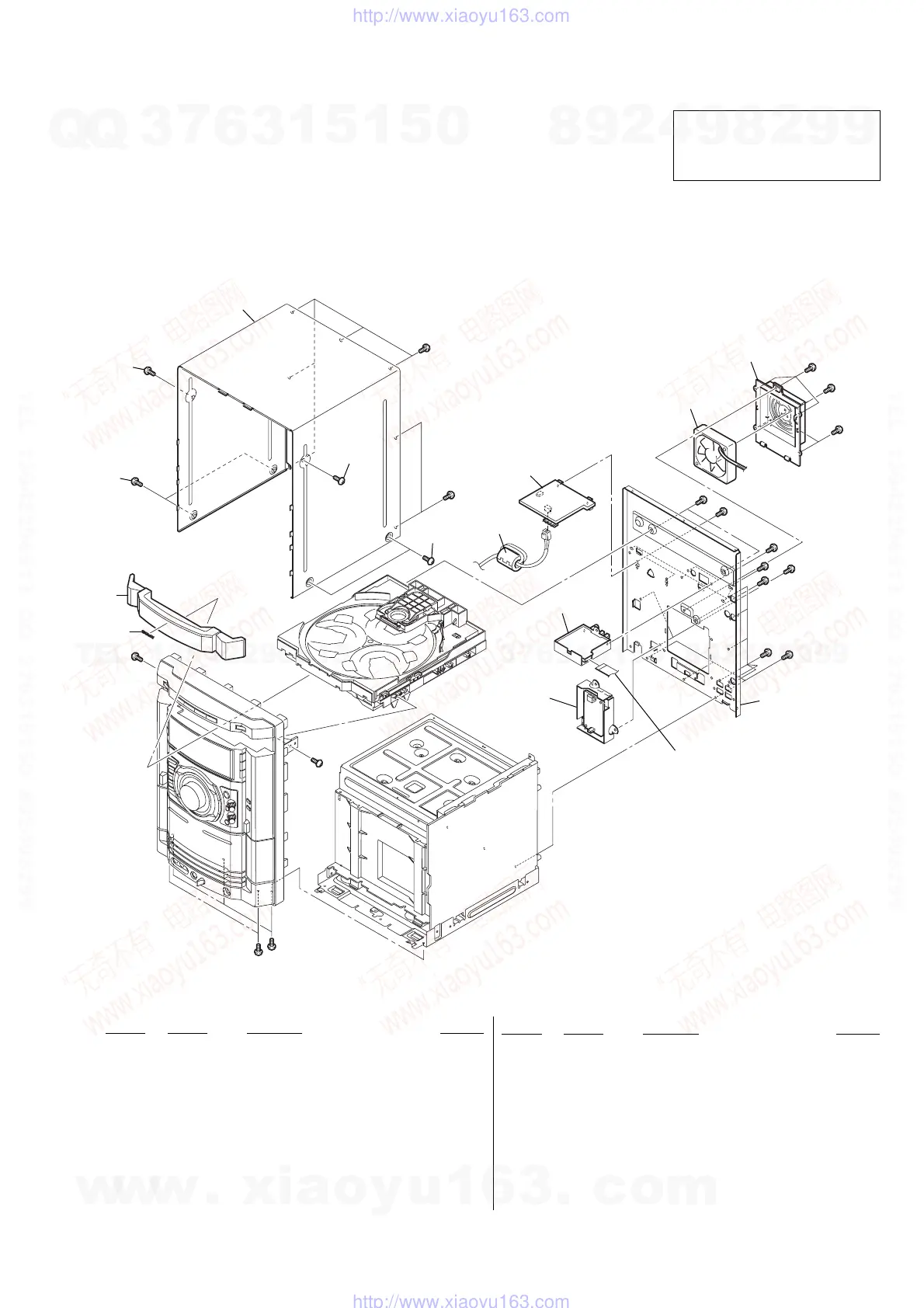

8-1. CASE, REAR PANEL SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of this parts list.
• Abbreviation
AUS : Australian model
E2 : 120V AC Area in E model
E3 : 240V AC Area in E model
E51 : Chilean and Peruvian model
MX : Mexican model
AR : Argentine model
The components identified by mark 0 or
dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
1
not
supplied
not
supplied
not
supplied
2
3
3
9
9
4
5
6
7
8
#1
#1
#1
#1
#2
#1
#1
#2
#2
#2
#2
#2
M891
#2
#2
#2
#1
#1
1 X-4956-202-1 LOADING PANEL ASSY (GN660)
1 X-4956-226-1 LOADING PANEL ASSY (GN770)
1 X-4956-229-1 LOADING PANEL ASSY (GX9000)
2 4-963-404-21 EMBLEM (5-A), SONY
3 3-363-099-02 SCREW (CASE 3 TP2)(M3X8)
4 4-231-828-71 CASE
5 A-4750-964-A PRIMARY BOARD, COMPLETE (E2, E3, E51)
5 A-4750-997-A PRIMARY BOARD, COMPLETE (GX9000)
5 A-4753-137-A PRIMARY BOARD, COMPLETE (MX)
5 A-4753-146-A PRIMARY BOARD, COMPLETE (AR, AUS)
6 1-500-497-11 FILTER, CLAMP (FERRITE CORE)
7 1-693-603-11 TUNER (FM/AM) (GN660/GN770)
7 1-693-623-11 TUNER (FM/AM) (GX9000)
08 1-468-737-21 POWER, SWITCHING
9 3-363-099-32 SCREW (CASE 3 TP2)(M3X12)
M891 1-787-099-21 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
