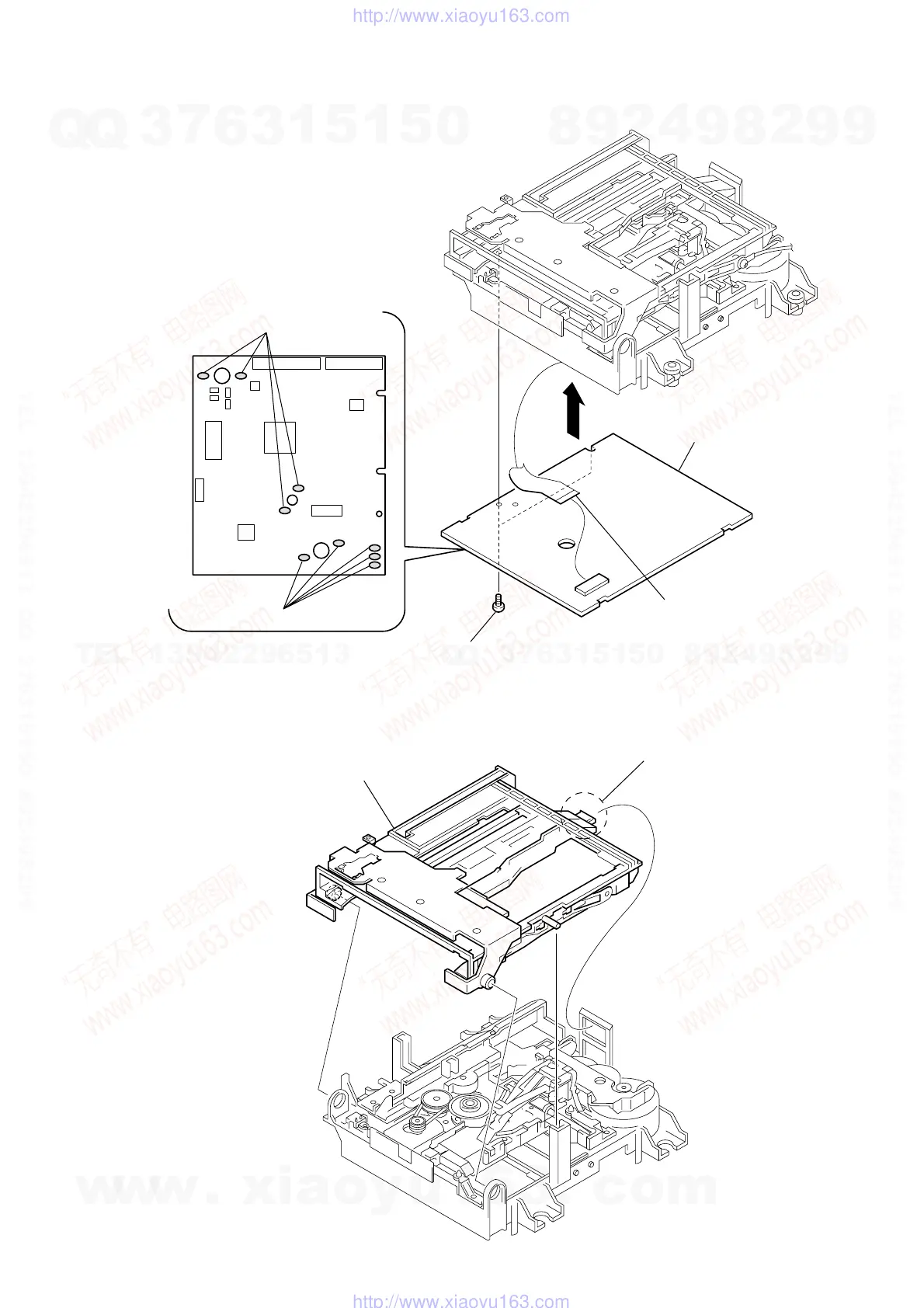

BD (MD) BOARD
HOLDER ASSY
1
Remove the solder (four portions).
1
Remove the solder (five portions).
2
two screws (BTP2
×
6)
4
flexible board (CN101)
5
BD (MD) board
3
2
holder assy
1
claw
w
w
