Sony HCD-PX5 - Page 29

29

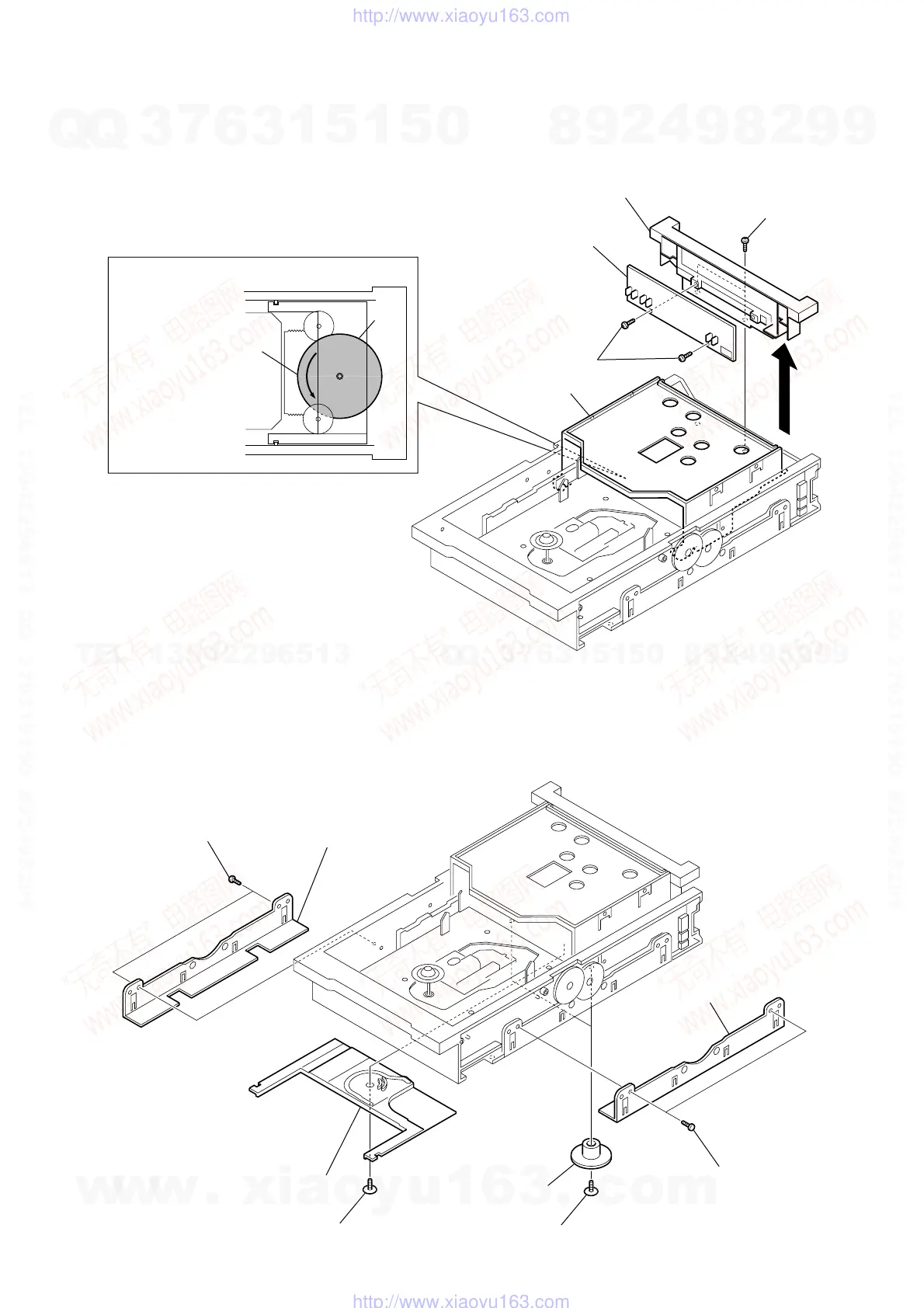

TRAY SENSOR BOARD
SLIDER (LOADING), GEAR (SLIDER)
2 two screws (BTTP M2.6
)
4 two screws (BTTP M2.6)
5 TRAY SENSOR board
1 Rotate the cam,
and lift up the stocker
at the full.
stocker
6 HOLDER (SENSOR)
3
cam
6 slider (LOADING)
2 bracket (retainer)
1 two screws (BTTP M2.6
)
4 bracket (retainer)
3 two screws (BTTP M2.6)
8 two gears (SLIDER)
7 two floating screws
5 floating screw
