HCD-VX555/VX555J

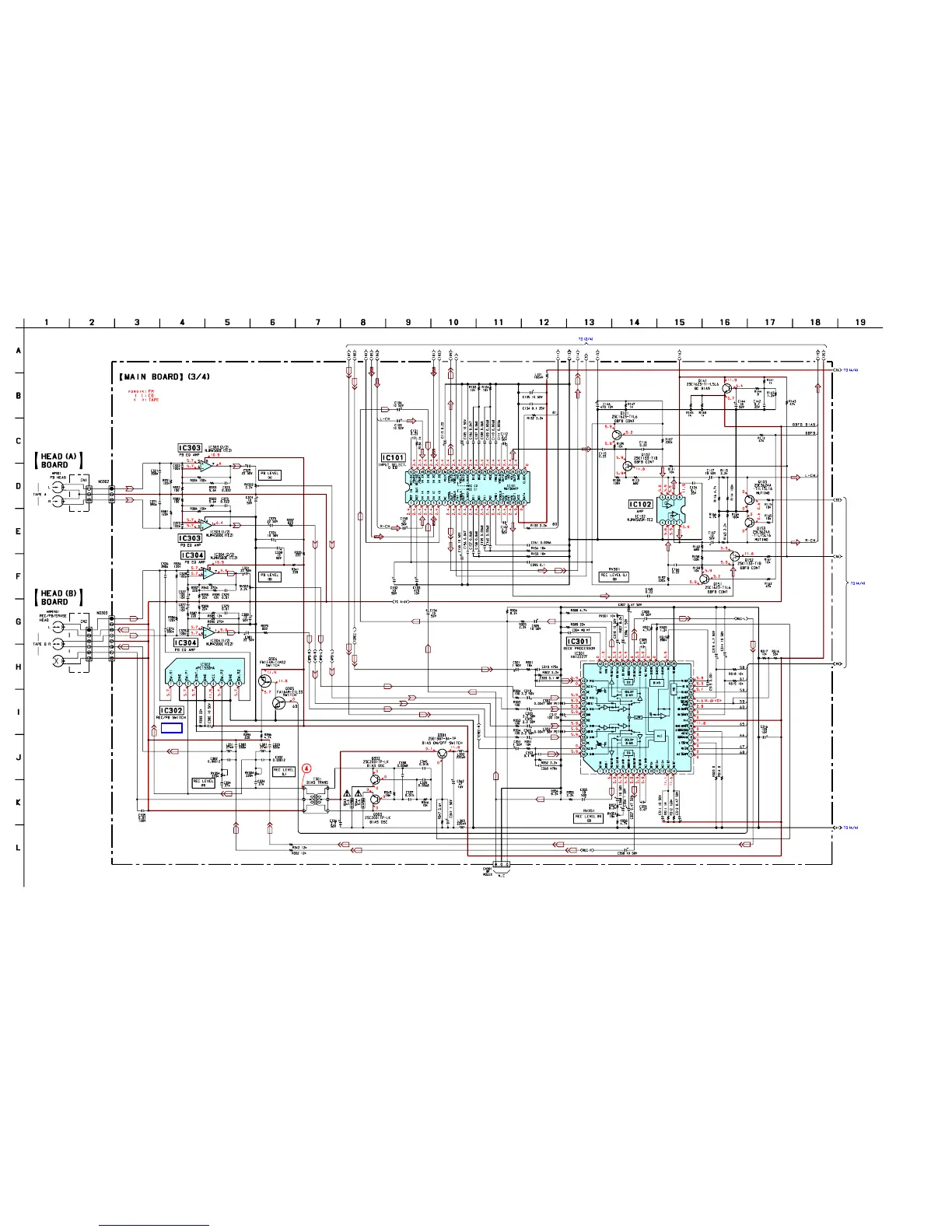

6-6. SCHEMATIC DIAGRAM – MAIN SECTION (3/4) –
• See page 58 for IC Block Diagrams. • See page 40 for Printed Wiring Board of HEAD boards.
