Sony HCD-VX555 - CD Mechanism Deck Section (CDM58 E-30 BD61 A)

67
HCD-VX555/VX555J
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

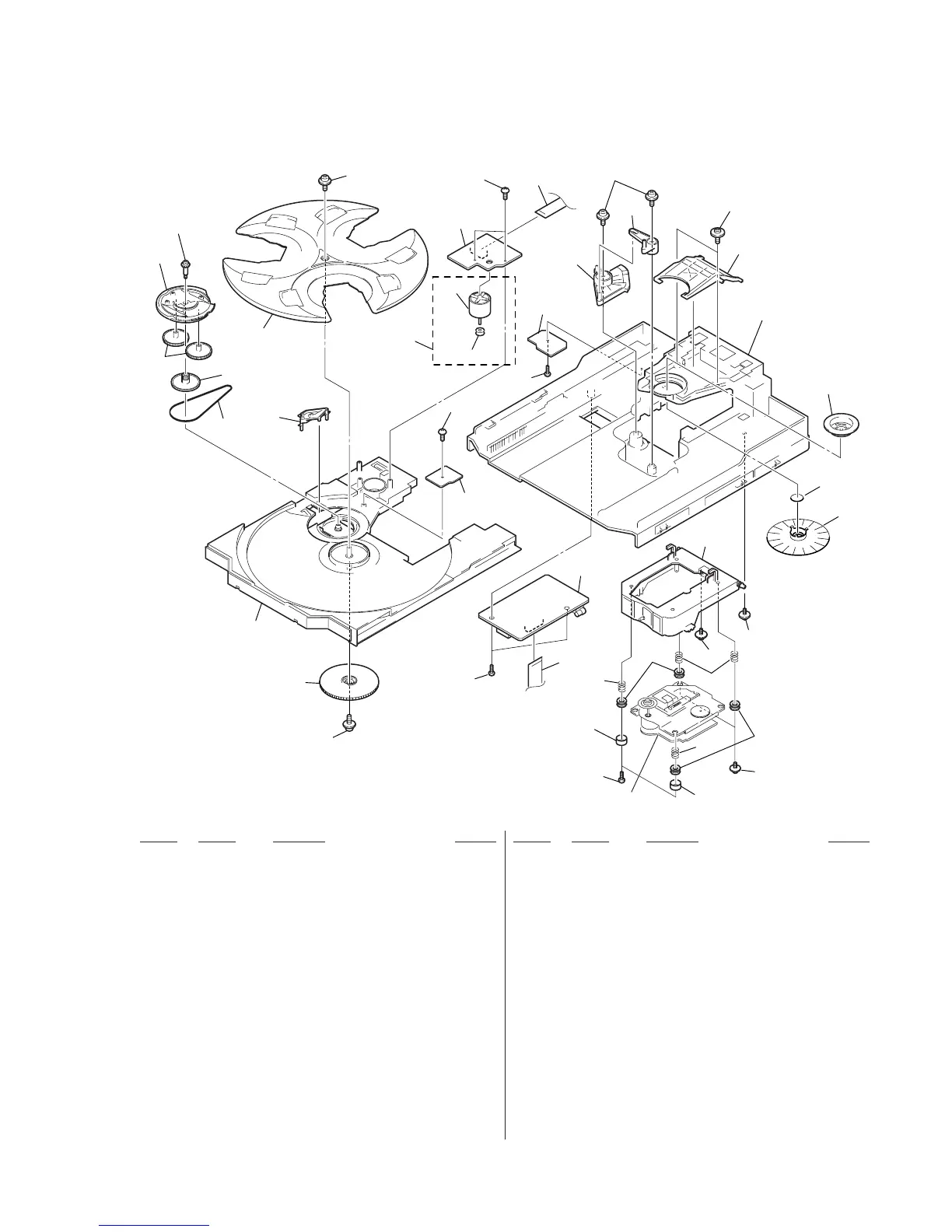

7-8. CD MECHANISM DECK SECTION
(CDM58E-30BD61A)
not supplied
not supplied
BU-30BD61A
351
352
353
354
355
356
374
375
376
369
359
358
358
358
357
362
361
363
351
364
371
365
368
379
371
384
367
385
386
387
360
366
371
370
370
370
383
383
358
358
M721
382
384
351 4-933-134-11 SCREW (+PTPWH M2.6X8)
352 4-221-679-01 CAM (RELAY)
353 4-231-452-01 TABLE (NEW)
354 4-221-686-01 LEVER (CHANGE)
355 4-221-676-01 TRAY
356 4-933-134-51 SCREW (+PTPWH 2.6X8)
357 1-675-910-11 MOTOR BOARD
358 4-951-620-01 SCREW (2.6X8), +BVTP
359 1-791-983-11 WIRE (FLAT TYPE) (8 CORE)
360 1-675-911-11 ADDRESS SENSOR BOARD
361 1-675-912-11 DRIVER BOARD
362 X-4952-608-1 CAM (U/D) ASSY
363 4-221-681-01 LEVER (EX)
364 4-221-682-01 LEVER (LIFTER)
365 4-231-513-01 PULLEY (B) (BU-30), CHUCKING
366 4-228-414-01 BRACKET (YOKE)
367 X-4953-307-1 PULLEY (A) ASSY, CHUCKING
368 X-4953-306-1 HOLDER (BU) (BU-30) ASSY
369 4-222-095-01 BELT
370 4-227-045-11 SPRING (INSULATOR), COIL
371 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
374 4-221-678-01 CAM (CONTROL)
375 4-221-683-01 GEAR (U)
376 4-221-685-01 PULLEY (S)
379 4-227-899-01 SCREW (DIA. 12), FROATING
382 4-222-097-01 SCREW, STEP
383 4-231-451-01 INSULATOR (BU-30)
384 4-231-151-01 STOPPER (BU)
385 A-4672-826-A MOTOR ASSY
386 A-4725-689-A VIDEO BOARD, COMPLETE
387 1-757-421-11 WIRE (FLAT TYPE) (25 CORE)
M721 1-541-632-11 MOTOR, DC
