HCD-VX555/VX555J

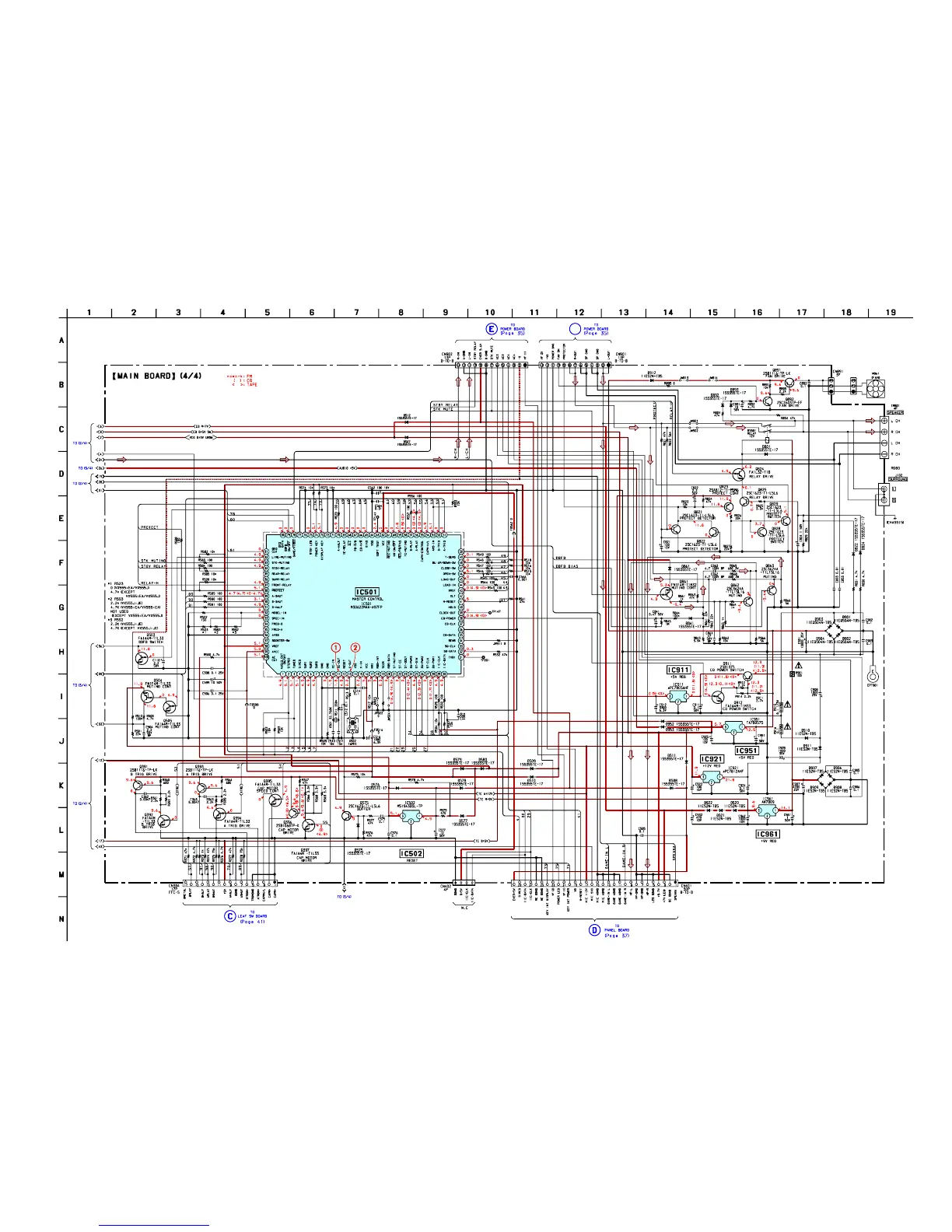

6-7. SCHEMATIC DIAGRAM – MAIN SECTION (4/4) –
• See page 23 for Wavefoms. • See page 51 for IC Pin Function Description.
