Sony HCD-VX555 - Main Board Section

62
HCD-VX555/VX555J

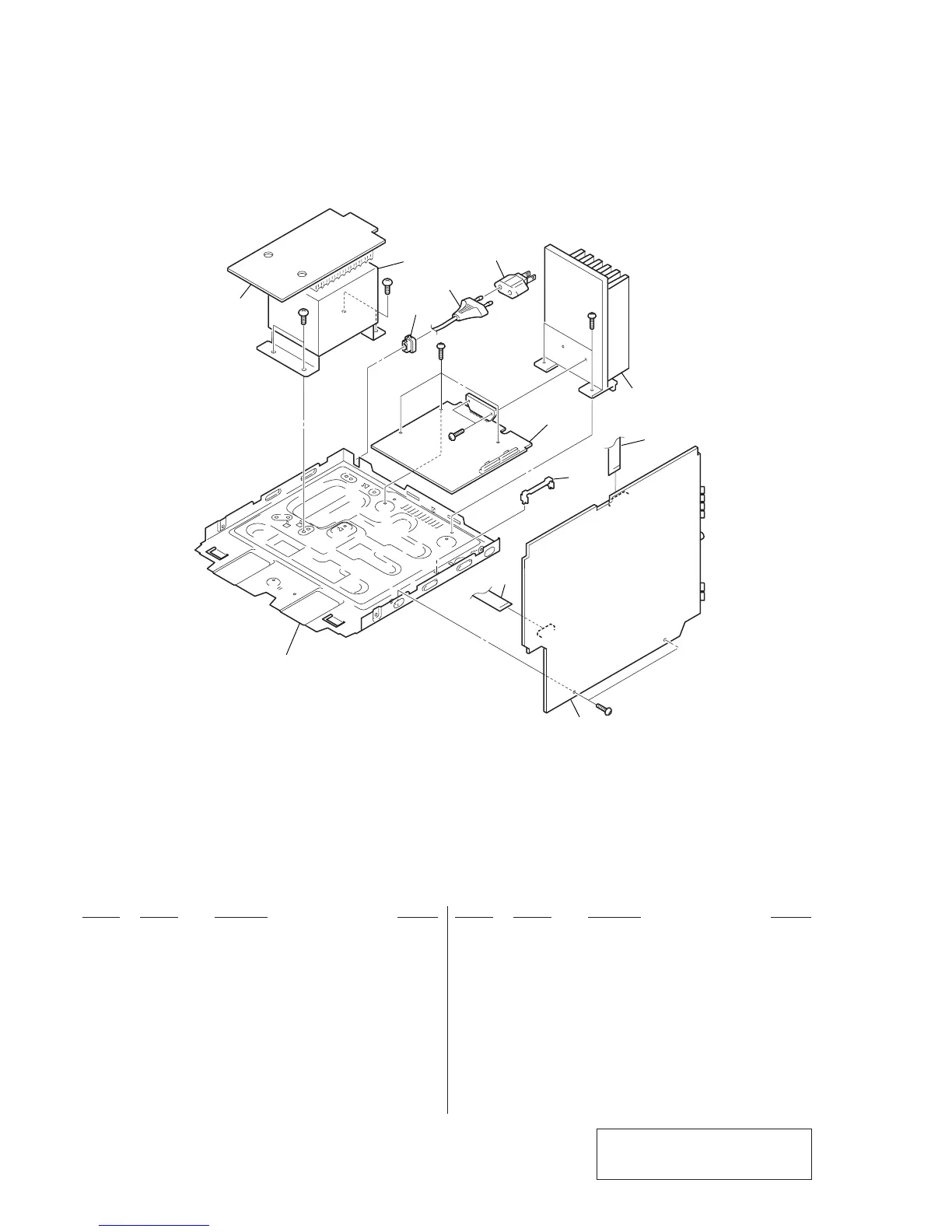

7-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
#2
#3
#4
#6
#3
#6
103
107
106
101
102
104
T910
not supplied
not supplied
109
110
108
101 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
102 A-2007-978-A MAIN BOARD, COMPLETE (VX555:EA)
102 A-2007-997-A MAIN BOARD, COMPLETE (VX555:IA)
102 A-4476-108-A MAIN BOARD, COMPLETE (VX555:E,MY,SP)
102 A-4476-608-A MAIN BOARD, COMPLETE (VX555J:EA)
102 A-4476-638-A MAIN BOARD, COMPLETE (VX555:TH)
102 A-4726-174-A MAIN BOARD, COMPLETE (VX555J:JE)
* 103 4-988-533-01 HOLDER, PWB
104 1-690-589-31 WIRE (FLAT TYPE) (13 CORE)
106 3-703-571-11 BUSHING (S) (4516), CORD
(VX555:E,TH/VX555J:JE)
106 4-966-266-01 BUSHING (S) (FBS002), CORD (VX555:IA)
* 106 3-703-244-00 BUSHING (2104), CORD
(VX555:EA,MY,SP/VX555J:EA)
107 A-4475-781-A POWER BOARD, COMPLETE
(EXCEPT VX555:TH/VX555J)
107 A-4476-600-A POWER BOARD, COMPLETE (VX555J)
107 A-4476-630-A POWER BOARD, COMPLETE (VX555:TH)
0 108 1-575-653-11 CORD, POWER (VX555J:JE)
0 108 1-777-071-51 CORD, POWER (EXCEPT VX555J:JE)
109 1-569-008-21 ADAPTOR, CONVERSION
110 1-680-265-11 MAIN TRANS BOARD
0 T910 1-435-861-11 TRANSFORMER, POWER
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
