Sony HCD-VX555 - Printed Wiring Board AMP Section

3434
HCD-VX555/VX555J

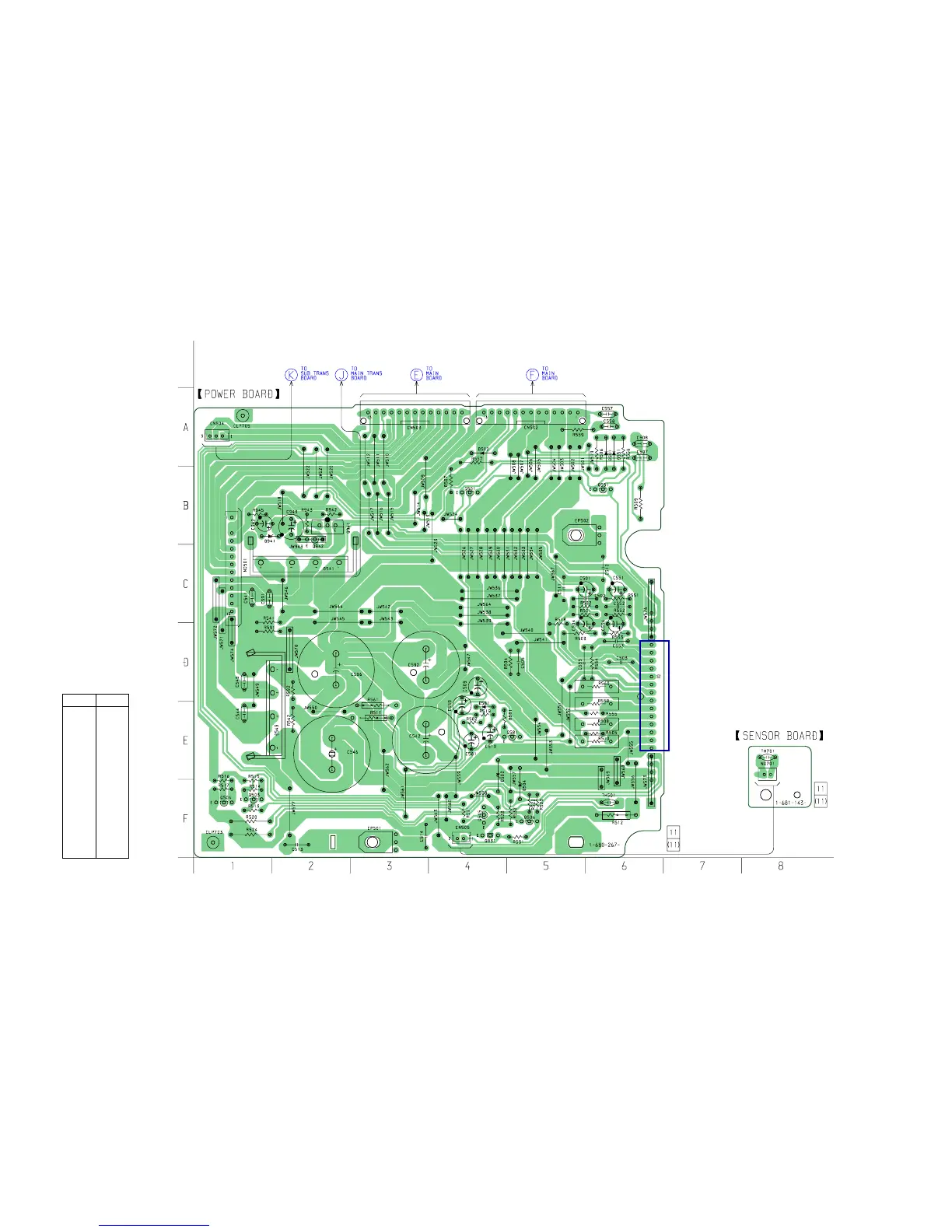

6-10. PRINTED WIRING BOARD – AMP SECTION –
(Page 27)(Page 27)(Page 48)(Page 48)
IC501
15 14
Ref. No. Location
D501 A-6
D502 A-4
D543 E-2
D551 A-6
D581 E-4
D941 B-2
IC501 D-6
Q501 B-4
Q503 F-1
Q504 F-1
Q505 F-4
Q506 F-5
Q551 B-6
Q581 E-5
Q831 F-4
Q941 B-2
• Semiconductor
Location
• See page 22 for Circuit Boards Location.
