Sony HCD-VX555 - Printed Wiring Board BD Section

3232
HCD-VX555/VX555J

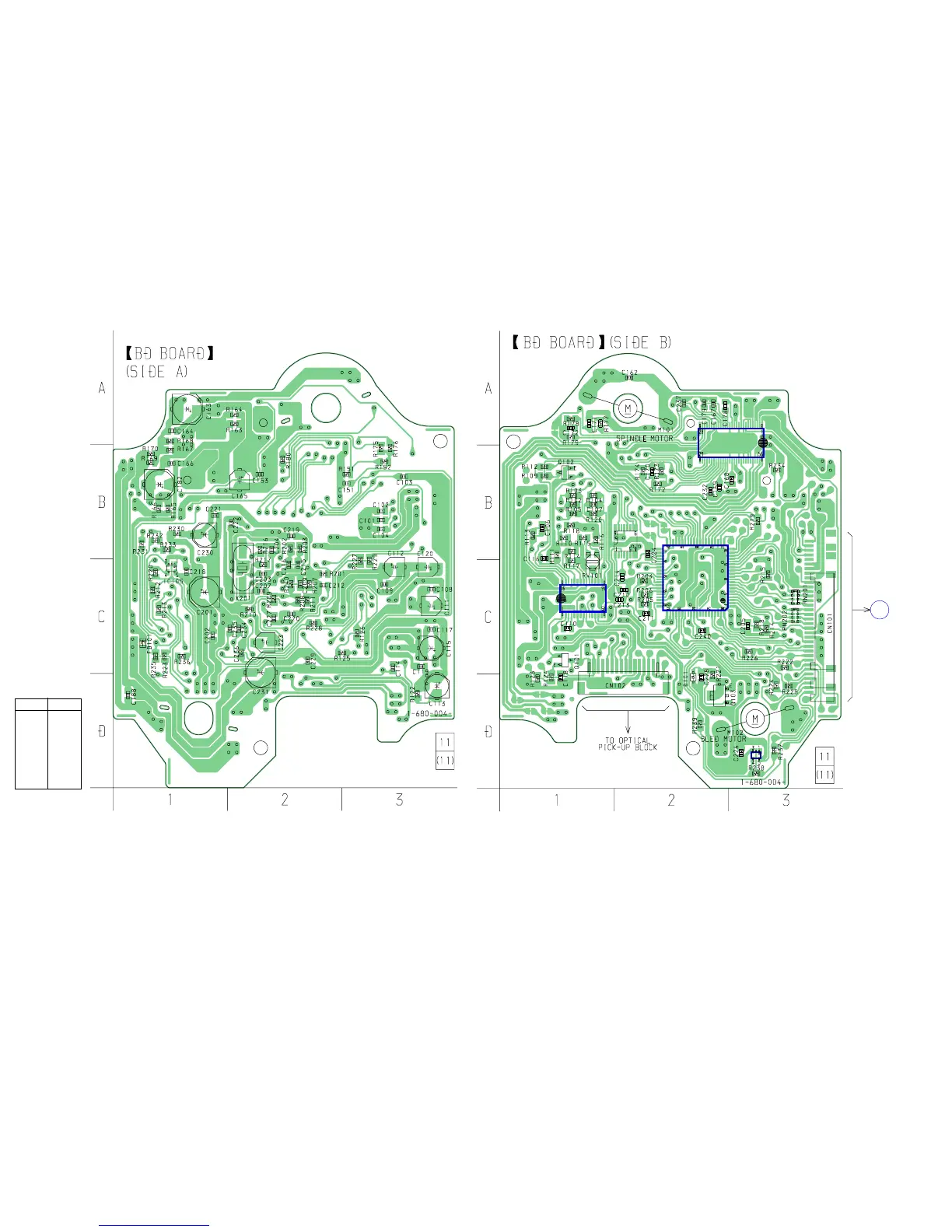

6-8. PRINTED WIRING BOARD – BD SECTION –
IC101
IC104
IC103
IC106
IC102
TO
VIDE0
BOARD
(Page 44)
(A-MAX.3)
25
N
Ref. No. Location
D101 D-2
IC101 C-2
IC102 A-3
IC103 C-1
IC106 D-3
Q101 C-1
Q103 D-3
• Semiconductor
Location
• See page 22 for Circuit Boards Location.
