HCD-VX555/VX555J

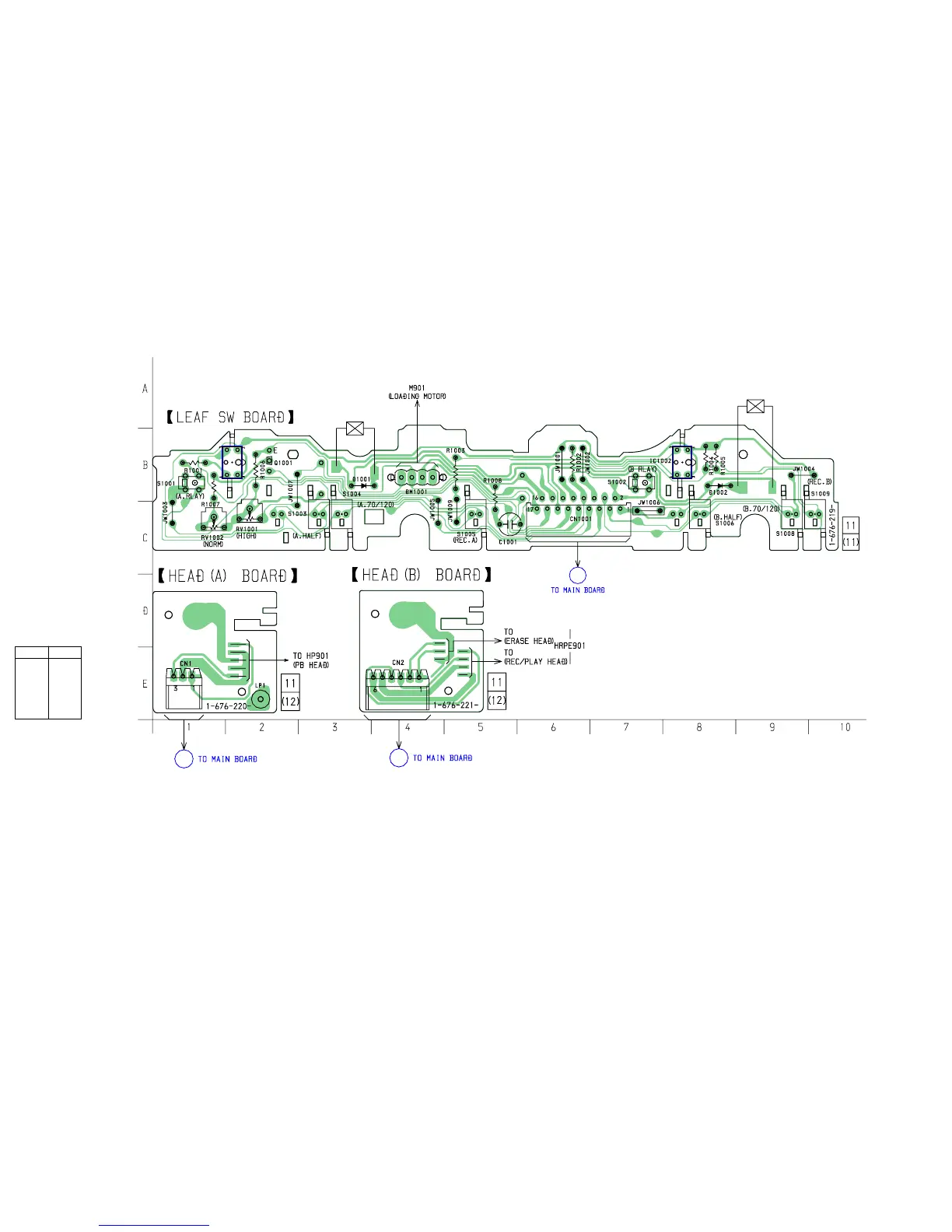

6-16. PRINTED WIRING BOARD – LEAF SW SECTION –
C
M
L
(Page 27)
(Page 27)
(Page 27)
IC1001
IC1002
PM901
PM902
Ref. No. Location
D1001 B-4
D1002 B-8
IC1001 B-2
IC1002 B-8
Q1001 B-2
• Semiconductor
Location
• See page 22 for Circuit Boards Location.
